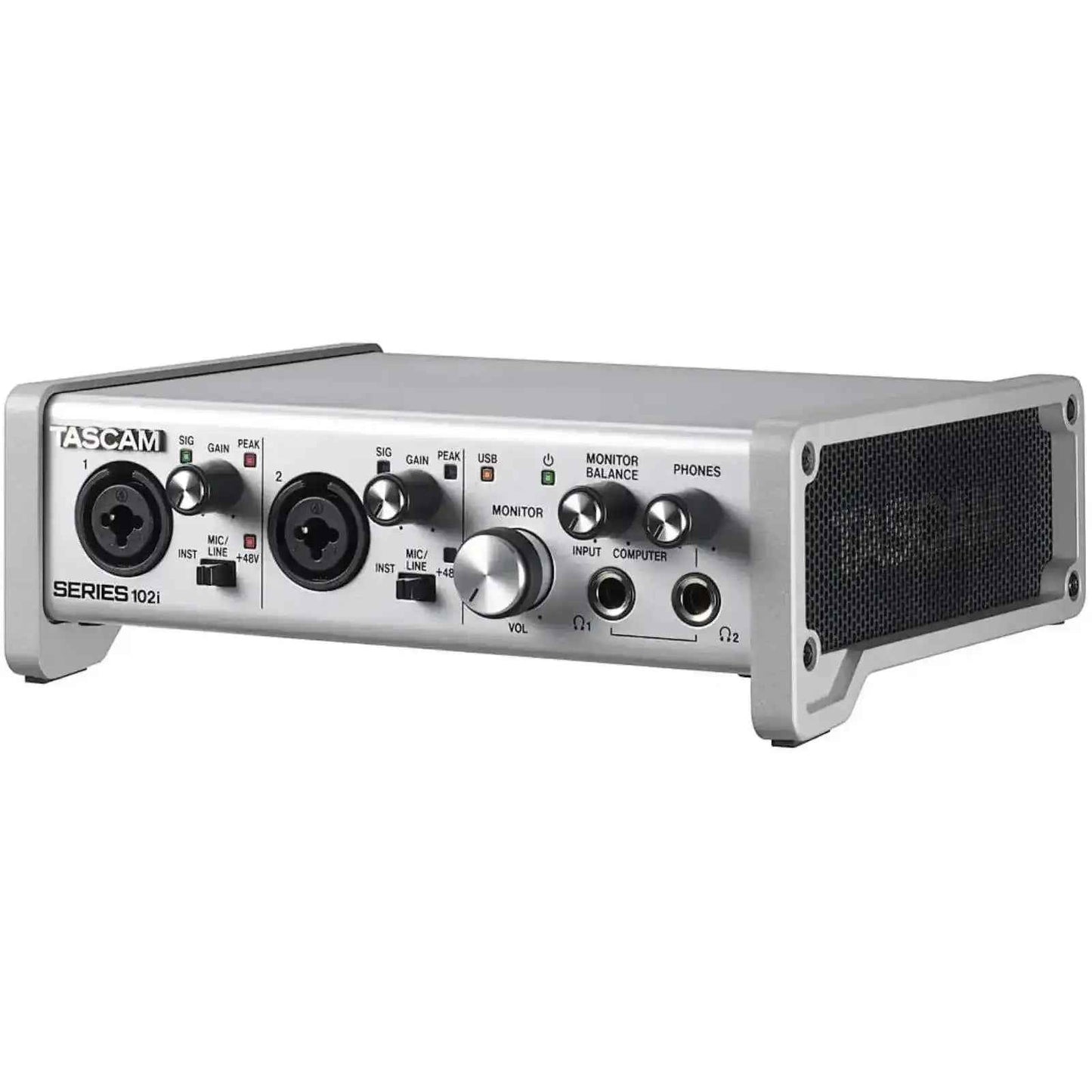

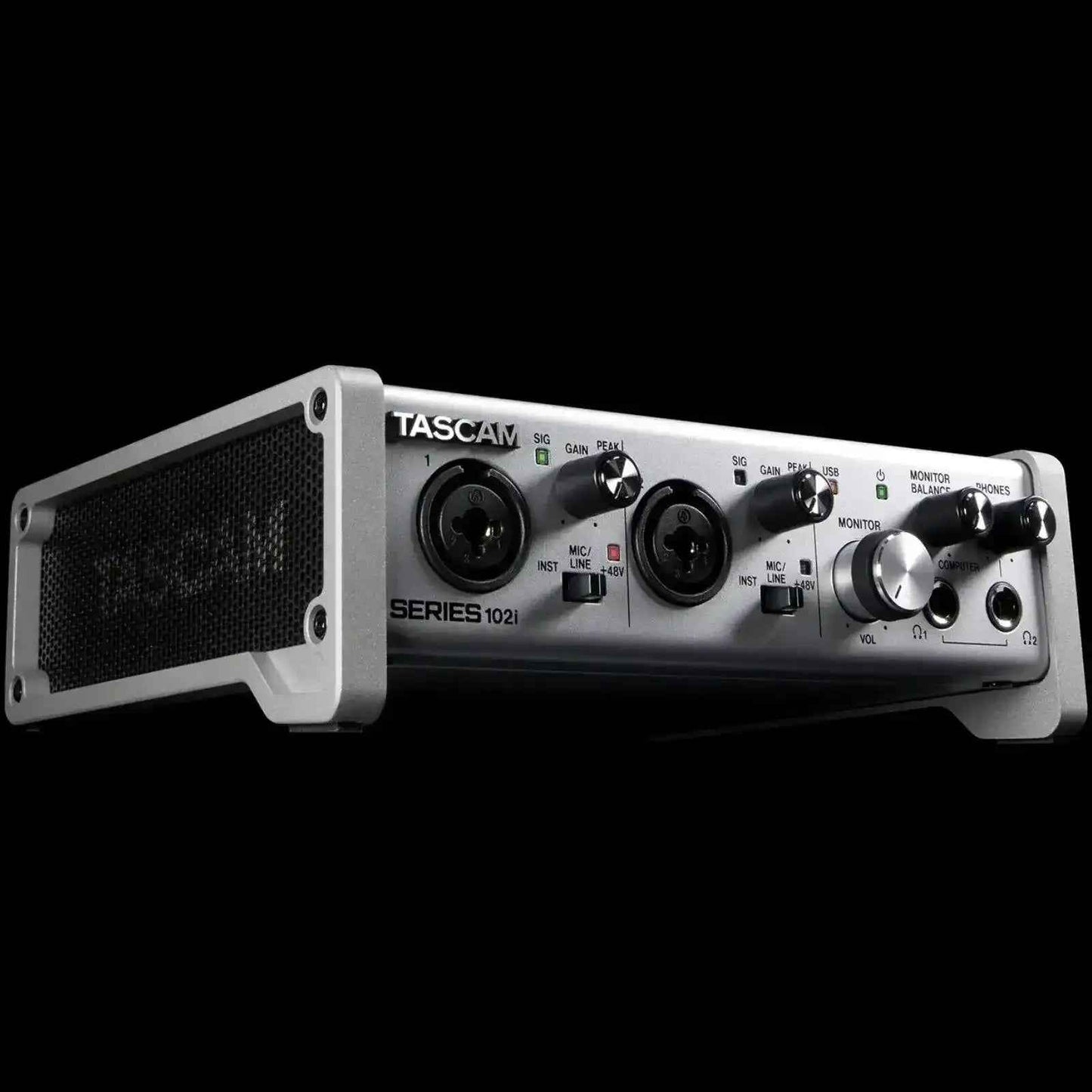

Tascam SERIES 102i USB Audio / MIDI Interface

$464.00 AUD
Tax included.
Shipping calculated at checkout.
In stock!
Spend $100.00 to FREE SHIPPING

Item specifics

Basic Info Type Audio/MIDI Interface
Brand Name  Tascam
Model Name SERIES 102i


Body Dimensions 186 mm × 65 mm × 160 mm
1.1 kg


General Sampling Frequency 44.1k / 48k / 88.2k / 96k / 176.4k / 192k Hz
Bit Rate
16 / 24-bit


Analog Audio Inputs
MIC IN Connector XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD)
Input Impedance 1.5kΩ
Nominal Input GAIN: MAX -64dBu (0.0005Vrms)
GAIN: MIN -6dBu (0.388Vrms)
Max. Input +10dBu (2.45Vrms)
Gain Range 58dB


Instrument IN Connector 1/4" (6.3mm) TS jack (Tip: HOT, Sleeve: GND)
Input Impedance 1MΩ or more
Nominal Input GAIN: MAX -64dBu (0.0006Vrms)
GAIN: MIN -6dBu (0.501Vrms)
Max. Input +10dBV (3.162Vrms)
Gain Range 58dB


LINE IN Connector 1/4" (6.3mm) TRS jack (Tip: HOT, Ring: COLD, Sleeve: GND)
Input Impedance 10kΩ
Nominal Input GAIN: MAX -54dBu (0.0015Vrms)
GAIN: MIN +4dBu (1.228Vrms)
Max. Input +24dBu (12.282Vrms)
Gain Range 58dB

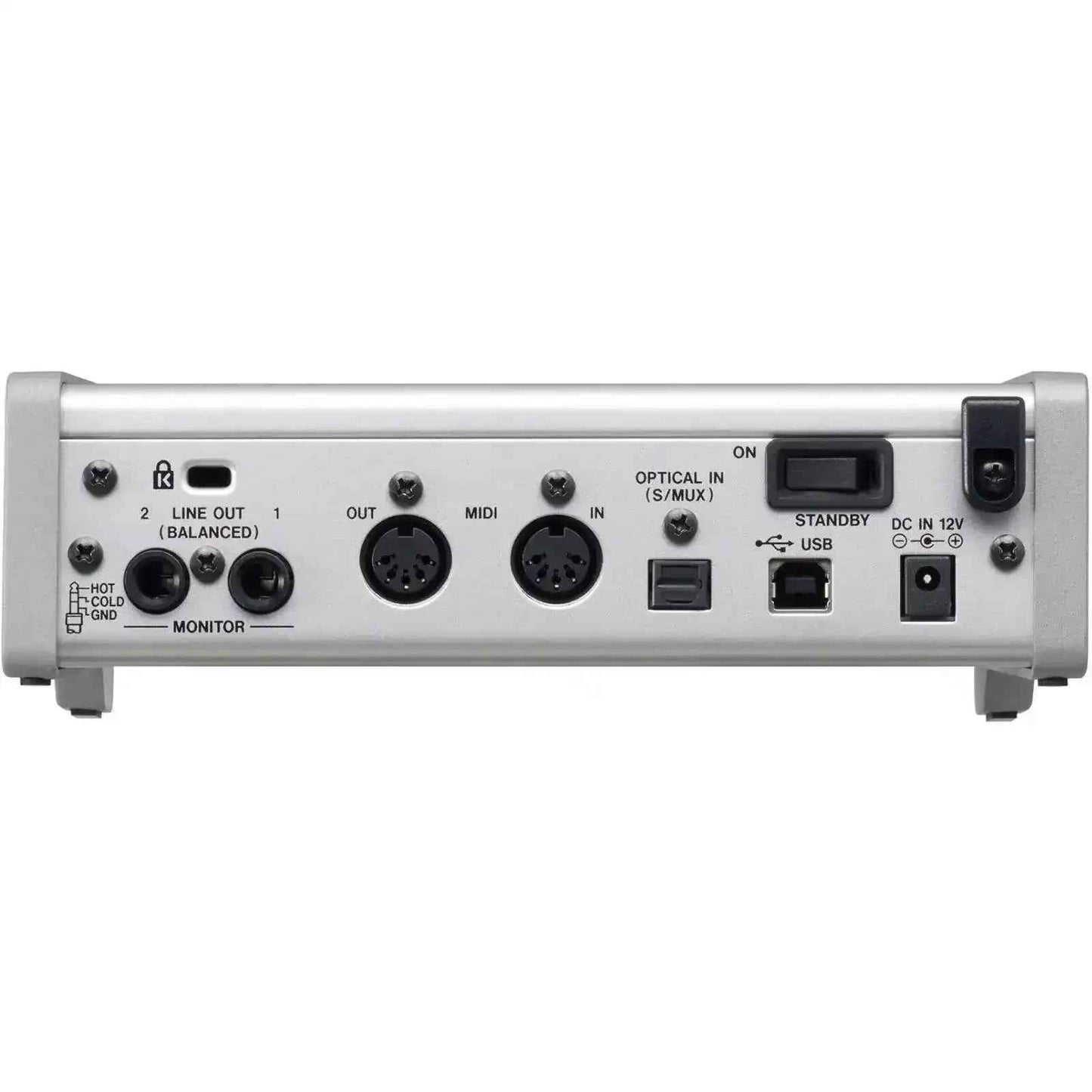

Optical Inputs Connector OPTICAL (JEITA RC-5720C)
Signal Format Multi-channel Optical Format
(Supports S/MUX at 88.2k/96k/176.4k/192kHz)


Monitor OUT Connector 1/4" (6.3mm) TRS jack (Tip: HOT, Ring: COLD, Sleeve: GND)
Output Impedance 230Ω
Nominal Output +4dBu (1.228Vrms)
Max. Output +20dBu (7.75Vrms)


Headphone Out Connector 1/4" (6.3mm) Stereo jack
Max. Output 18mW + 18mW (THD+N 0.1% or less, into 32Ω load)
Output impedance 83Ω
Working impedance 16Ω to 300Ω


Control Input/Output
USB Connector 4-pin, USB B type
Format USB2.0 HIGH SPEED (480Mbps)


MIDI IN Connector 5-pin, DIN
Format Standard MIDI


MIDI OUT Connector 5-pin, DIN
Format Standard MIDI


Others USB USB Type-C
Format USB2.0 HIGH SPEED mass storage class


Audio performance EIN ≤−129 dBu
S/N ratio 110 dB
Distortion 0,0016 %
Crosstalk ≥100 dB
Frequency Response At 44.1/48 kHz : 20 Hz – 20 kHz, +0/–0.4 dB (JEITA)
At 88.2/96 kHz : 20 Hz – 40 kHz, +0/–0.8 dB (JEITA)
At 176.4/192 kHz : 20 Hz – 80 kHz (JEITA)


Power Require DC 12V (AC Adapter PS-P1220E included)
Consumption 7.2 W


Temperature Operating Temp. 5 to 35°C

Product description

The Tascam SERIES 102i audio/MIDI interface is a compact yet powerful tool tailored for guitarists, songwriters, and small studio owners. With up to ten audio inputs and two outputs, it delivers exceptional audio performance at up to 192 kHz / 24 bit, ensuring pristine recordings and playback on Mac, Windows, or iOS devices.

  • Tascam Ultra-HDDA Mic Preamps: Equipped with transparent, low-noise Ultra-HDDA mic preamps, offering natural-sounding audio with ultra-low noise, ensuring crystal-clear recordings.

  • Expandable Input Capability: The interface allows for future growth with expandable input channels, accommodating external microphone preamplifiers via S/MUX optical inputs, ideal for recording drums, guitars, keyboards, and vocals.

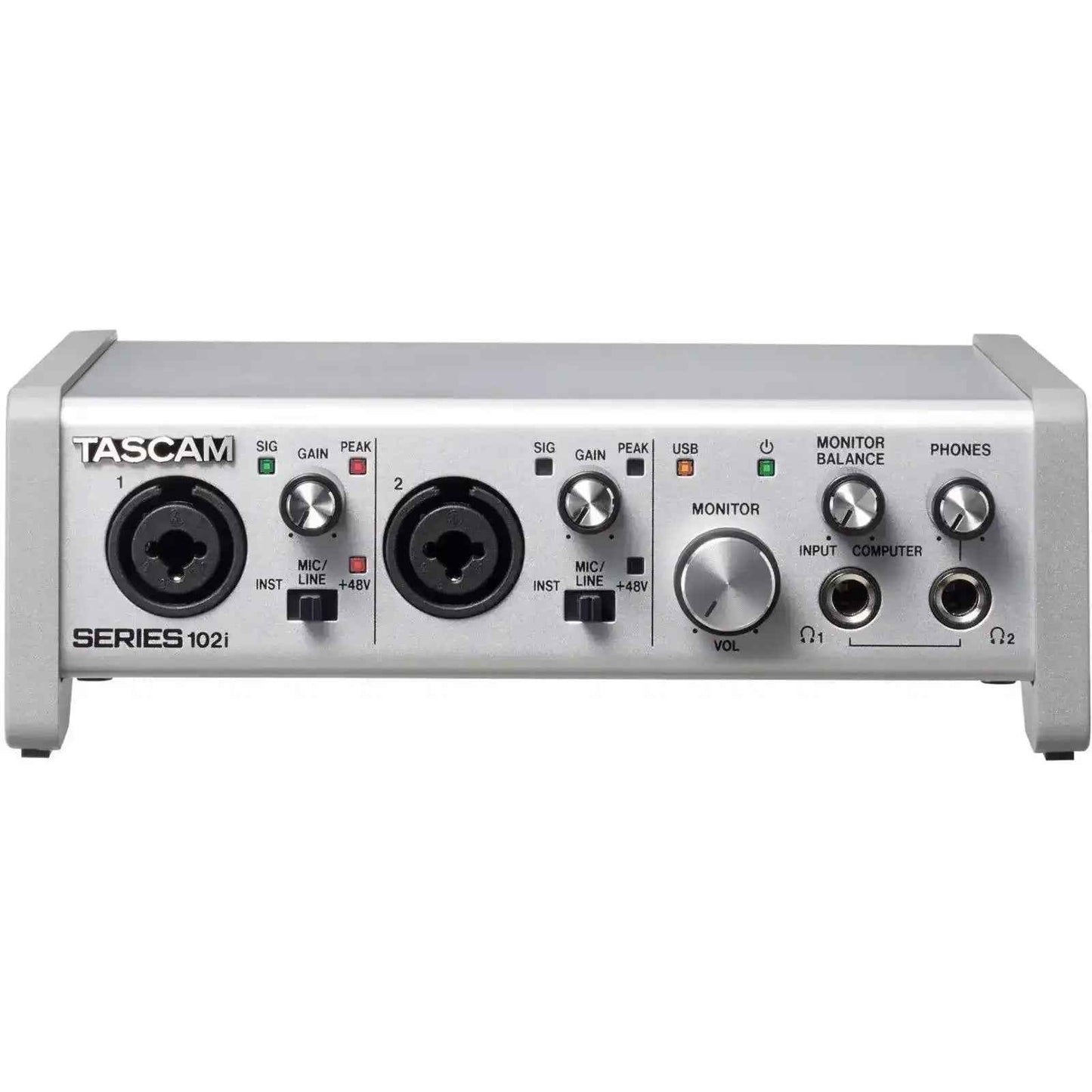

  • Well-Designed Interface: Featuring an angled tabletop design for easy access to controls, a large Monitor knob for quick adjustments, and a Monitor Balance control for zero-latency overdubs, ensuring efficient and intuitive operation.

  • Dual Headphone Monitoring: With two individual headphone amplifiers, the SERIES interface offers powerful dual headphone monitoring, perfect for collaborative recording sessions or individual monitoring needs.

  • Built-in DSP Effects and Processing: A DSP input and output mixer with digital reverb, compressor, phase invert, and 4-band EQ for each channel eliminates latency issues, optimizing computer performance for efficient audio processing.

The Tascam SERIES 102i audio/MIDI interface combines superior audio quality, expandable input capability, intuitive design, dual headphone monitoring, and built-in DSP effects and processing, making it an essential tool for musicians, songwriters, and small studio owners seeking professional-grade recordings and versatile audio production capabilities.
