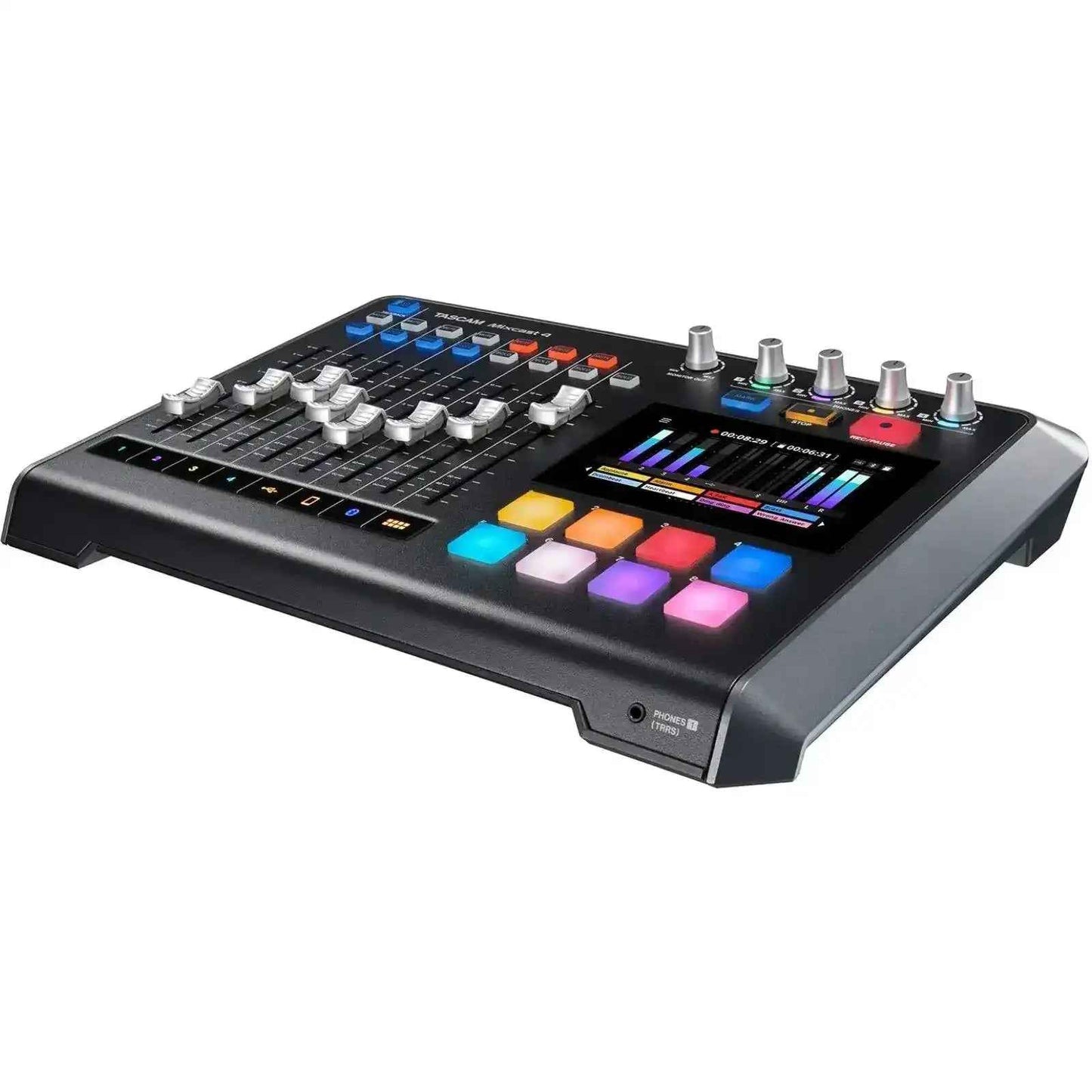

Tascam Mixcast 4 USB Audio Interface

$806.00 AUD
 per
Tax included.
Shipping calculated at checkout.
In stock!
Spend $100.00 to FREE SHIPPING

Tags: Import stock

Item specifics

Basic Info Type Audio Recorder
Brand Name  Tascam
Model Name Mixcast 4 USB Audio Interface



Body Dimensions 374.8× 56.5 × 263.6 mm (excluding protrusions)
374.8 × 71.2 × 266.7 mm (including protrusions)
Weight
2.55 kg



General Recording media SD cards (64 MB to 2 GB), SDHC cards (4 GB to 32 GB), SDXC cards (48 GB to 512 GB)
Format BWF: 48 kHz, 24 bit, 2 ch Stereo/14 ch Poly
Recordable Tracks 14 tracks (12 track + 2 mix)



 Jacks Connectors XLR/TRS combo jacks
Input Impedance 2.1 kΩ
Max. Input +10 dBu (when LEVEL at min.)
Min. Input -76.5 dBu (when LEVEL at max.)
Nominal Input -10 dBu (when LEVEL at min.)
XLR XLR-3-31 (1: GND, 2: HOT, 3: COLD)
TRS 6.3mm (1/4") standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
Gain Range 66.5 dB



Phones Connector 3.5 mm (1/8") 4-pole mini jack
Input Impedance 2 kΩ
Max. Input +4 dBV (when LEVEL at min.)
Min. Input -82.5 dBV (when LEVEL at max.)
Nominal Input -16 dBV (when LEVEL at min.)
Gain Range 66.5 dB



Line In Connector 3.5 mm (1/8") 4-pole mini jack
Input impedance 12 kΩ
Max. input +8 dBV
Nominal Input 12 dBV



Line Out Connector 3.5 mm (1/8") 4-pole mini jack
Output Impedance 100 Ω
Max. Output -25 dBu
Nominal Output -45 dBu



Line In L/R Connector 6.3mm (1/4") standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
Input Impedance 11 kΩ
Max. Input +24 dBu
Nominal Input +4 dBu



Line Out L/R Connector 3.5mm (1/8") stereo mini jack
Output impedance 200 Ω
Max. Output +6 dBv
Nominal Output -14 dBv



Phones Connector 6.3mm (1/4") standard stereo jacks
Working Impedance 16 to 600Ω
Max. Output 45 mW + 45 mW (0.1% THD+N or less, into 32Ω load)



Monitor Out Connector 6.3mm (1/4") standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
Output impedance 200 Ω
Max. Output +20 dBu
Nominal Output +0 dBu



Other USB USB Type-C
Format USB2.0 HIGH SPEED
Device Class Mass-storage class
USB Audio Class 2.0(USB class-compliant)



USB Audio Sampling Rate 48 kHz
Bit Depth 24 bit
No.of Inputs 14 channels *Output from this unit
No.of Outputs 2 channels *Input to this unit



Bluetooth Output Class 2 (about 10m* unobstructed transmission distance)
Profile A2DP
Codecs SBC, AAC
Content Protection SCMS-T



Recording Times Recording Format 24-bit / 48kHz WAV
14 ch 0:35 (4 GB) / 1:10 (8 GB)
2 ch 4:07 (4 GB) / 8:15 (8 GB)USB Audio Class 2.0(USB class-compliant)



Audio performance S/N Ratio 101 dB( Mic input jacks (1-4), channel faders at 0, 20kHz SPCL LPF +A-Weight)
Input Noise -125 dBu or less (150Ω termination, LEVEL at max.)
Crosstalk 95 dB or more
Distortion 0.003% ( Mic input jacks (1-4), 1kHz sine wave, channel faders at 0, 20kHz SPCL LPF)
Frequency Response Mic input jacks (1-4)
20 Hz - 20 kHz: +0.3 dB / -0.3 dB (JEITA)



Power Require Dedicated AC adapter (PS-P1220E NUT), DC 12 V
Consumption 12.5 W (maximum)



Temperature Operating range 0 - 40°C

Product description

Tascam Mixcast 4 USB Audio Interface is a professional-grade audio recording and mixing solution designed for versatile applications in studios, podcasting, live streaming, and more. With its comprehensive feature set and intuitive design, it offers high-quality audio performance and flexible connectivity options for capturing and mixing multiple audio sources with ease.

  • Flexible Connectivity: Equipped with XLR/TRS combo jacks, line inputs, and headphone outputs, the Mixcast 4 offers versatile connectivity options for connecting microphones, instruments, and audio devices. It also includes Bluetooth connectivity for wireless audio streaming.

  • High-Quality Recording: The interface supports recording in BWF format at 48 kHz and 24-bit resolution, offering professional-grade audio quality for capturing pristine recordings. Users can record multiple audio sources simultaneously with up to 14 tracks (12 tracks + 2 mix).

  • Intuitive Controls: Featuring gain controls, level meters, and channel faders, the Mixcast 4 provides intuitive control over audio levels and mixing settings, allowing users to achieve optimal sound quality and balance.

  • USB Audio Interface: With USB Type-C connectivity and USB Audio Class 2.0 support, the interface can be easily connected to computers for recording, playback, and streaming. It also functions as a mass-storage device, allowing convenient file transfer.

  • Compact and Durable Design: Designed for portability and durability, the Mixcast 4 features a compact form factor and rugged construction, making it suitable for use in various environments. It also includes a dedicated AC adapter for reliable power supply.

The Tascam Mixcast 4 USB Audio Interface is a versatile and reliable solution for professional audio recording, mixing, and streaming applications. Its flexible connectivity options, high-quality recording capabilities, intuitive controls, and compact design offer users the tools they need to produce exceptional audio content in studios, podcasts, live streams, and more.
