  • Vendor: KENWOOD

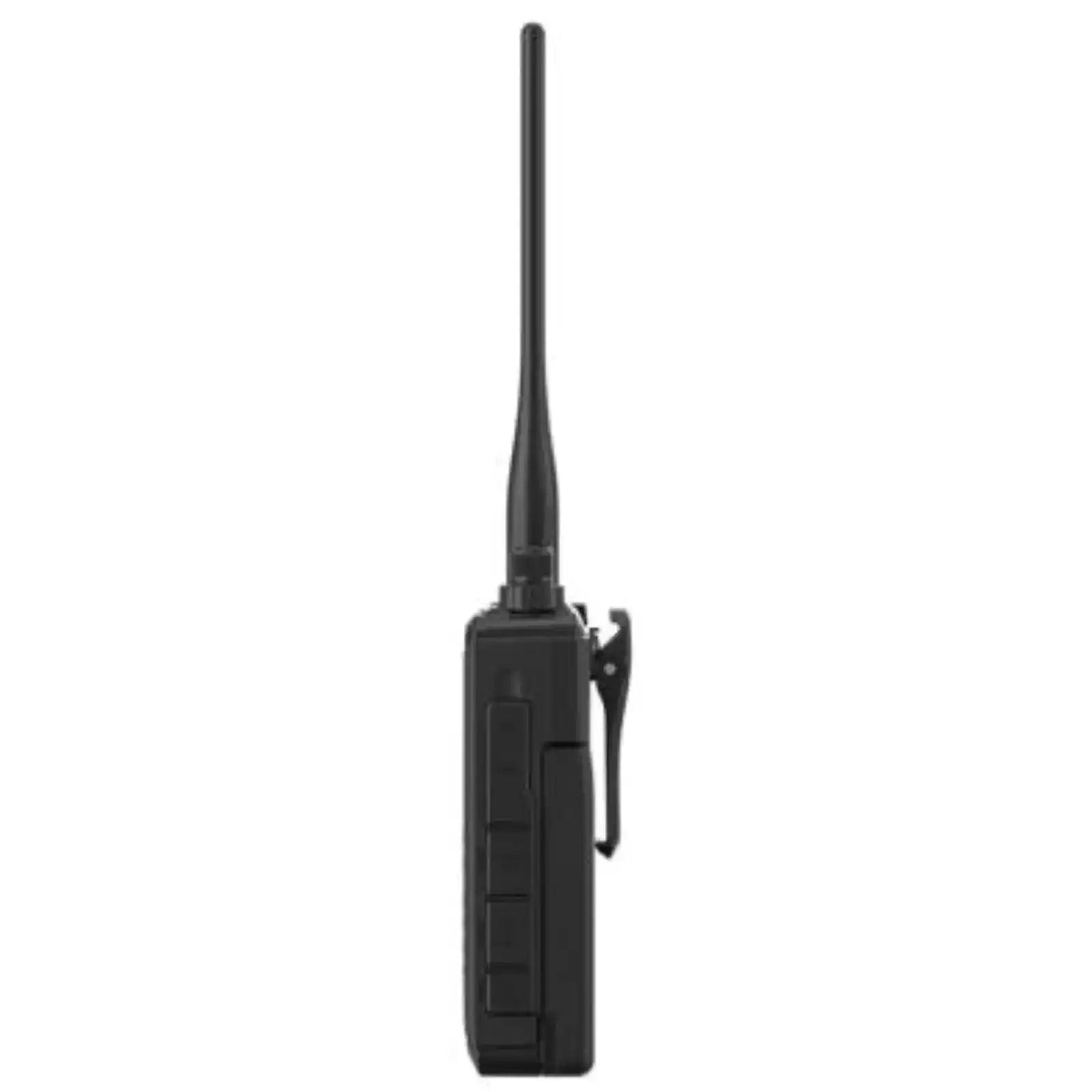

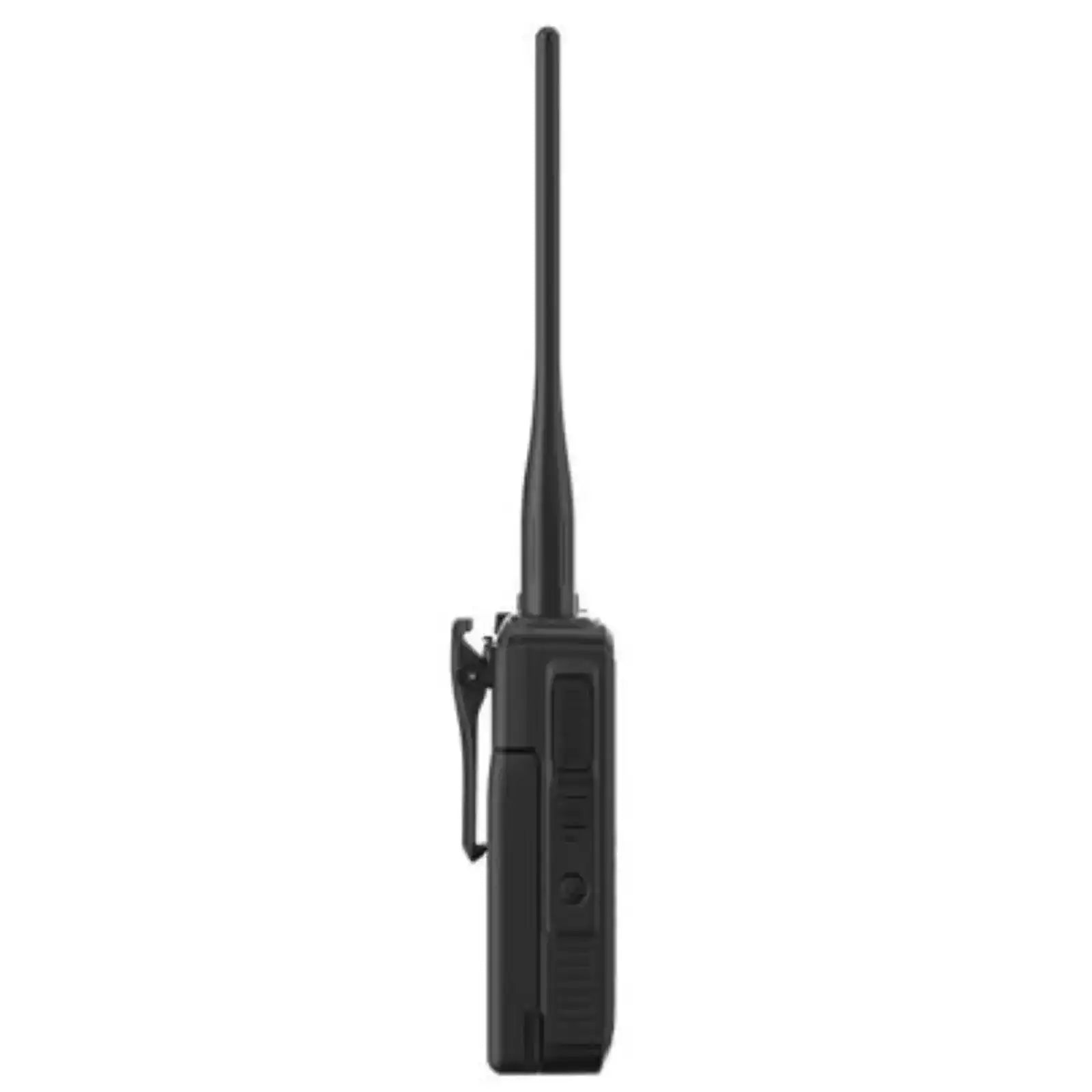

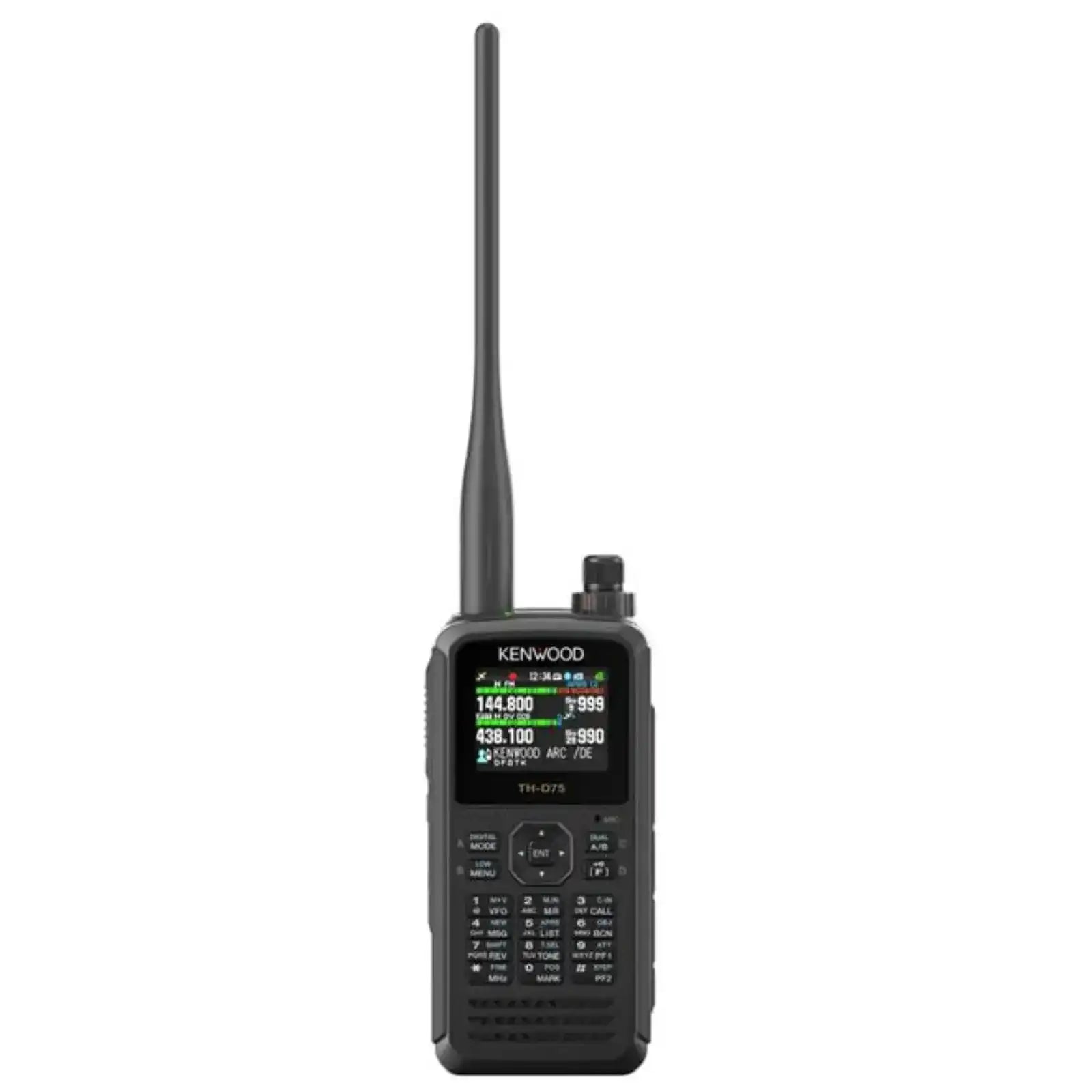

Kenwood TH-D75 144-430 mhz dual bander

$904.00 AUD
 per
Tax included.
Shipping calculated at checkout.
In stock!
Spend $100.00 to FREE SHIPPING

Item specifics

Basic Info Type Dual Bander
Brand Name Kenwood
Manufacturer  Kenwood
Model Name TH-D75



Body Dimensions W x H x D
with KNB-75L: 56.0 x 121.95 x 32.5 mm
Weight (with battery) with KNB-75L: 340 g (net)



General
Antenna
Yes, Ferrite Bar Antenna suitable
Battery
Yes, , KNB-75LA - Li-ion battery (1820 mAh)
Charger
supplied with UK (3-pin) for T-type and EU (2-pin) for E-type.



Amateur Radio
Features
Burst Function
1750 Hz Tone Burst Function
Air Band Spacing
8.33KHz spacing on Air Band
GPS
Yes
USB
Type-C
Bluetooth
Yes, HSP, SPP
DTMF Memory
Yes, 10 channels, 16 digits



Amateur
Portable
Specifications
RF Output
Power
5 W High, 2 W Mid, 0.5 W Low, 0.05 W E.Low
Frequency Range
TX - VHF: 144 - 146 MHz
TX - UHF: 430 - 440 MHz
TX: 144 - 146 MHz, 430 - 440 MHz
Frequency
Band A
136 - 174 MHz, 216 - 260 MHz, 410 - 470 MHz
Frequency
Band B
0.1 - 76 MHz / 108 - 524 MHz
Frequency Stability
+/- 2.0 ppm
No. of
Channels
1000 Channels



Mode TX
F3E, F2D, F1D, F7W
RX
F3E, F2D, F1D, F7W, J3E, A3E, A1A
Band A
F3E, F1D, F2D, F7W
Band B
F3E, F2D, F1D, F7W, A1A, A3E, J3E, F7W



Receiver Intermediate Frequency Band-A - 1st IF
57.15 MHz
Band-A - 2nd IF
450 kHz
Band-B - 1st IF
58.05 MHz
Band-B - 2nd IF
450 kHz
Band-B - 3rd IF
J3E, A3E, A1A: 10.8 kHz



Receiver Specifications Squelch
Band-A: 0.18 uV, Band-B: 0.25uV
Spurious Rejection
144 MHz - Band-A: 50 dB or more
430 MHZ - Band-A: 50 dB or more
144 MHz - Band-B: 45 dB or more
430 MHz - Band-B: 40 dB or more
IF Rejection
Band-A: 60 dB or more
Band-B: 55 dB or more
Channel Selectivity
-6 dB: 12 kHz or more
-50 dB: 30 kHz or less
Audio Output
7.4 V, 10% Dist.
400 mW or more / 8 Ohm



Transmitter
Specifications
Max Frequency Deviation
FM: +/- 5.0 kHz
Modulation
FM: Reactance Modulation
DV: GMSK Reactance Modulation
Modulation Deviation
FM: +/- 5.0 kHz
NFM: +/- 2.5 kHz
Spurious Emissions
HI / MID: -60 dBc or less
L: -50 dBc or less
EL: -40 dBc or less

Shipping Information

Shipping policy

MyMobile uses the services of the following carriers to deliver your products anywhere in Australia.

Shipping Type

Warehouse to Retail shop the express to you  ( free )

The order is Sent to our warehouse, there we pack all daily orders in one box and send it via DHL. Once we received the orders in the retail shop we inspect, pack and ship via express post, upload the tracking number. This process normally take about 7 to10 days

DHL Direct

The order is Sent to our warehouse, there we pack and send it via DHL direct uploading the tracking number ,This process takes about 5 to 7 days

Australia Post

This postal service reaches every corner of Australia. We use this service for smaller items shipped from our Australian-based warehouses (ie Regular and Registered Post). If available, tracking of parcels can be performed online (http://auspost.com.au/track/).

DHL

This courier service provides expedited deliveries to the majority of areas within Australia. We use this service for parcels shipped from our international-based warehouses (ie International Shipping). A signature is required for deliveries and must be to a physical street address only (ie No PO Boxes). Tracking of parcels can be performed online (http://www.dhl.com.au/en/express/tracking.html).

Fedex

This courier service provides expedited deliveries to the majority of areas within Australia. We use this service for parcels shipped from our international-based warehouses (ie International Shipping). A signature is required for deliveries and must be to a physical street address only (ie No PO Boxes). Tracking of parcels can be performed online (http://www.fedex.com/Tracking?cntry_code=au).



Shipping Terms and Conditions:

  • All shipping fees listed are non-negotiable and non-refundable.
  • All delivery times are given as a guide only and are in no way guaranteed by MyMobile or the carrier.
  • Any failed deliveries due to inaccurate or incomplete shipping details provided by the buyer or unavailability of the receiver will incur a $25.00 re-delivery fee.
  • Once an item has been shipped, it is the buyer’s responsibility to liaise with the shipping carrier in relation to the delivery of their parcel.
  • Once a parcel is accepted and signed for, it will be deemed to be delivered and will no longer be available to claimed under transit insurance.
  • If a parcel is damaged in transit, the receiver must reject the delivery and advise MyMobile and the shipping carrier immediately.
  • If a parcel is lost in transit, the buyer must open an investigation with the shipping carrier.
  • MyMobile will only arrange replacement of the order once the investigation has been completed and providing the buyer selected transit insurance at the time of the initial purchase.

Product description

Explore the Versatility of the Kenwood TH-D75 144-430 mhz dual bander

  • Advanced Dual-Band Transceiver: Kenwood TH-D75 144-430 mhz Supports VHF (144-146 MHz) and UHF (430-440 MHz) transmission, along with extensive receive coverage from 0.1 MHz to 524 MHz, making it ideal for amateur radio enthusiasts and emergency communication.

  • Built-In GPS & Bluetooth Connectivity: Features integrated GPS for precise location tracking and Bluetooth support (HSP, SPP) for seamless wireless connectivity, enabling enhanced communication and data sharing.
  • High-Power Output with Multiple Transmission Modes: Delivers up to 5W RF output power with selectable mid (2W), low (0.5W), and extra-low (0.05W) power settings while supporting FM, digital voice (DV), and analog modes (J3E, A3E, A1A) for versatile communication.

  • Robust Receiver Performance & Superior Audio Quality: Equipped with triple IF filtering, superior spurious rejection (50 dB or more), and 400mW audio output, ensuring clear, noise-free communication even in challenging environments.

  • User-Friendly Design with USB-C Charging: Designed for convenience with USB Type-C charging, a high-capacity 1820mAh Li-ion battery, and 1000 memory channels, providing long-lasting operation and flexible channel management.
Kenwood TH-D75 is a high-performance dual-band transceiver designed for amateur radio operators and emergency responders. With wide frequency coverage, GPS and Bluetooth integration, multi-mode transmission, advanced receiver technology, and user-friendly features like USB-C charging, it is a powerful and reliable choice for communication enthusiasts.
