- Vendor: HOLLYLAND
Hollyland MARS 4K RX
Item specifics
Basic Info | Type | Microphone |
---|---|---|
Brand Name | Hollyland | |
Manufacturer | Hollyland | |
Model Name | MARS 4K RX |
Body |
Dimensions
|
115 x 65 x 32mm (LxWxH) |
---|---|---|
Weight |
223g (Without Antenna)
|
Specifications |
Frequency
|
5GHz
|
---|---|---|
Trans. Power |
21dBm (max.)
|
|
Latency |
0.06s
|
|
Bandwidth |
20MHz
|
|
Modulation |
802.11n
|
|
Power Consumption |
<5W
|
Video Format Receiver |
HDMI
|
720p50/60, 1080i50/60, 1080p24/25/30
1080p50/60, 3840*2160 24/25/30 |
---|---|---|
SDI
|
1080p60/59.94/50(Level A), 1080i60/59.94/50
1080p30/29.97/25/24/23.98, 1080psf24/23.98 720p60/59.94/50 |
Supply |
Interfaces
|
DC input: 6V–16V
USB Type-C: 5V/2.5A NP-F battery: 6.8V–8.4V |
---|
Parameters |
Interface
|
2*Antenna (RP-SMA male)
HDMI 1.4 b input (Type-A female), 3G-SDI input DC input (2.0mm core sccket) USB Type-C (USB 2.0 OTG) |
---|
Others |
Bit Rate
|
8Mbps–20Mbps
|
---|---|---|
Operating temperature
|
–10℃ to 60℃
|
|
Storage temperature
|
–40℃ to 60℃
|
Shipping policy
MyMobile uses the services of the following carriers to deliver your products anywhere in Australia.
Shipping Type
Warehouse to Retail shop the express to you ( free )
The order is Sent to our warehouse, there we pack all daily orders in one box and send it via DHL. Once we received the orders in the retail shop we inspect, pack and ship via express post, upload the tracking number. This process normally take about 7 to10 days
DHL Direct
The order is Sent to our warehouse, there we pack and send it via DHL direct uploading the tracking number ,This process takes about 5 to 7 days
Australia Post
This postal service reaches every corner of Australia. We use this service for smaller items shipped from our Australian-based warehouses (ie Regular and Registered Post). If available, tracking of parcels can be performed online (http://auspost.com.au/track/).
DHL
This courier service provides expedited deliveries to the majority of areas within Australia. We use this service for parcels shipped from our international-based warehouses (ie International Shipping). A signature is required for deliveries and must be to a physical street address only (ie No PO Boxes). Tracking of parcels can be performed online (http://www.dhl.com.au/en/express/tracking.html).
Fedex
This courier service provides expedited deliveries to the majority of areas within Australia. We use this service for parcels shipped from our international-based warehouses (ie International Shipping). A signature is required for deliveries and must be to a physical street address only (ie No PO Boxes). Tracking of parcels can be performed online (http://www.fedex.com/Tracking?cntry_code=au).
Shipping Terms and Conditions:
- All shipping fees listed are non-negotiable and non-refundable.
- All delivery times are given as a guide only and are in no way guaranteed by MyMobile or the carrier.
- Any failed deliveries due to inaccurate or incomplete shipping details provided by the buyer or unavailability of the receiver will incur a $25.00 re-delivery fee.
- Once an item has been shipped, it is the buyer’s responsibility to liaise with the shipping carrier in relation to the delivery of their parcel.
- Once a parcel is accepted and signed for, it will be deemed to be delivered and will no longer be available to claimed under transit insurance.
- If a parcel is damaged in transit, the receiver must reject the delivery and advise MyMobile and the shipping carrier immediately.
- If a parcel is lost in transit, the buyer must open an investigation with the shipping carrier.
- MyMobile will only arrange replacement of the order once the investigation has been completed and providing the buyer selected transit insurance at the time of the initial purchase.
- [4K UHD Video Transmission]. Mars 4K single transmitter supports video input/output formats up to 3840x2160@24/25/30fps resolution via HDMI port, and FHD/HD formats like 1080p/720p via HDMI/SDI. Adopting H264 encoding, it can achieve 12-20Mbps bitrate under HD/Balance/Speed Scene Modes when pair with the Mars 4K single receiver and Mars M1 wireless video monitor.

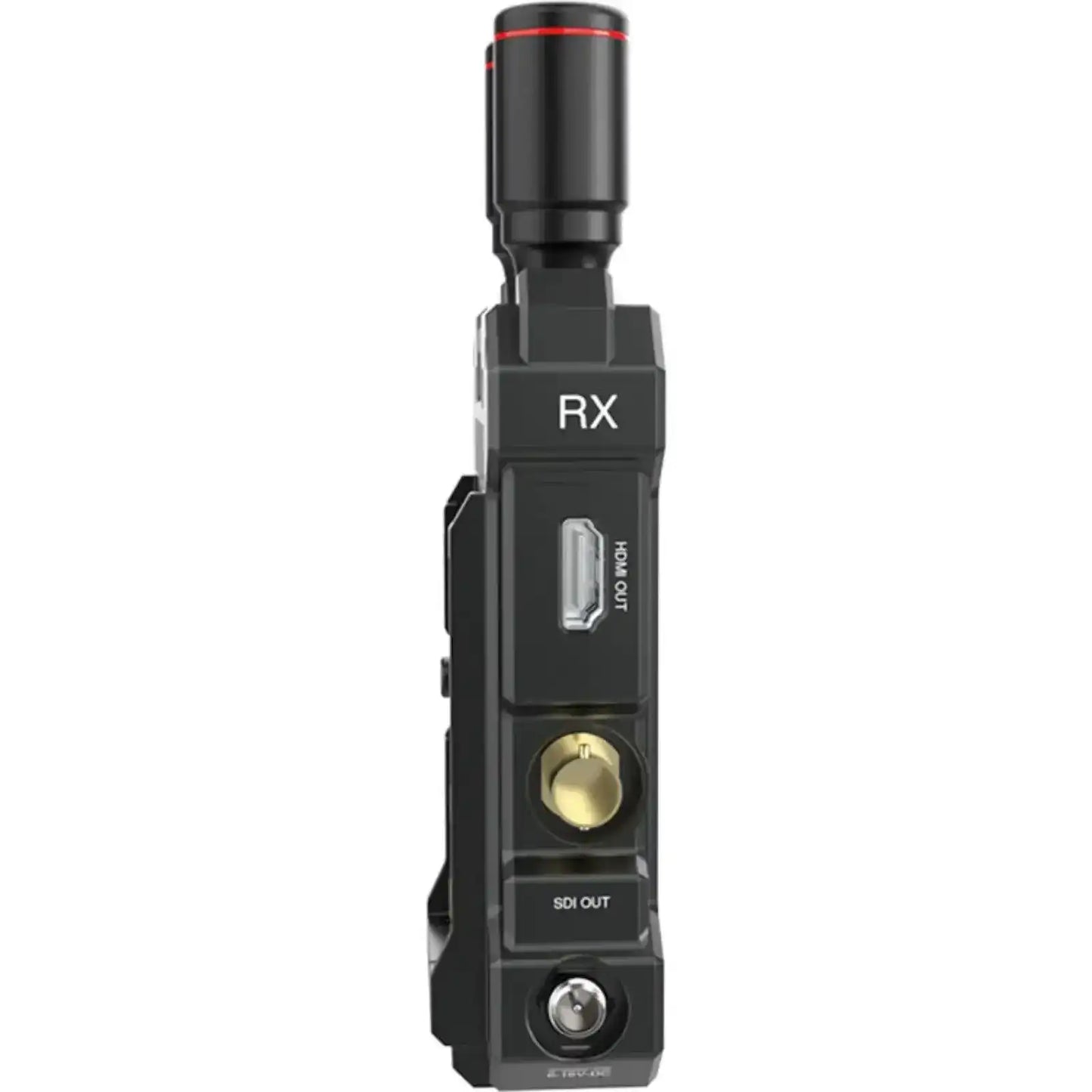

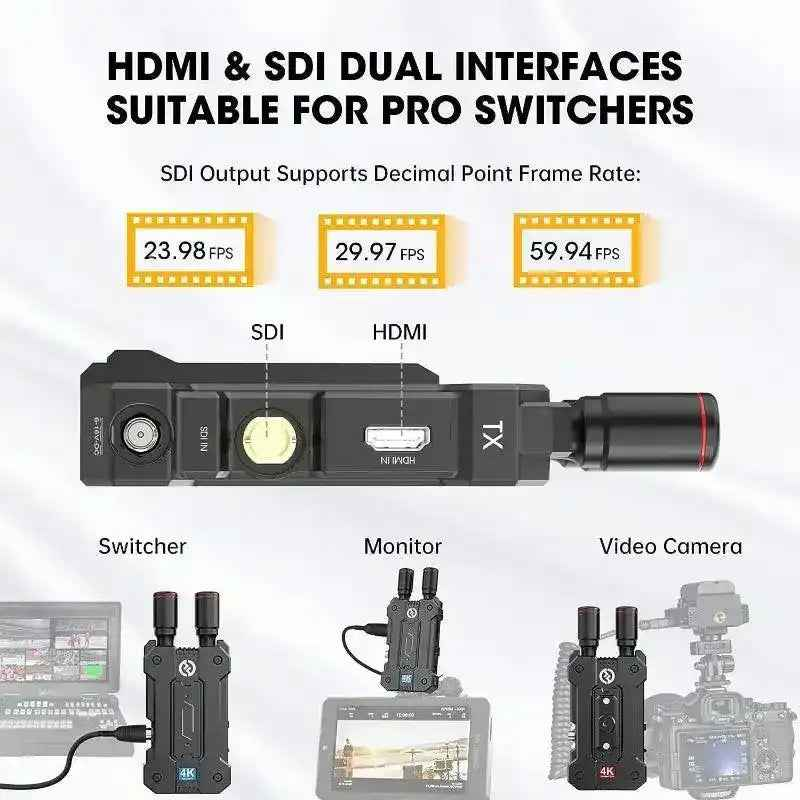

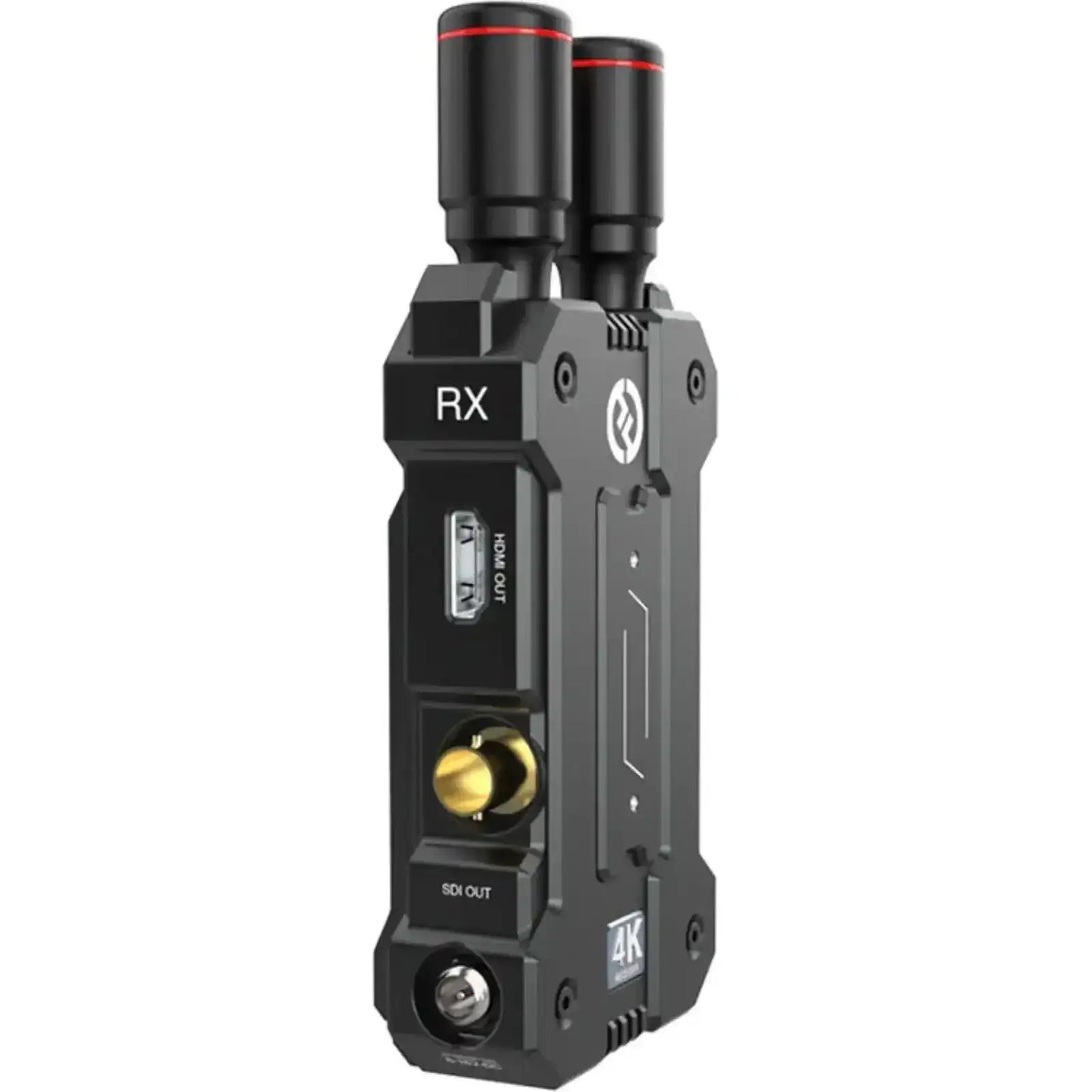

- [SDI&HDMI Interface, Support Decimal-point Rate]. Hollyland Mars 4K comes with HDMI and SDI options for various applications and compatibility. HDMI supports up to 3840*2160P/4K input output. The 3G-SDI port supports broadcast and production standards frame rate output (23.98/29.97/59.94 FPS) for professional equipment like video switchers. When decimal-point rate video input via SDI port, both HDMI and SDI support decimal-point rate output.
- [450FT Range & 66ms Latency]. Mars 4K can reach an incredible 450ft LOS range and 66ms ultra-low delay in an interference-free laboratory environment. Its metal shell, bullet-style antennas, protective interface design, joystick menu button, full-color LCD screen, and strong Electrostatic Discharge ESD protection bring you durable build quality, modern look, ergonomic design, and superior wireless performance.

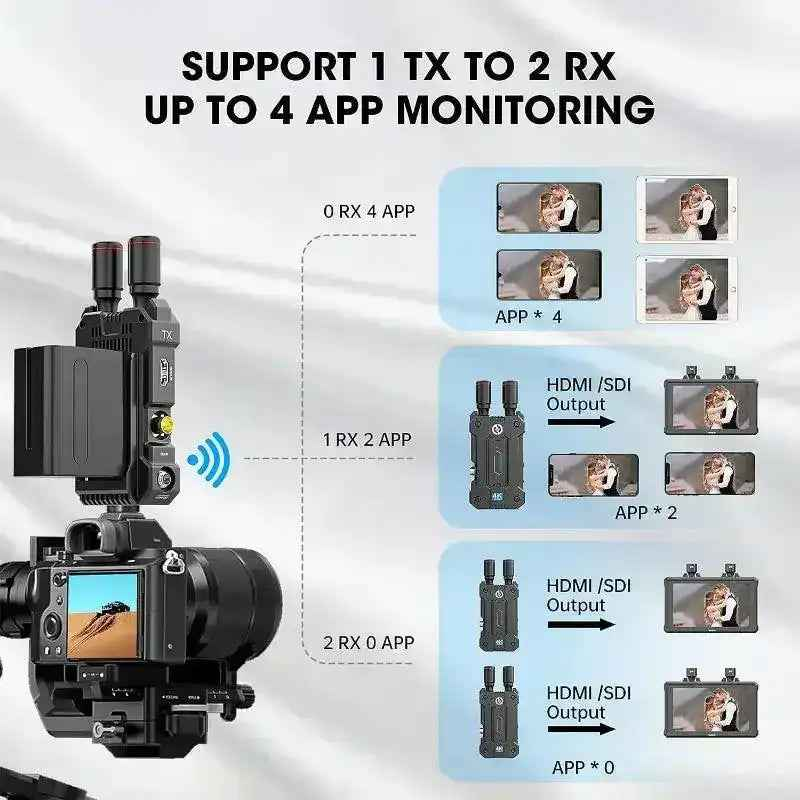

- [Up to 4 APP Monitoring Options]. Mars 4K supports wireless transmission to RXs/iOS/Android phone/tablet devices. When using 1TX to 1RX, it allows 2 monitors via HDMI&SDI cable and 2 mobile devices APP monitoring. When using 1TX without RX, it allows 4 APP monitoring. You can also pair another Mars 4K RX to the system, and wire them to 4 monitors for the director/producer/sponsor to view the shooting on set.

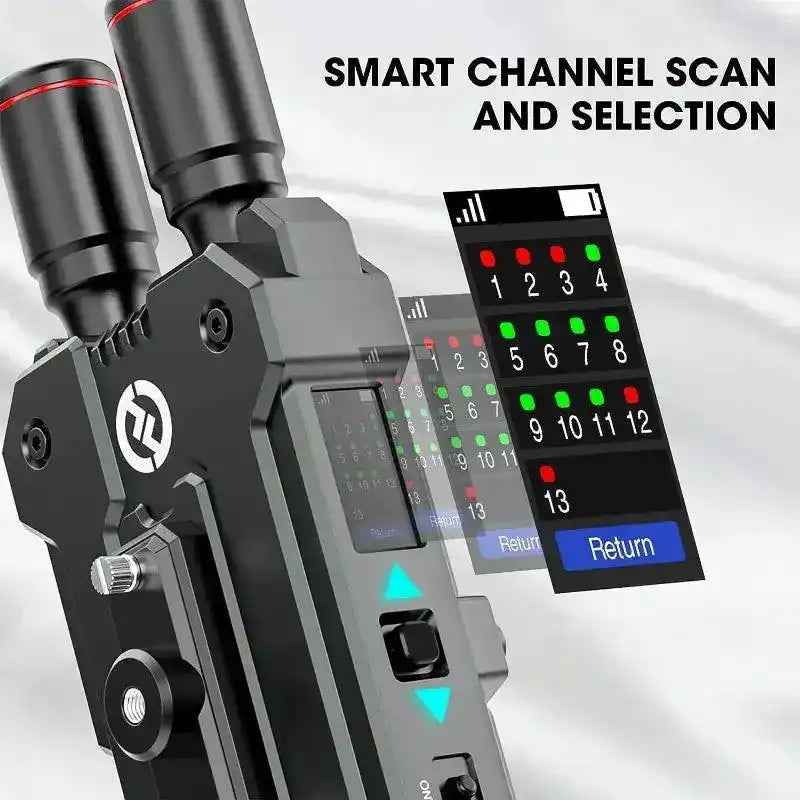

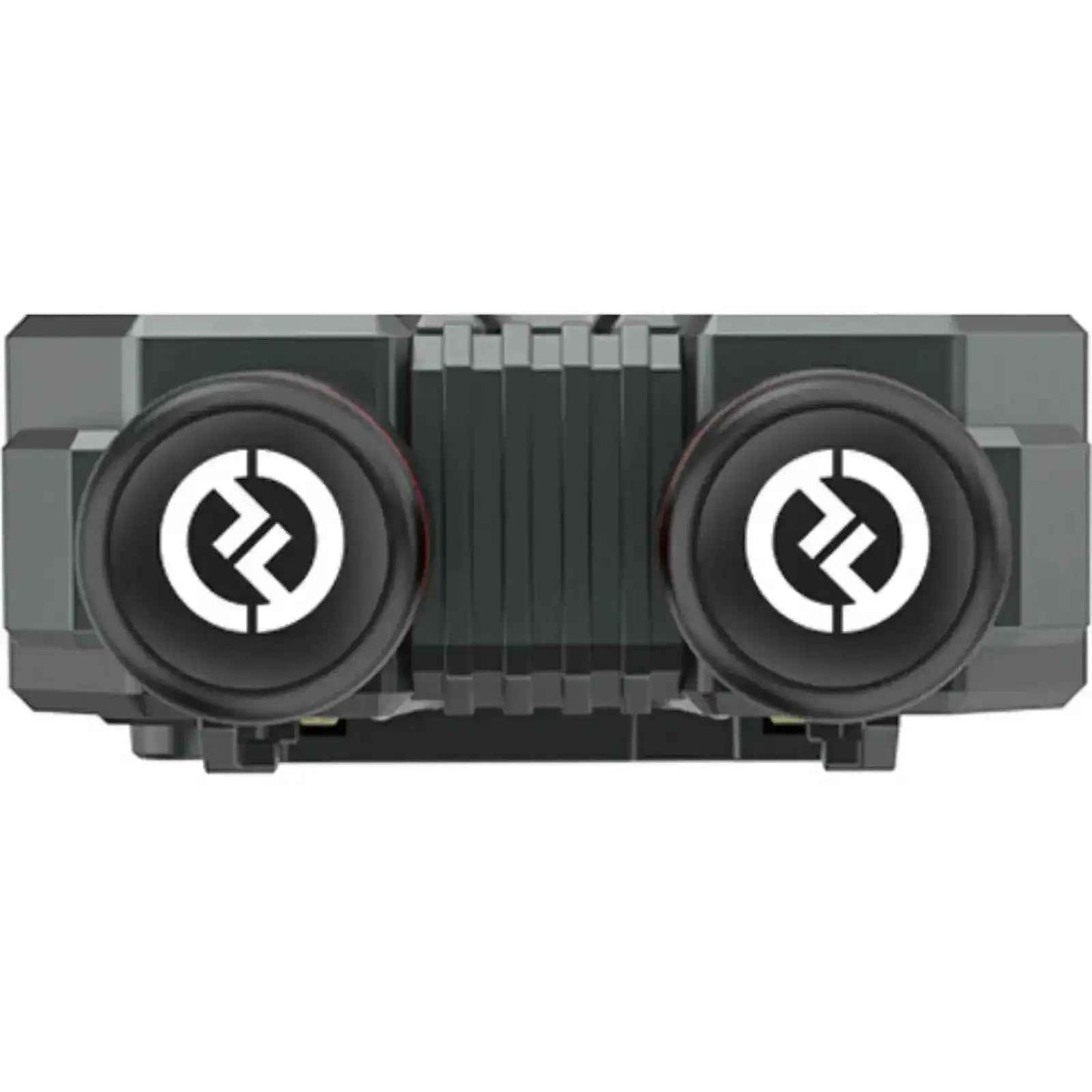

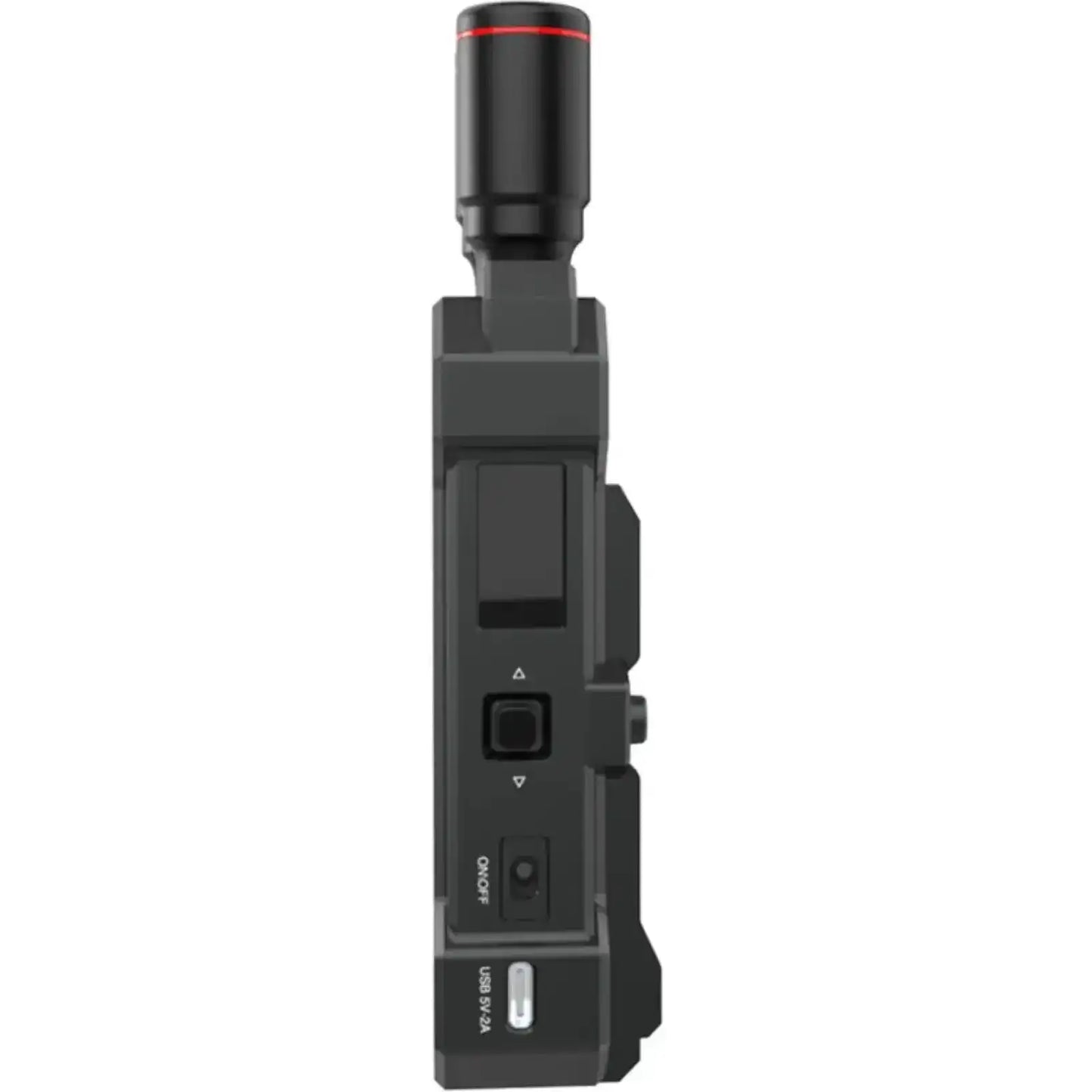

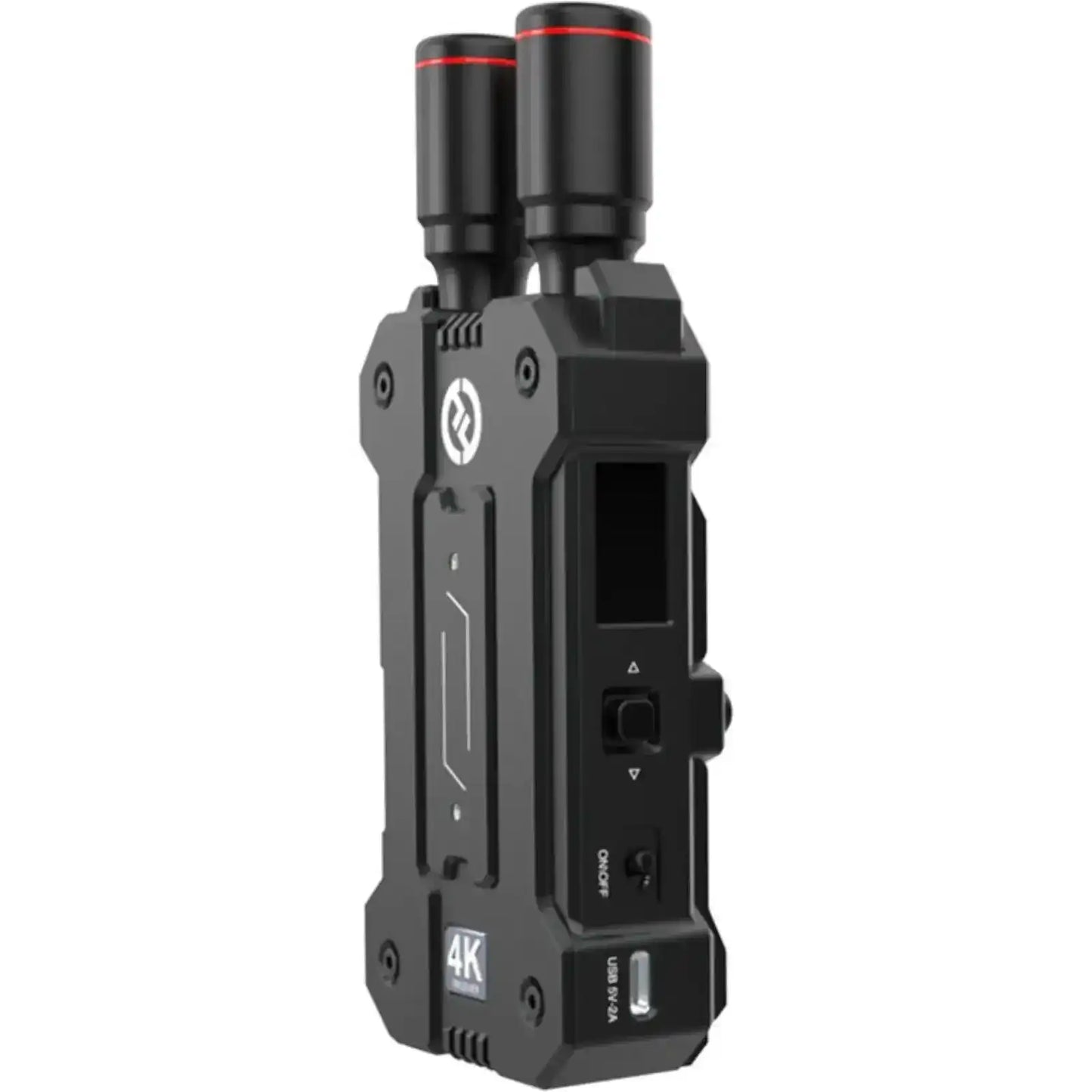

- [Superior Design and Experience]. Features superior corrosion and abrasion resistance for top durability even in extreme temperatures. The no-removal bullet antenna design optimizes quick configuration and zero-encumber use. Color LCD screen and user-friendly joystick allow for quick setup and status checks. Supports multiple power options including 6-16V DC power, NP-F970/750/550 battery, 5V/2.5A USB Type-C power.[QC/PD protocol and 5V/2A charging are NOT supported]
- [What You Get from the Package]. Transmitter*1; Bullet Antenna*2; Self-locking DC Adapter*1; Expansion Accessories*1; Instruction Manual*1
