- Vendor: DJI

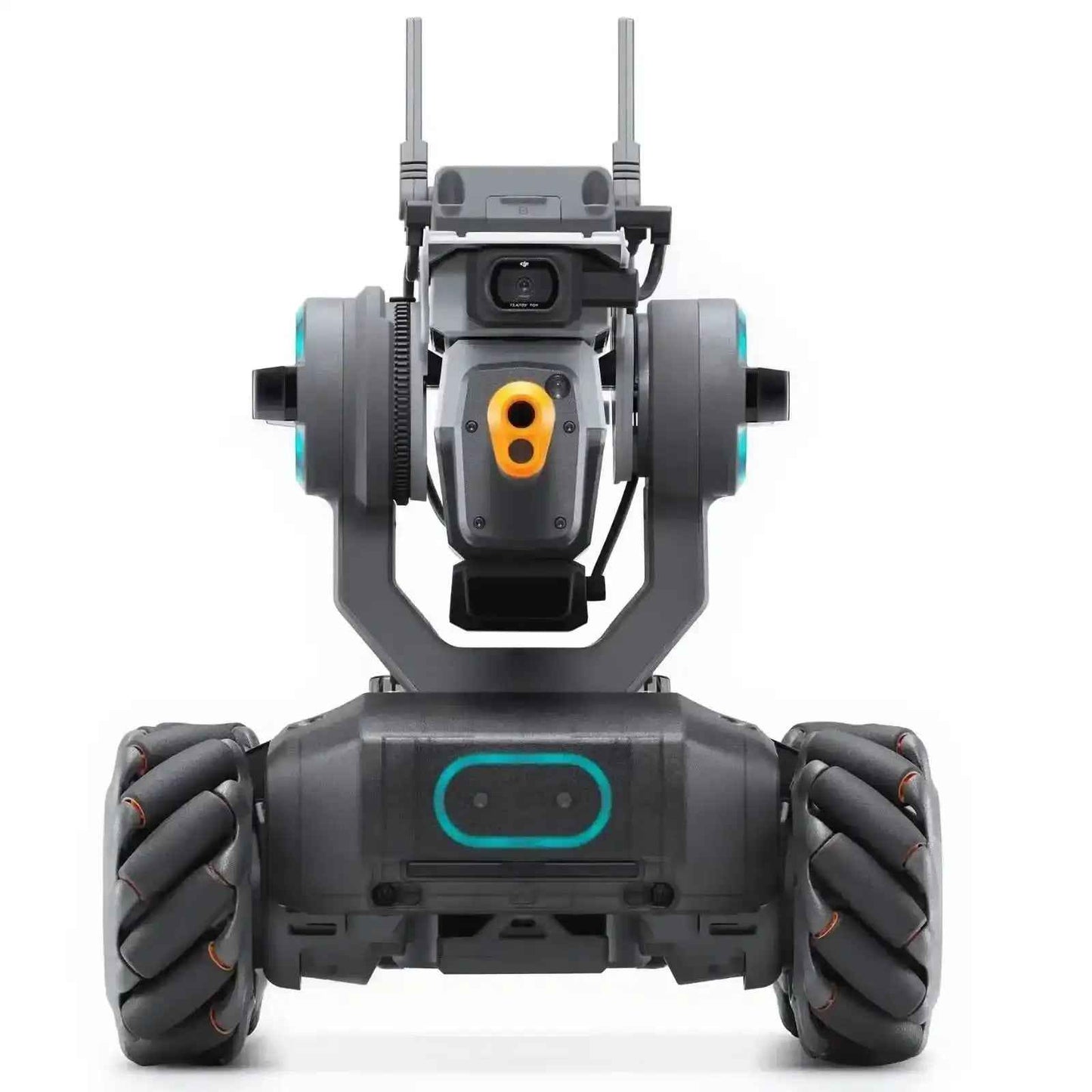

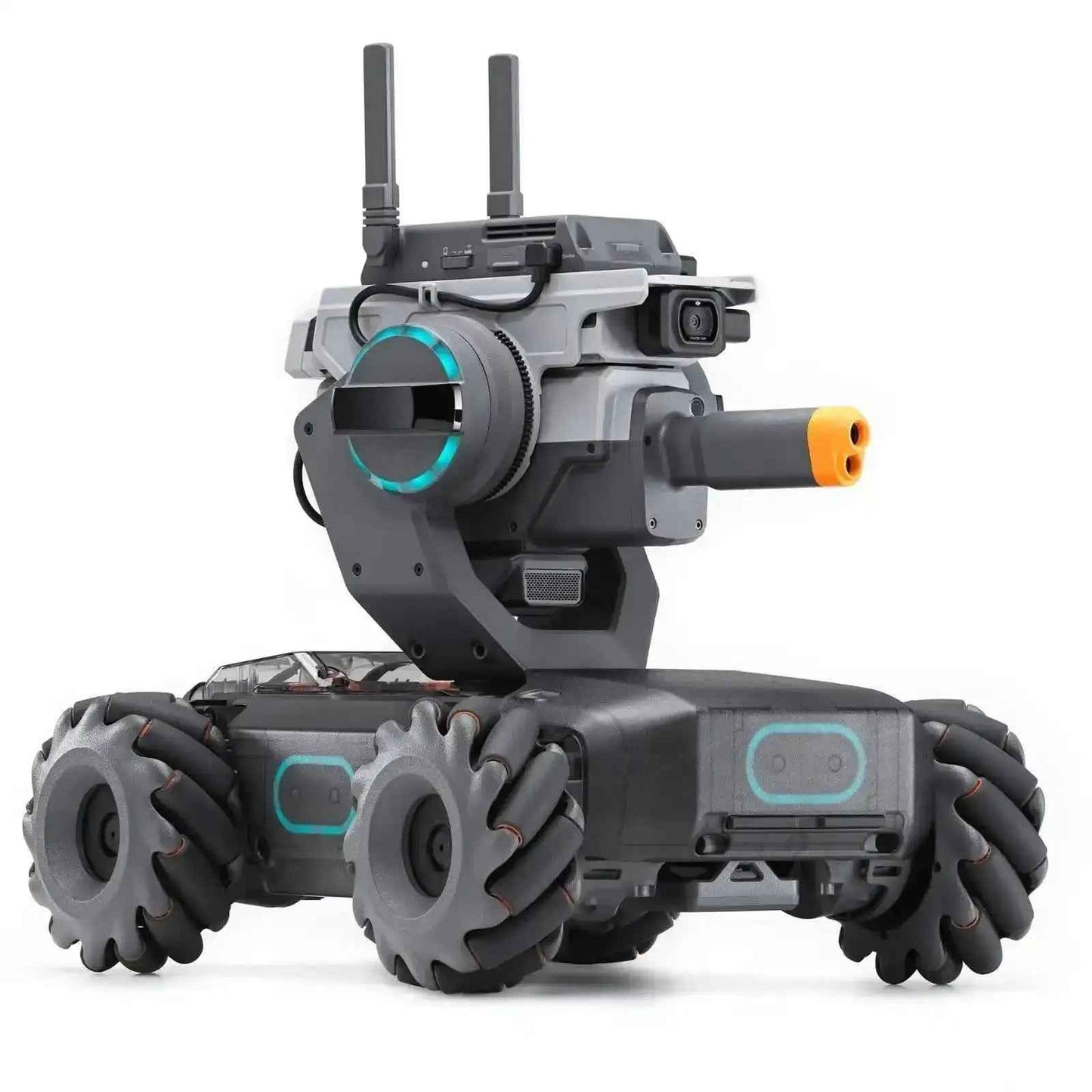

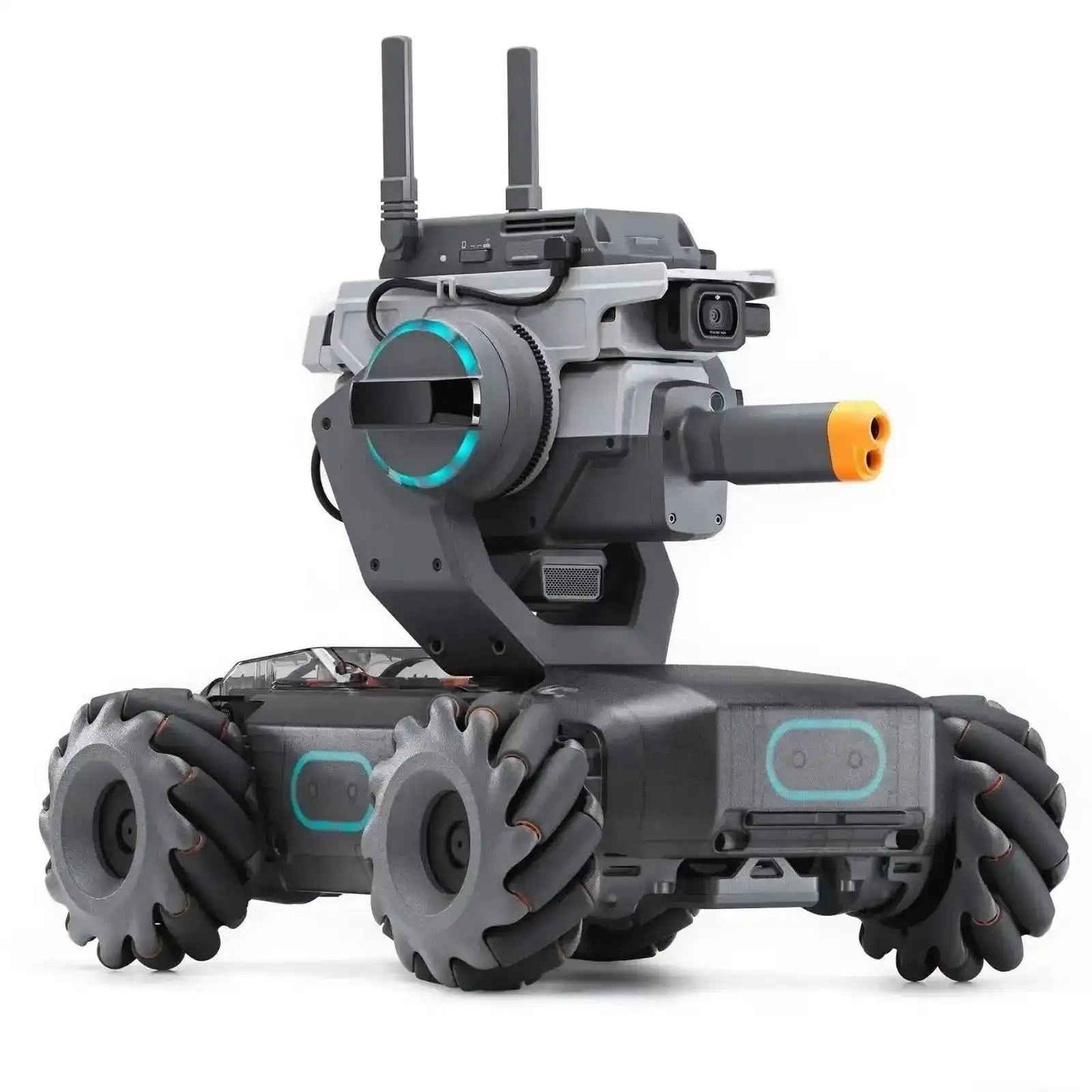

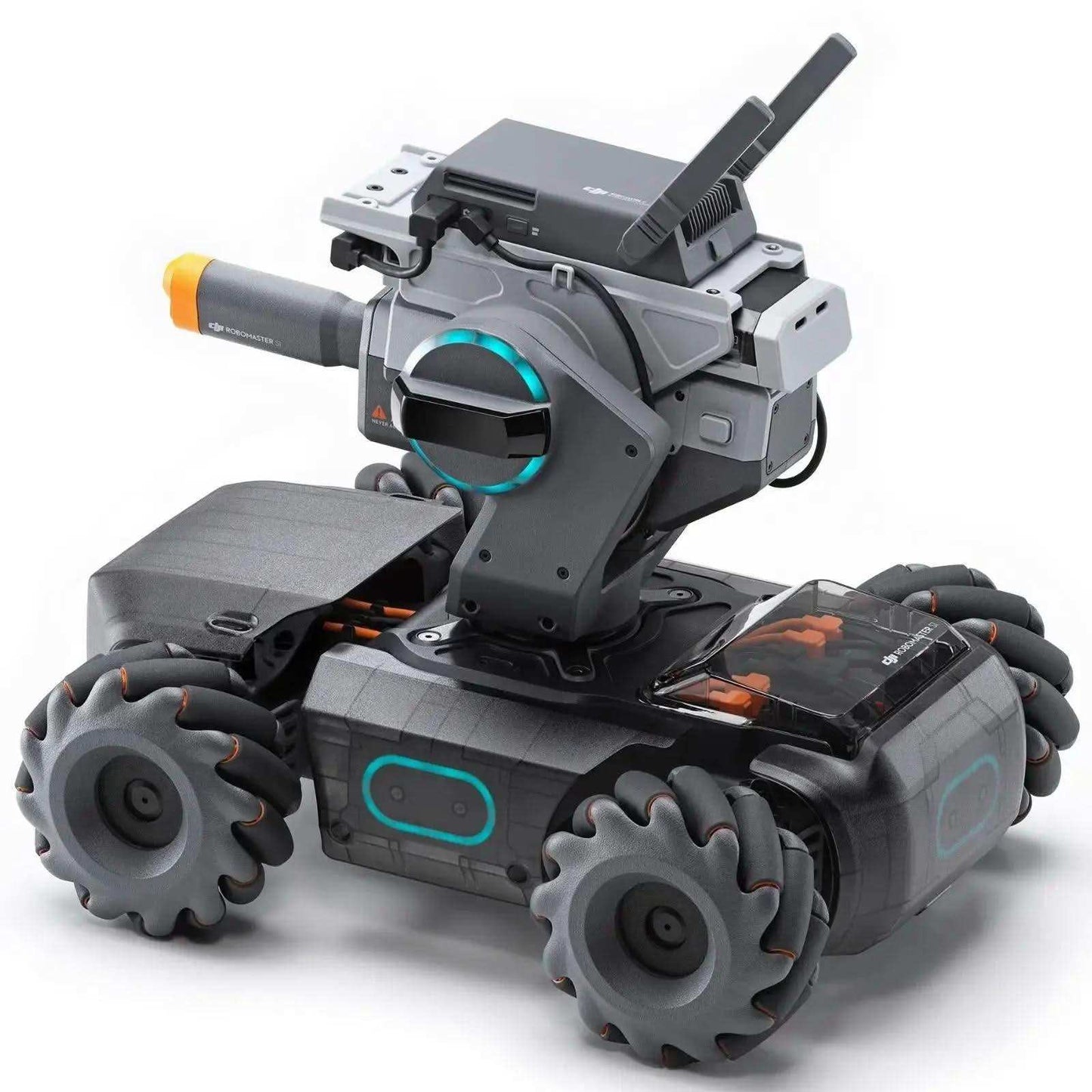

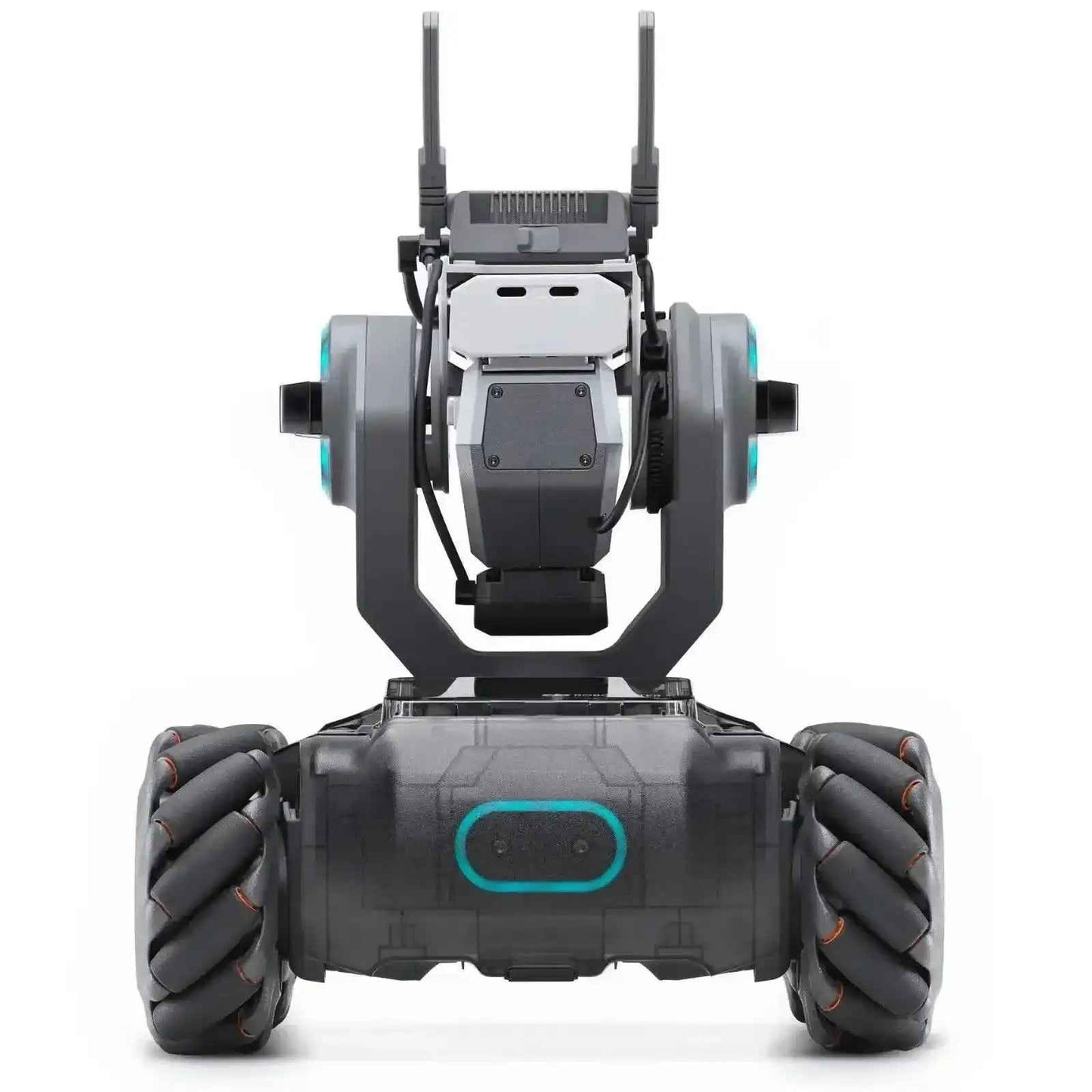

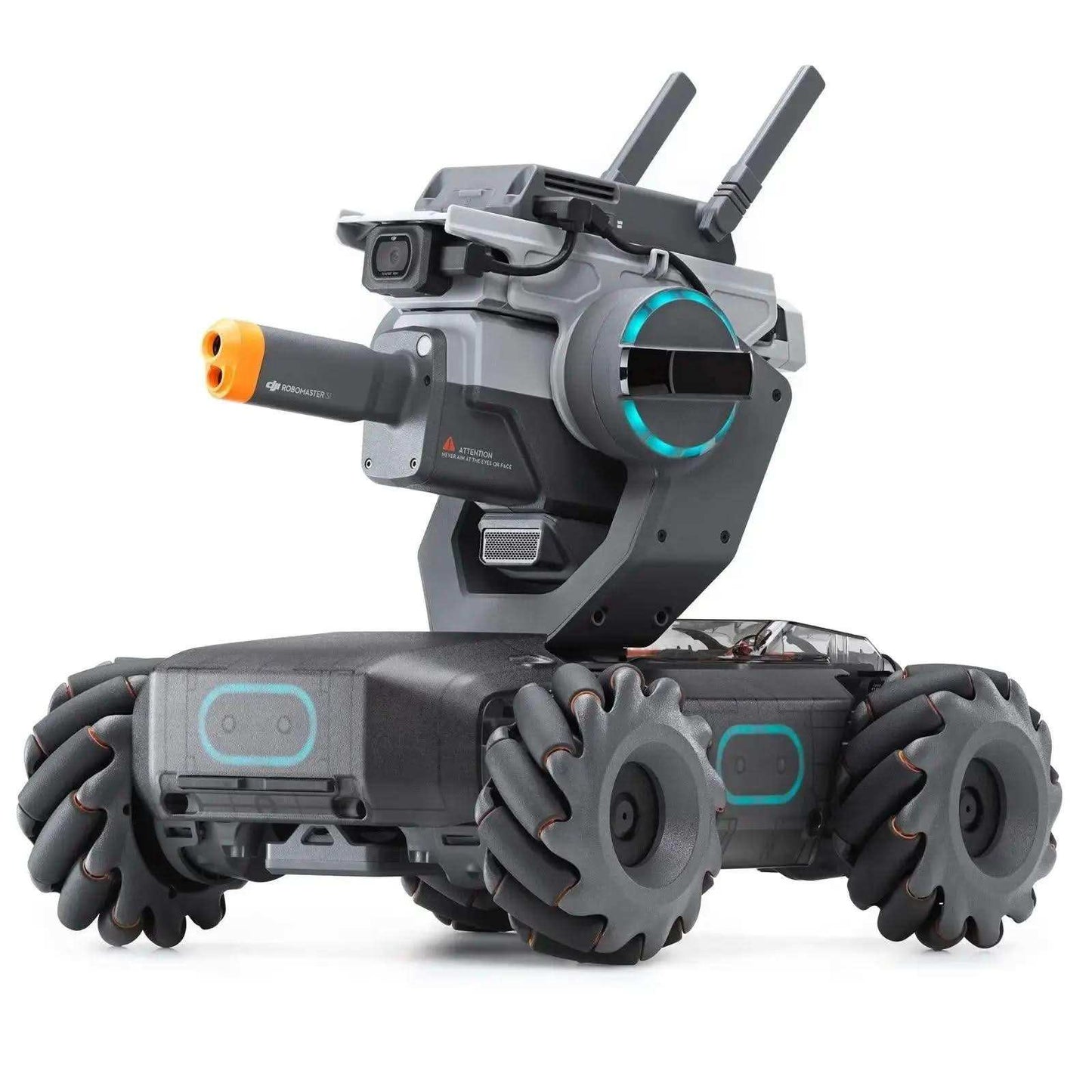

Dji Robomaster S1 Educational Robot
Item specifics
Basic Info |
Type
|
Gimbal
|
---|---|---|
Brand Name |
DJI
|
|
Manufacturer | DJI | |
Model Name | Dji Robomaster S1 |
Body |
Dimension
|
320×240×270 mm |
---|---|---|
Weight | 3.3 Kg |
Camera |
FOV
|
120°
|
---|---|---|
Max Photo Resolution | 2560×1440 | |
Max Video Resolution | FHD: 1080/30fps, HD: 720/30fps | |
Max Video Bitrate | 16 Mbps | |
Photo Format | JPEG | |
Video Format | MP4 | |
Sensor | CMOS 1/4″; Effective pixels: 5 MP | |
Operating Temperature | -10 to 40 °C (14 to 104 °F) |
Narrow Infrared Units |
Effective Range [1]
|
6 m (in indoor lighting conditions)
|
---|---|---|
Effective Area | Varies from 10° to 40°/s |
Wide Infrared Units |
Effective Range [1]
|
3 m (in indoor lighting conditions)
|
---|---|---|
Effective Width | 360° (in indoor lighting conditions)ove |
Hit Detector |
Maximum Detection Frequency
|
15 Hz
|
---|---|---|
Detection Requirements | Gel bead diameter ≥ 6mm launching speed ≥20m/s hit detector plane is no less than 45° |
Speed |
Max Chassis Rotational Speed
|
600°/s
|
---|---|---|
Chassis Speed Range | 0-3.5 m/s (forward) 0-2.5 m/s (backward) 0-2.8 m/s (sideways) |
M3508I Brushless Motor |
Max Rotational Speed
|
1000 rpm
|
---|---|---|
Max Torque | 0.25N·m | |
Max Output Power | 19 W | |
Operating Temperature | -10 to 40 °C (14 to 104 °F) | |
Driver | FOC | |
Control Method | Closed-loop speed control | |
Protection | Overvoltage protection Overtemperature protection Soft-start Short-circuit protection Chip and sensor anomaly detection |
Blaster |
Controllable Launching Frequency
|
1-8/s
|
---|---|---|
Max Launching Frequency | 10/s | |
Initial Launching Speed | Approx. 26 m/s | |
Average Load | Approx. 430 |
Gimbal |
Controllable Range
|
Pitch: -20° to +35°
Yaw: ±250° |
---|---|---|
Mechanical Range | Pitch: -24° to +41° Yaw: ±270° |
|
Max Rotational Speed | 540°/s | |
Vibration Control Precision | ±0.02° |
Intelligent Controller |
Live View Quality
|
720p/30fps
|
---|---|---|
Live View Bitrate | 6 Mbps | |
Operating Frequency [3] | 2.4 GHz, 5.1 GHz, 5.8 GHz | |
Transmission Standard | IEEE802.11a/b/g/n | |
Operating Mode | Connection via Wi-Fi, Connection via Router | |
Latency [2] | Connection via Wi-Fi: 80-100ms Connection via Router: 100-120ms (unobstructed, free of interference) |
|
Max Transmission Distance [4] | Connection via Wi-Fi: FCC, 2.4 GHz 140 m,5.8 GHz 90 m CE, 2.4 GHz 130 m,5.8 GHz 70 m SRRC, 2.4 GHz 130 m,5.8 GHz 90 m MIC, 2.4 GHz 130 m Connection via Router: FCC, 2.4 GHz 190 m,5.8 GHz 300 m CE, 2.4 GHz 180 m,5.8 GHz 70 m SRRC, 2.4 GHz 180 m,5.8 GHz 300 m MIC,2.4 GHz 180 m |
|
Transmission Power (EIRP) | 2.400-2.4835 GHz FCC: ≤30 dBm SRRC: ≤20 dBm CE: ≤19 dBm MIC: ≤20 dBm 5.150-5.250 GHz FCC: ≤30 dBm SRRC: ≤23 dBm CE: ≤20 dBm MIC: ≤23 dBm 5.725-5.850 GHz FCC: ≤30dBm SRRC: ≤30dBm CE: ≤14 dBm |
Gel Bead |
Diameter
|
5.9-6.8 mm [2]
|
---|---|---|
Weight | 0.12-0.17 g [2] |
App |
App
|
RoboMaster
|
---|---|---|
iOS | iOS 10.0.2 or later | |
Android | Android 5.0 or later |
SD Card |
Supported
|
Up to 64 GB
|
---|
Router |
Recommended Routers
|
TP-Link TL-WDR8600; TP-Link TL-WDR5640 (China)
TP-Link Archer C7; NETGEAR X6S (International) |
---|---|---|
power supply solution for routers | Laptop Power Bank |
Battery |
Type
|
LiPo 3S
|
---|---|---|
Capacity | 2400 mAh | |
Weight | 169 g | |
Energy | 25.92 Wh | |
Nominal Charging Voltage | 10.8 V | |
Maximum Charging Voltage | 12.6 V | |
Power | 29 W | |
Battery Life in Use | 35 minutes | |
Battery Life on Standby | 100 minutes |
Temperature |
Operating Temperature Range
|
-10 to 40 °C (14 to 104 °F)
|
---|---|---|
Charging Temperature Range | 5 to 40 °C (41 to 104 °F) |
Shipping policy
MyMobile uses the services of the following carriers to deliver your products anywhere in Australia.
Shipping Type
Warehouse to Retail shop the express to you ( free )
The order is Sent to our warehouse, there we pack all daily orders in one box and send it via DHL. Once we received the orders in the retail shop we inspect, pack and ship via express post, upload the tracking number. This process normally take about 7 to10 days
DHL Direct
The order is Sent to our warehouse, there we pack and send it via DHL direct uploading the tracking number ,This process takes about 5 to 7 days
Australia Post
This postal service reaches every corner of Australia. We use this service for smaller items shipped from our Australian-based warehouses (ie Regular and Registered Post). If available, tracking of parcels can be performed online (http://auspost.com.au/track/).
DHL
This courier service provides expedited deliveries to the majority of areas within Australia. We use this service for parcels shipped from our international-based warehouses (ie International Shipping). A signature is required for deliveries and must be to a physical street address only (ie No PO Boxes). Tracking of parcels can be performed online (http://www.dhl.com.au/en/express/tracking.html).
Fedex
This courier service provides expedited deliveries to the majority of areas within Australia. We use this service for parcels shipped from our international-based warehouses (ie International Shipping). A signature is required for deliveries and must be to a physical street address only (ie No PO Boxes). Tracking of parcels can be performed online (http://www.fedex.com/Tracking?cntry_code=au).
Shipping Terms and Conditions:
- All shipping fees listed are non-negotiable and non-refundable.
- All delivery times are given as a guide only and are in no way guaranteed by MyMobile or the carrier.
- Any failed deliveries due to inaccurate or incomplete shipping details provided by the buyer or unavailability of the receiver will incur a $25.00 re-delivery fee.
- Once an item has been shipped, it is the buyer’s responsibility to liaise with the shipping carrier in relation to the delivery of their parcel.
- Once a parcel is accepted and signed for, it will be deemed to be delivered and will no longer be available to claimed under transit insurance.
- If a parcel is damaged in transit, the receiver must reject the delivery and advise MyMobile and the shipping carrier immediately.
- If a parcel is lost in transit, the buyer must open an investigation with the shipping carrier.
- MyMobile will only arrange replacement of the order once the investigation has been completed and providing the buyer selected transit insurance at the time of the initial purchase.
The DJI Robomaster S1 is an advanced educational robot designed to inspire and empower the next generation of innovators. Equipped with a wide array of features including AI technology, programmable modules, and immersive gameplay, the Robomaster S1 makes learning robotics, coding, and engineering both fun and engaging. Whether for STEM education or personal exploration, the S1 is a versatile tool that brings hands-on experience to the forefront of learning.
-
Advanced AI Capabilities: The DJI Robomaster S1 integrates cutting-edge AI technology, allowing it to recognize gestures, sounds, and even other robots. This feature not only enhances interactivity but also enables users to dive into complex programming and machine learning concepts in a practical, hands-on way.
-
Customizable Programming: The Robomaster S1 supports both Scratch and Python programming languages, making it accessible to beginners while offering the depth needed for advanced users. This flexibility allows students to start with simple commands and progress to writing complex code, fostering a deep understanding of programming logic and robotics.
-
High-Performance Mecanum Wheels: The S1 is equipped with four Mecanum wheels, each with 12 rollers, enabling omnidirectional movement and precision control. This advanced mobility system allows the robot to move in any direction, providing a realistic experience of controlling a robot in challenging environments and scenarios.
-
Immersive Battle Modes and Gameplay: The S1 offers several battle modes, including Race, Free-for-All, and Team battles, where users can compete using strategies and skills they’ve programmed. The built-in blaster and hit detection system add an element of excitement, turning learning into a thrilling game that reinforces teamwork, critical thinking, and problem-solving.
-
HD Camera with AI Vision Technology: The Robomaster S1 features a 5 MP HD camera with a 120° field of view, capable of capturing high-resolution photos and videos. Combined with AI vision technology, the camera enables the robot to track objects, recognize lines, and perform complex maneuvers, making it a powerful tool for learning about image processing and visual algorithms.
The DJI Robomaster S1 is not just a robot; it's an educational powerhouse that combines fun with learning. With AI capabilities, customizable programming, and immersive gameplay, the S1 provides an unparalleled platform for mastering robotics and coding. Whether in a classroom setting or at home, the Robomaster S1 turns STEM education into an exciting adventure
