- Vendor: DJI

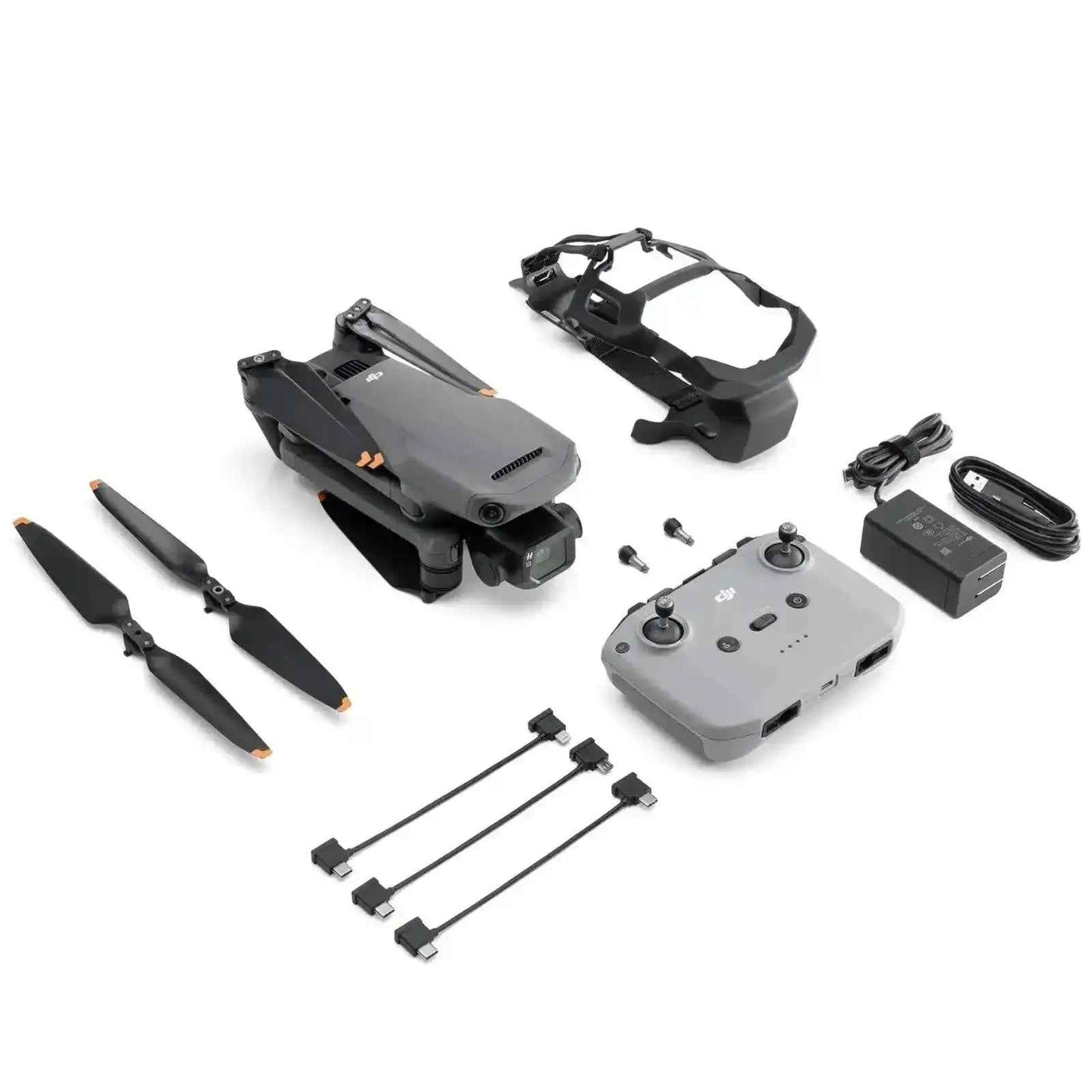

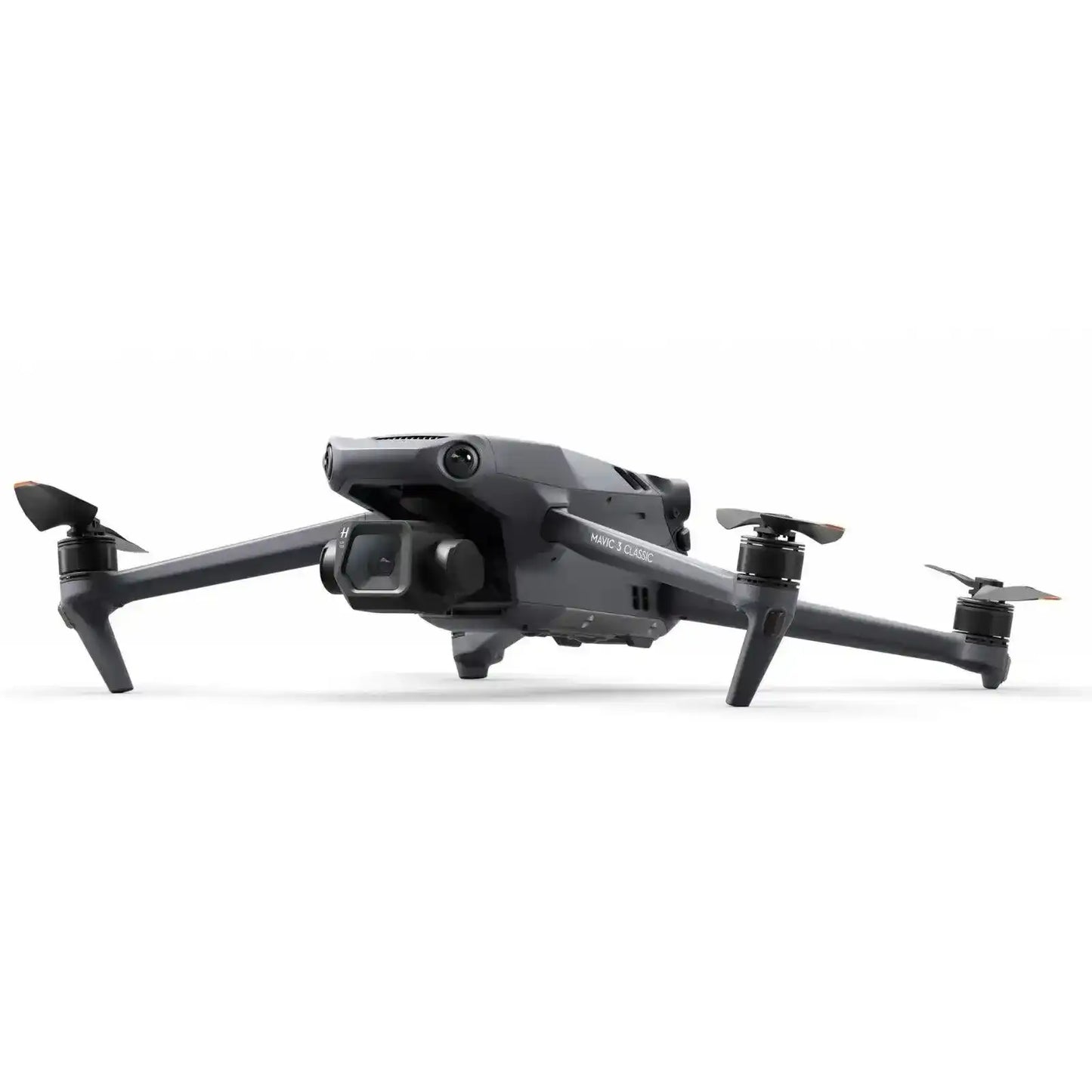

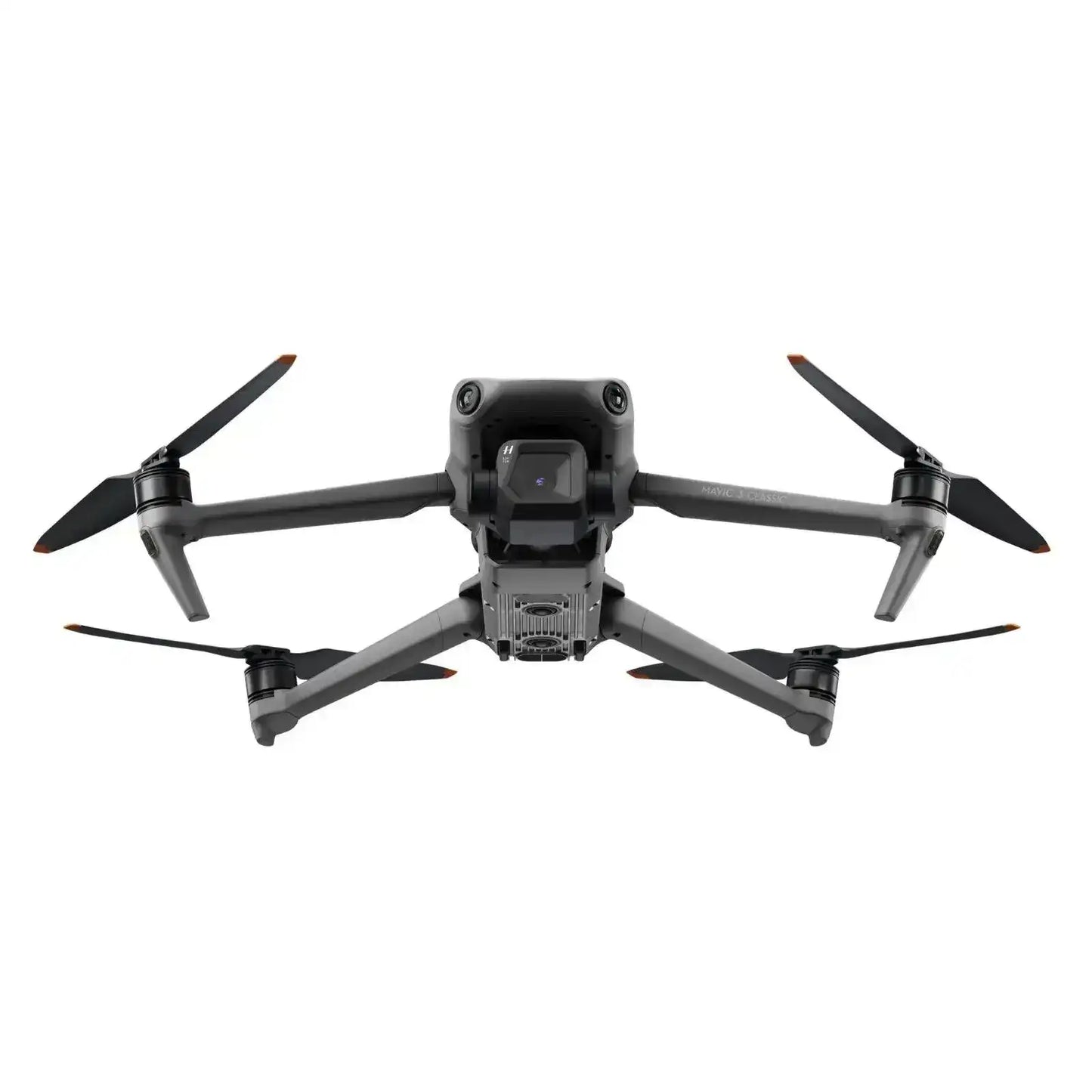

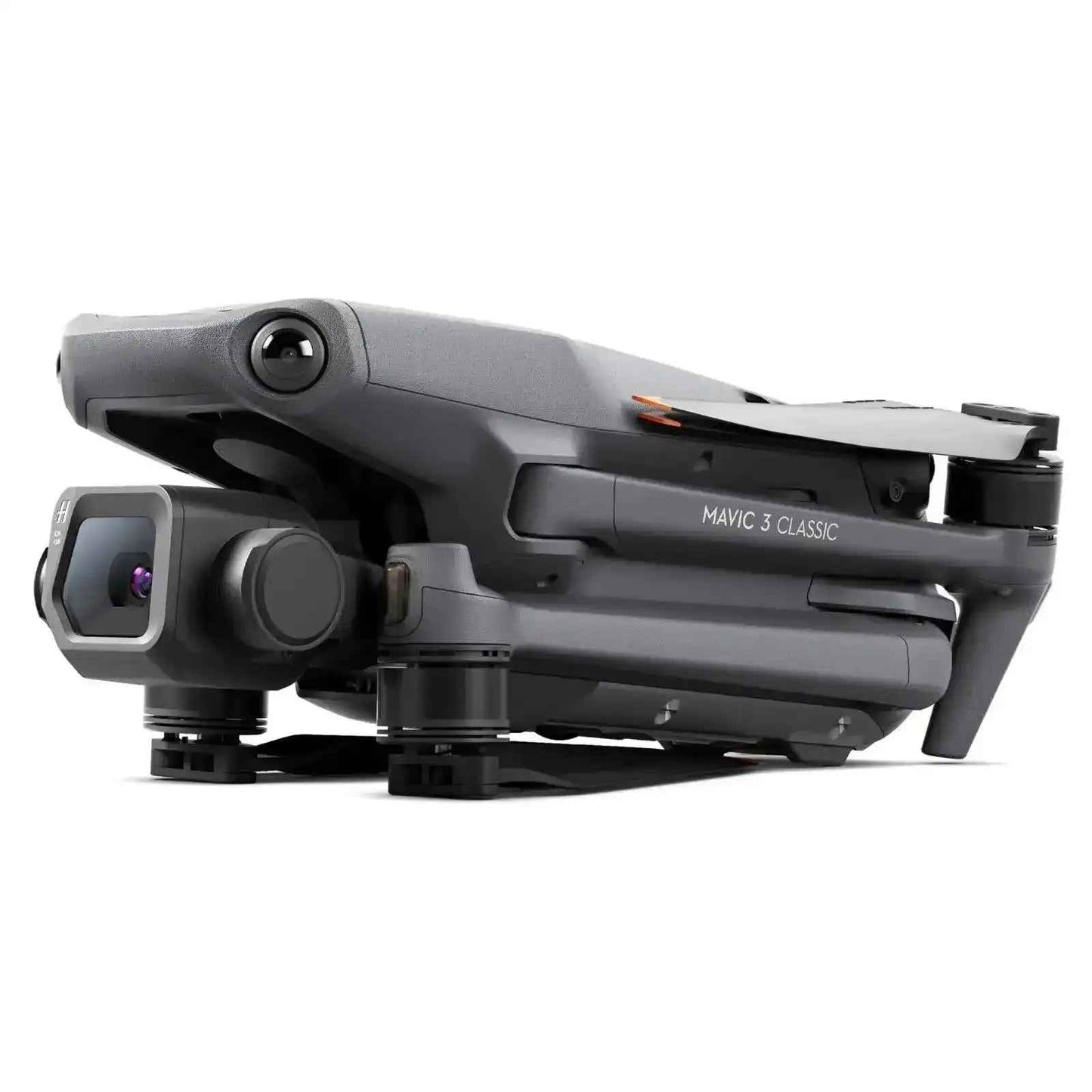

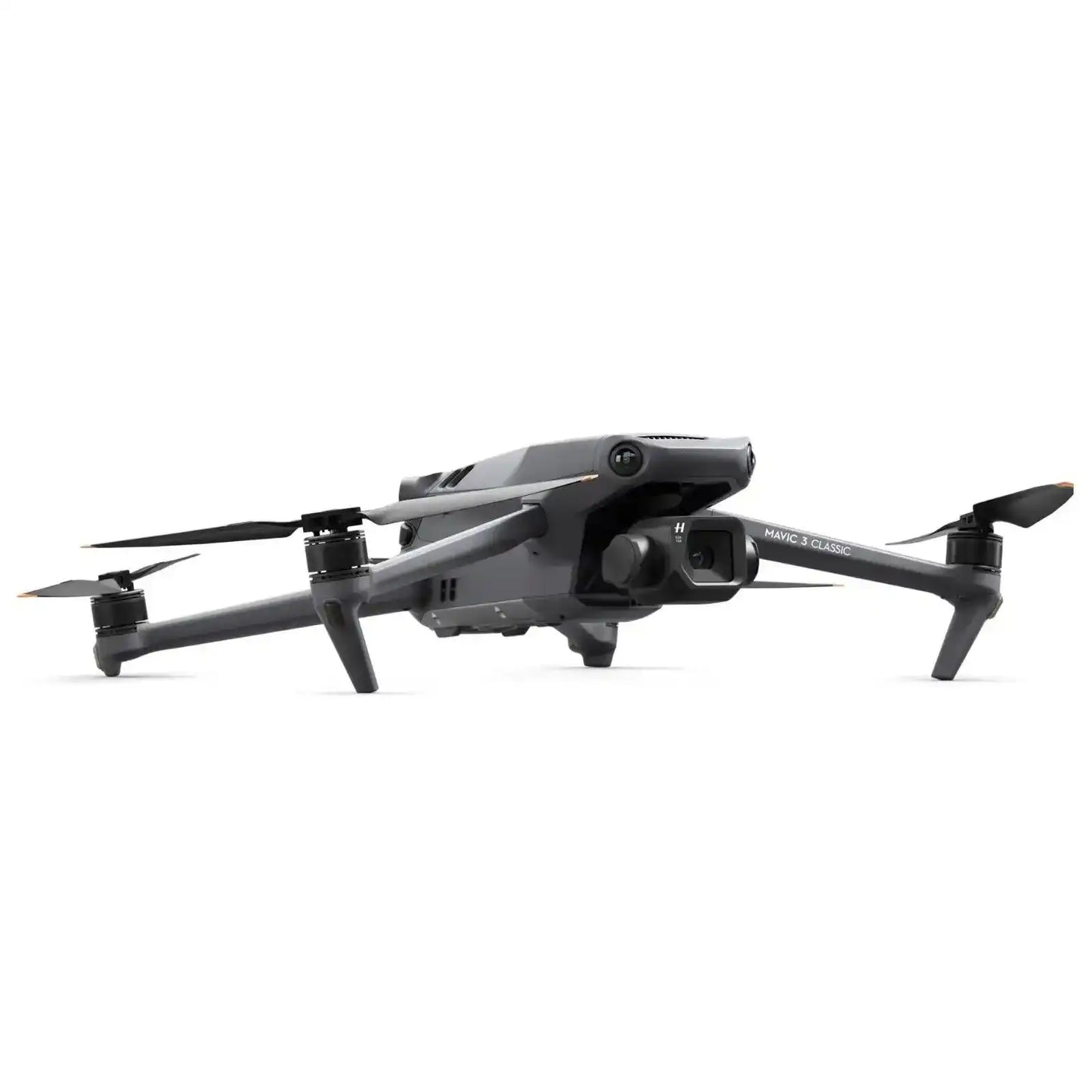

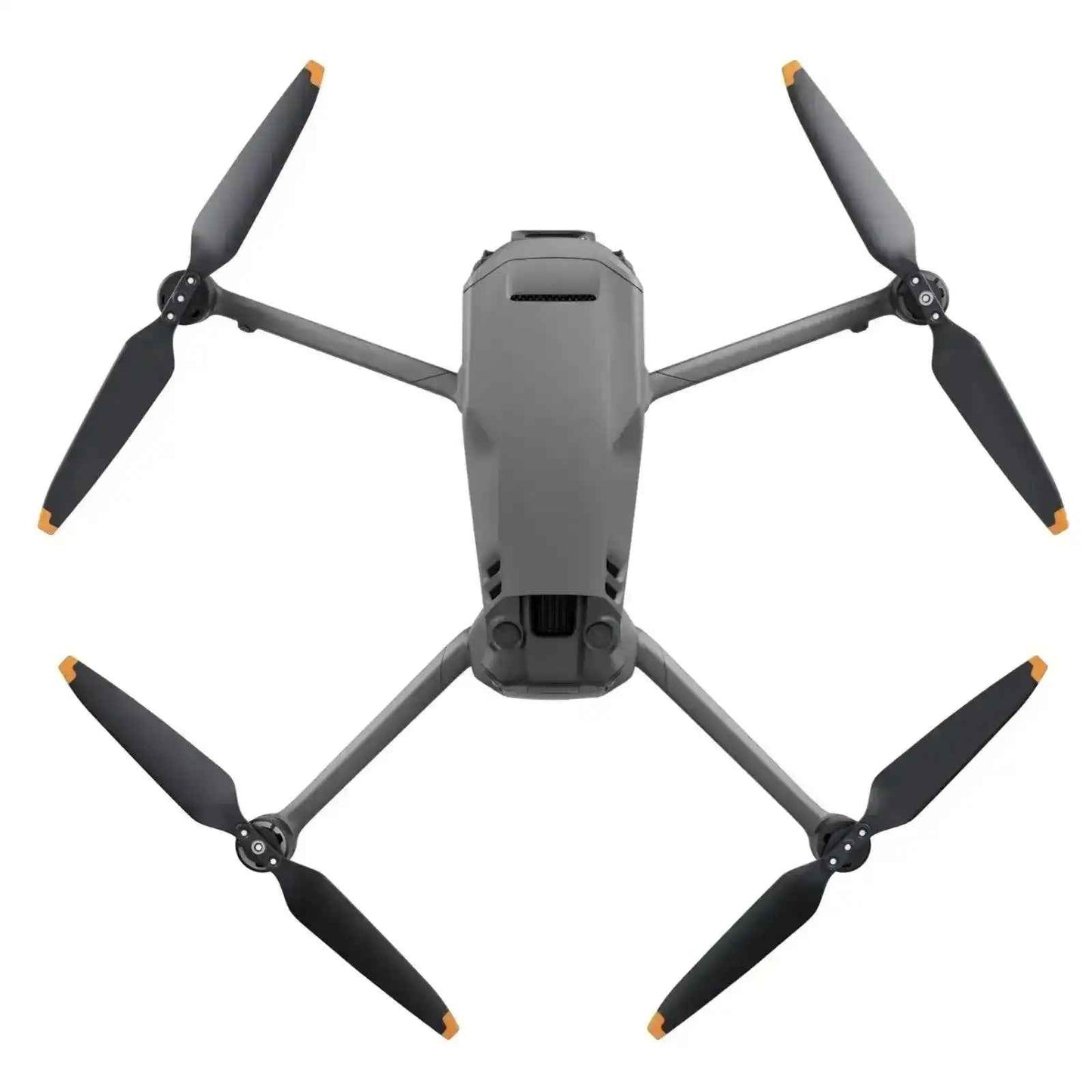

DJI Mavic 3 Classic (DJI RC-N1)
Item specifics
Basic Info | Type | Flying Camera |
---|---|---|
Brand Name | DJI | |
Manufacturer | DJI | |
Model Name | Mavic 3 Classic (DJI RC-N1) |
Body |
Dimension
|
Folded: 221×96.3×90.3 mm Unfolded: 347.5×283×107.7 mm |
---|---|---|
Weight | 895 g |
Aircraft |
Max Ascent Speed
|
8 m/s
|
---|---|---|
Max Descent Speed
|
6 m/s
|
|
Max Horizontal Speed | 21 m/s | |
Max Takeoff Altitude |
6000 m
|
|
Max Flight Time |
46 minutes
|
|
Max Hovering Time | 40 minutes | |
Max Flight Distance | 30 km | |
Max Wind Speed | 12 m/s | |
Max Pitch Angle | 35° | |
GNSS | GPS + Galileo + BeiDou | |
Internal Storage | 8 GB | |
Class | C1 (EU) | |
Operating Temperature | 10° to 40°C (14° to 104°F) |
Camera |
Sensor
|
4/3 CMOS, Effective Pixels: 20 MP |
---|---|---|
Lens
|
FOV: 84°, Format Equivalent: 24 mm, Aperture: f/2.8-f/11, Focus: 1 m to ∞ | |
Shutter Speed
|
Electronic Shutter: 8-1/8000 s | |
Max Image Size
|
5280×3956 | |
Photo Format
|
JPEG/DNG (RAW)
|
|
Video Format
|
MP4/MOV (MPEG-4 AVC/H.264, HEVC/H.265) | |
Max Video Bitrate
|
H.264/H.265: 200 Mbps | |
Supported File System
|
exFAT | |
Color Mode
|
Normal/HLG/D-Log/D-Log | |
Digital Zoom
|
3× (only in Video Mode) | |
ISO Range
|
Video: Normal, Slow-motion: 100-6400 (normal color), 400-1600 (D-Log), 100-1600 (D-Log M), 100-1600 (HLG) Night Mode: 800-12800 (normal color) Photo: 100-6400 |
|
Photography Modes
|
Single Shot: 20 MP, Burst Shooting: 20 MP, 3/5/7 frames, Automatic Exposure Bracketing (AEB): 20 MP, 3/5 frames at 0.7 EV step, Timed: 20 MP, 2/3/5/7/10/15/20/30/60 s | |
Video Resolution
|
H.264/H.265 5.1K: 5120×2700@24/25/30/48/50 fps DCI 4K: 4096×2160@24/25/30/48/50/60/120* fps 4K: 3840×2160@24/25/30/48/50/60/120* fps FHD: 1920×1080@24/25/30/48/50/60/120*/200* fps |
Sensing |
Type
|
Omnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft |
---|---|---|
Lateral
|
Measurement Range: 0.5-25 m Effective Sensing Speed: Flight Speed ≤ 15 m/s FOV: Horizontal 90°, Vertical 85° |
|
Forward
|
Measurement Range: 0.5-20 m Detection Range: 0.5-200 m Effective Sensing Speed: Flight Speed ≤ 15 m/s FOV: Horizontal 90°, Vertical 103° |
|
Backward
|
Measurement Range: 0.5-16 m Effective Sensing Speed: Flight Speed ≤ 12 m/s FOV: Horizontal 90°, Vertical 103° |
|
Upward
|
Measurement Range: 0.2-10 m
Effective Sensing Speed: Flight Speed ≤ 6 m/s FOV: Front and Back 100°, Left and Right 90° |
|
Downward
|
Measurement Range: 0.3-18 m Effective Sensing Speed: Flight Speed ≤ 6 m/s FOV: Front and Back 130°, Left and Right 160° |
|
Operating Environment
|
Forward, Backward, Left, Right, and Upward: surfaces with discernible patterns and adequate lighting (lux >15) Downward: surfaces with discernible patterns, diffuse reflectivity >20% (e.g. walls, trees, people), and adequate lighting (lux >15) |
Video Transmission |
Video Transmission System
|
O3+ |
---|---|---|
Live View Quality
|
Remote Controller: 1080p/30fps, 1080p/60fps |
|
Operating Frequency
|
2.400-2.4835 GHz, 5.725-5.850 GHz | |
Transmitter Power (EIRP) |
2.400-2.4835 GHz: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC)
5.725-5.850 GHz: < 33 dBm (FCC), < 30 dBm (SRRC), < 14 dBm (CE) |
|
Max Transmission Distance (free of interference) | FCC: 15 km, CE: 8 km, SRRC: 8 km, MIC: 8 km | |
Max Transmission Distance (with interference) | Strong Interference: Urban landscape, approx. 1.5-3 km Medium Interference: Suburban landscape, approx. 3-9 km Low Interference: Suburb/seaside, approx. 9-15 km |
|
Max Transmission Distance (obstructed, with interference) | Low Interference and Obstructed by Buildings: approx. 0-0.5 km Low Interference and Obstructed by Trees: approx. 0.5-3 km |
|
Max Download Speed | O3+: 5.5 MB/s (with DJI RC-N1 Remote Controller) , Wi-Fi 6: 80 MB/s* | |
Lowest Latency | 130 ms (with DJI RC-N1 Remote Controller) | |
Antenna | 4 antennas, 2T4R |
DJI RC-N1 |
Max Operating Time
|
Without charging any mobile device: 6 hours When charging a mobile device: 4 hours |
---|---|---|
Max Supported Mobile Device Size
|
180×86×10 mm (L×W×H) | |
Transmitter Power (EIRP)
|
2.400-2.4835 GHz: < 26 dBm (FCC), < 20 dBm (CE/SRRC/MIC) 5.725-5.850 GHz: < 26 dBm (FCC), < 23 dBm (SRRC), < 14 dBm (CE) |
|
Operating Temperature
|
-10° to 40° C (14° to 104° F) |
Gimbal |
Stabilization
|
3-axis mechanical gimbal (tilt, roll, pan) |
---|---|---|
Mechanical Range
|
Tilt: -135° to 100°, Roll: 45° to 45°, Pan: -27° to 27° | |
Max Control Speed (tilt)
|
100°/s | |
Angular Vibration Range
|
±0.007°, | |
Controllable Range
|
Tilt: -90° to 35°, Pan: -5° to 5° |
Charger |
Power
|
65 W
DJI 100W USB-C Power Adapter: 100 W |
---|---|---|
Input |
100-240 V (AC), 47-63 Hz, 2 A
|
|
Output | DJI 65W Portable Charger: USB-C: (5 V, 5 A), (9 V, 5 A), (12 V, 5 A), (15 V, 4.3 A), (20 V, 3.25 A), (5-20 V, 3.25 A) USB-A:5 V, 2 A |
Car Charger |
Power
|
65W
|
---|---|---|
Input |
12.7-16 V, 6.5 A, rated voltage 14 V (DC)
|
|
Output | USB-C: 5 V, 5 A, 9 V, 5 A, 12 V, 5 A, 15 V, 4.3 A, 20 V, 3.25 A, 5-20 V, 3.25 A, USB-A: 5 V, 2 A | |
Charging Temperature | 5° to 40° C (41° to 104° F) |
Charging Hub |
Input
|
USB-C: 5-20 V, max 5 A |
---|---|---|
Output
|
Battery Port: 12-17.6 V, max 5 A | |
Output (charging)
|
Battery Port: 12-17 V, max 5 A | |
Power
|
Battery Charging Hub: 65 W Battery Charging Hub (100W): 100 W |
|
Type
|
Three batteries charged in sequence. | |
Compatibility
|
DJI Mavic 3 Intelligent Flight Battery |
Battery |
Type
|
Li-ion 4S |
---|---|---|
Capacity
|
5000 mAh | |
Weight
|
335.5 g | |
Nominal Voltage
|
15.4 V | |
Charging Voltage
|
17.6 V | |
Energy
|
77 Wh | |
Charging Time
|
Approx. 96 minutes | |
Charging Temperature
|
5° to 40° C (41° to 104° F) |
Shipping policy
MyMobile uses the services of the following carriers to deliver your products anywhere in Australia.
Shipping Type
Warehouse to Retail shop the express to you ( free )
The order is Sent to our warehouse, there we pack all daily orders in one box and send it via DHL. Once we received the orders in the retail shop we inspect, pack and ship via express post, upload the tracking number. This process normally take about 7 to10 days
DHL Direct
The order is Sent to our warehouse, there we pack and send it via DHL direct uploading the tracking number ,This process takes about 5 to 7 days
Australia Post
This postal service reaches every corner of Australia. We use this service for smaller items shipped from our Australian-based warehouses (ie Regular and Registered Post). If available, tracking of parcels can be performed online (http://auspost.com.au/track/).
DHL
This courier service provides expedited deliveries to the majority of areas within Australia. We use this service for parcels shipped from our international-based warehouses (ie International Shipping). A signature is required for deliveries and must be to a physical street address only (ie No PO Boxes). Tracking of parcels can be performed online (http://www.dhl.com.au/en/express/tracking.html).
Fedex
This courier service provides expedited deliveries to the majority of areas within Australia. We use this service for parcels shipped from our international-based warehouses (ie International Shipping). A signature is required for deliveries and must be to a physical street address only (ie No PO Boxes). Tracking of parcels can be performed online (http://www.fedex.com/Tracking?cntry_code=au).
Shipping Terms and Conditions:
- All shipping fees listed are non-negotiable and non-refundable.
- All delivery times are given as a guide only and are in no way guaranteed by MyMobile or the carrier.
- Any failed deliveries due to inaccurate or incomplete shipping details provided by the buyer or unavailability of the receiver will incur a $25.00 re-delivery fee.
- Once an item has been shipped, it is the buyer’s responsibility to liaise with the shipping carrier in relation to the delivery of their parcel.
- Once a parcel is accepted and signed for, it will be deemed to be delivered and will no longer be available to claimed under transit insurance.
- If a parcel is damaged in transit, the receiver must reject the delivery and advise MyMobile and the shipping carrier immediately.
- If a parcel is lost in transit, the buyer must open an investigation with the shipping carrier.
- MyMobile will only arrange replacement of the order once the investigation has been completed and providing the buyer selected transit insurance at the time of the initial purchase.
The DJI Mavic 3 Classic (DJI RC-N1) is engineered to deliver exceptional aerial photography and video capabilities. With its powerful 4/3 CMOS camera, extended flight time, and advanced obstacle sensing, it’s the ideal choice for both professional creators and serious enthusiasts. The included DJI RC-N1 remote controller enhances your control experience, offering long battery life and seamless connectivity.
-
High-Performance 4/3 CMOS Camera: Capture stunning visuals with the 20 MP 4/3 CMOS sensor that provides superior image quality and vibrant colors. The adjustable aperture (f/2.8 to f/11) and electronic shutter speed of up to 1/8000 sec offer flexibility in various lighting conditions, while the 84° FOV ensures a broad perspective for all your creative needs.
-
Extended Flight Time and Impressive Range: Enjoy up to 46 minutes of uninterrupted flight time and a maximum range of 30 km. The Mavic 3 Classic’s advanced flight dynamics allow a max ascent speed of 8 m/s and a max horizontal speed of 21 m/s, giving you the freedom to explore and capture expansive landscapes with confidence.
-
Omnidirectional Obstacle Avoidance: Fly safely with the Mavic 3 Classic's omnidirectional obstacle avoidance system. Equipped with binocular vision sensors and infrared technology, it provides comprehensive sensing in all directions. This system helps prevent collisions and ensures smooth, worry-free flights in complex environments.
-
Superior Video Transmission and Control: The O3+ video transmission system supports live view quality up to 1080p/60fps, with a maximum transmission distance of 15 km (FCC). The DJI RC-N1 remote controller offers robust connectivity, minimal latency, and an impressive battery life, making it easy to stay connected and control your drone even over long distances.
- Advanced Gimbal Stabilization: The 3-axis mechanical gimbal provides exceptional stability, ensuring smooth and shake-free footage. With a tilt range of -135° to 100° and a control speed of 100°/s, the gimbal adapts to your filming needs, whether you're capturing sweeping aerial shots or detailed close-ups.
The DJI Mavic 3 Classic (DJI RC-N1) stands out as a premium choice for high-quality aerial imaging. Combining a top-tier 4/3 CMOS camera, extended flight capabilities, and advanced safety features, it delivers exceptional performance for both professional and recreational use. With its reliable DJI RC-N1 controller and robust build, this drone is ready to elevate your creative projects and exploration adventures.
