- Vendor: DJI

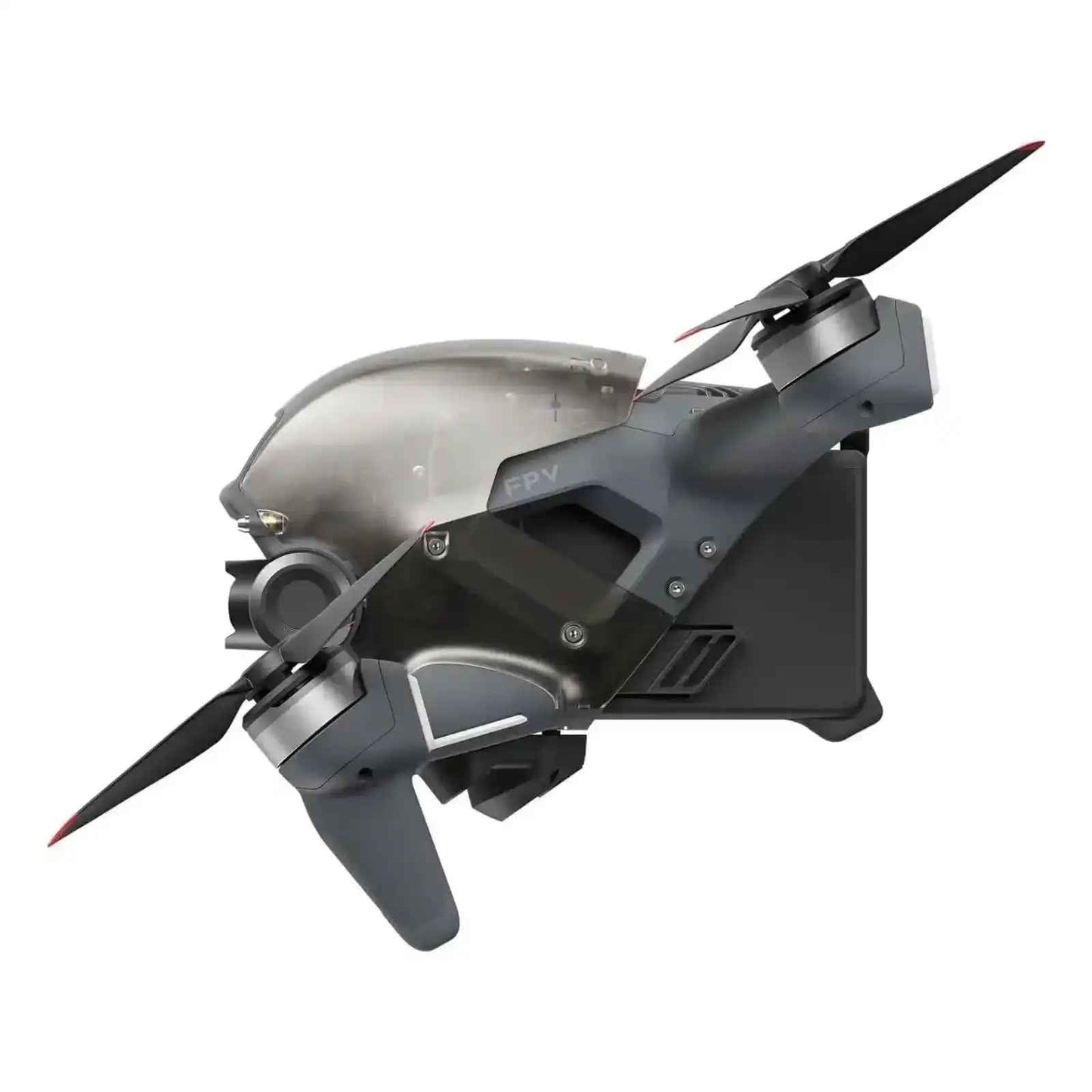

DJI FPV Combo (UK)
Item specifics
Basic Info | Type | Flying Camera |
---|---|---|
Brand Name | DJI | |
Manufacturer | DJI | |
Model Name | DJI FPV Combo |
Body |
Dimension
|
255×312×127 mm (with propellers) 178×232×127 mm (without propellers) |
---|---|---|
Weight | 795 g | |
Diagonal Length | 245 mm |
Aircraft |
Max Ascent Speed
|
M mode: No limit, S mode: 15 m/s, N mode: 8 m/s
|
---|---|---|
Max Descent Speed
|
M mode: No limit, S mode: 10 m/s, N mode: 7 m/s
|
|
Max Horizontal Speed | N mode: 15 m/s, S mode: 27 m/s, M mode: 39 m/s | |
Max Horizontal Acceleration | 0-100 kph: 2 s | |
Max Flight Altitude |
6000 m
|
|
Antennas |
4 Antennas
|
|
Max Flight Time |
20 minutes
|
|
Max Hovering Time | 16 minutes | |
Max Flight Distance | 16.8 km | |
Max Wind Speed | Level 6 | |
Max Pitch Angle | 25° (C mode), 30° (N mode), 35° (S mode) | |
Max Angular Velocity | 200°/s | |
Hovering Accuracy Range | Vertical: ±0.1 m (with vision positioning) ±0.5 m (with GPS positioning) Horizontal: ±0.3 m (with vision positioning) ±1.5 m (with GPS positioning) |
|
Transmitter Power (EIRP) | 2.400-2.4835 GHz FCC: ≤ 31.5dBm, CE: ≤ 20 dBm SRRC: ≤ 20 dBm MIC: ≤ 20 dBm 5.725-5.850 Ghz, FCC: ≤ 31.5 dBm CE: ≤ 14 dBm, SRRC: ≤ 25.5 dBm |
|
GNSS | GPS + GLONASS + Galileo | |
Internal Storage | microSD (up to 256 GB) | |
Operating Temperature | 10° to 40°C (14° to 104°F) |
Camera |
Sensor
|
1/2.3-inch CMOS Effective Pixels: 12 MP |
---|---|---|
Lens
|
FOV: 150° Equivalent Focal Length: 14.66 mm Aperture: f/2.8 Focus Mode: FF Focus Range: 0.6 m to ∞ |
|
Shutter Speed
|
1/50-1/8000 s | |
Max Image Size
|
3840×2160 | |
Photo Format
|
JPEG/DNG (RAW)
|
|
Video Format
|
MP4/MOV (MPEG-4 AVC/H.264, HEVC/H.265) | |
Video Resolution
|
4K: 3840×2160@50/60fps FHD: 1920× 1080@50/60/100/120fps |
|
Supported File System
|
exFAT (recommended) FAT32 |
|
Color Mode
|
Standard, D-Cinelike | |
ISO Range
|
100-12800 | |
Photography Modes
|
Single Shot | |
Max Video Bitrate
|
120 bps |
FPV Remote Controller 2 |
Dimensions
|
190×140×51 mm |
---|---|---|
Weight
|
346 g | |
Operating Time
|
Approx. 9 hours | |
Charging Time
|
2.5 hours | |
Operating Frequency
|
2.400-2.4835 GHz, 5.725-5.850 GHz | |
Transmitter Power (EIRP)
|
2.400-2.4835 GHz
FCC: ≤ 28.5 dBm, CE: ≤ 20 dBm SRRC: ≤ 20 dBm, MIC: ≤ 20 dBm 5.725-5.850 GHz, FCC: ≤ 31.5 dBm CE: ≤ 14 dBm, SRRC: ≤ 19 dBm |
|
Max Transmission Distance
|
10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)
|
Sensing |
Forward
|
Precision Measurement Range: 0.5-18 m Obstacle Sensing: Available in N mode only FOV: Horizontal 56°, Vertical 71° |
---|---|---|
Downward
(Binocular + ToF) |
ToF Effective Measurement Height: 10 m
Precise Hovering Range: 0.5-15 m Vision Sensor Hovering Range 0.5-30 m |
|
Downward Auxiliary Light
|
Single LED | |
Operating Environment
|
Surfaces with discernible patterns Diffuse reflectivity > 20% (e.g. walls, trees, people) Adequate lighting (lux > 15) |
Video Transmission |
Max Video Bitrate
|
50 Mbps |
---|---|---|
Live View Mode
|
Low-Latency Mode: 810p/100fps, with latency down to 30 ms* High-Quality Mode: 810p/60fps, with latency down to 40 ms* |
|
Operating Frequency
|
2.400-2.4835 GHz, 5.725-5.850 GHz | |
Communication Bandwidth | Max 40 MHz | |
Max Transmission Distance
|
10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC) |
Gimbal |
Stabilization
|
3-axis mechanical gimbal (tilt, roll, pan) |
---|---|---|
Mechanical Range
|
Tilt: -135° to 100°, Roll: 45° to 45°, Pan: -27° to 27° | |
Max Control Speed (tilt)
|
100°/s | |
Angular Vibration Range
|
±0.007°, | |
Controllable Range
|
Tilt: -90° to 35°, Pan: -5° to 5° |
DJI FPV Goggles V2 |
Dimension
|
202×126×110 mm (antennas included)
184×122×110 mm (antennas excluded) |
---|---|---|
Weight |
420 g
|
|
Screen Size | 2-inches (×2) | |
Screen Refresh Rate | 144 Hz | |
Operating Frequency | 2.400-2.4835 GHz 5.725-5.850 GHz |
|
Bandwidth | Max 40 MHz | |
Video Format | MOV (Codec: H.264) | |
Audio Transmission | Supported | |
FOV | 30° to 54°, adjustable Image size: 50-100% |
|
Interpupillary Distance Range | 58-70 mm | |
Supported Video Playback Format | MP4, MOV, MKV (H.264; audio formats: AAC-LC, AAC-HE, AC-3, MP3) | |
Live View Modes | Low-Latency Mode: 810p/100fps, with latency down to 30 ms* High-Quality Mode: 810p/60fps, with latency down to 40 ms* |
|
Video Bitrate | 50 Mbps | |
Max Transmission Distance | 10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC) | |
Transmitter Power (EIRP) | 2.400-2.4835 GHz FCC: ≤ 28.5 dBm, CE: ≤ 20 dBm SRRC: ≤ 20 dBm, MIC: ≤ 20 dBm 5.725-5.850 GHz FCC: ≤ 31.5 dBm, CE: ≤ 14 dBm, SRRC: ≤ 19 dBm |
|
Supported SD Cards | microSD (up to 256 GB) | |
Power Input | Dedicated DJI Goggles batteries | |
Operating Temperature | 0° to 40° C (32° to 104° F) |
Goggles Integra |
Dimension
|
With antennas folded: 170×104×75 mm
With antennas unfolded: 205×104×104 mm |
---|---|---|
Weight |
410 g
|
|
Screen Size | 0.49 inch | |
Resolution | 1920x1080 | |
Screen Refresh Rate | 100 Hz | |
Interpupillary Distance Range | 56-72 mm | |
FOV (single screen) | 44° | |
Video Format | MOV | |
Max Video Bitrate | 50 Mbps | |
Supported Video Playback Format | MP4, MOV (codec: H.264, H.265; audio format: AAC, PCM) | |
Operating Frequency | 2.4000-2.4835 GHz, 5.725-5.850 GHz | |
Max Transmission Distance | 10 km (FCC), 6 km (CE), 6 km (SRRC) | |
Live View Mode | 1080p/100fps, with latency down to 30 ms 1080p/60fps, with latency down to 40 ms |
|
Transmitter Power (EIRP) | 2.4000-2.4835 GHz: <30 dBm (FCC), <20 dBm (CE/SRRC/MIC) 5.725-5.850 GHz: <30 dBm (FCC), <23 dBm (SRRC) <14 dBm (CE/KC) |
|
Supported SD Cards | microSD (up to 512 GB) | |
Operating Temperature | -10° to 40° C (14° to 104° F) |
Battery |
Type
|
Li-ion |
---|---|---|
Chemical System
|
LiNiMnCoO2 | |
Capacity
|
2450 mAh | |
Voltage
|
5.6-8.4 V | |
Energy
|
17.64 Wh | |
Operating Time
|
120 Minutes | |
Power | 15 W | |
Charging Temperature
|
5° to 45° C (41° to 113° F) |
Battery |
Type
|
LiPo 2s |
---|---|---|
Capacity
|
1800 mAh | |
Voltage
|
9 V | |
Energy
|
18 W | |
Operating Time
|
110 Minutes | |
Power | 10 W | |
Charging Temperature
|
0° to 45° C (32° to 113° F) |
Battery |
Type
|
LiPo 6S |
---|---|---|
Capacity
|
2000 mAh | |
Weight
|
295 g | |
Nominal c
|
22.2 V | |
Charging Voltage
|
25.2 V | |
Energy
|
44.4 Wh | |
Power
|
86 W | |
Discharge Rate
|
Typical: 7C | |
Charging Temperature
|
5° to 40° C (41° to 104° F) |
Shipping policy
MyMobile uses the services of the following carriers to deliver your products anywhere in Australia.
Shipping Type
Warehouse to Retail shop the express to you ( free )
The order is Sent to our warehouse, there we pack all daily orders in one box and send it via DHL. Once we received the orders in the retail shop we inspect, pack and ship via express post, upload the tracking number. This process normally take about 7 to10 days
DHL Direct
The order is Sent to our warehouse, there we pack and send it via DHL direct uploading the tracking number ,This process takes about 5 to 7 days
Australia Post
This postal service reaches every corner of Australia. We use this service for smaller items shipped from our Australian-based warehouses (ie Regular and Registered Post). If available, tracking of parcels can be performed online (http://auspost.com.au/track/).
DHL
This courier service provides expedited deliveries to the majority of areas within Australia. We use this service for parcels shipped from our international-based warehouses (ie International Shipping). A signature is required for deliveries and must be to a physical street address only (ie No PO Boxes). Tracking of parcels can be performed online (http://www.dhl.com.au/en/express/tracking.html).
Fedex
This courier service provides expedited deliveries to the majority of areas within Australia. We use this service for parcels shipped from our international-based warehouses (ie International Shipping). A signature is required for deliveries and must be to a physical street address only (ie No PO Boxes). Tracking of parcels can be performed online (http://www.fedex.com/Tracking?cntry_code=au).
Shipping Terms and Conditions:
- All shipping fees listed are non-negotiable and non-refundable.
- All delivery times are given as a guide only and are in no way guaranteed by MyMobile or the carrier.
- Any failed deliveries due to inaccurate or incomplete shipping details provided by the buyer or unavailability of the receiver will incur a $25.00 re-delivery fee.
- Once an item has been shipped, it is the buyer’s responsibility to liaise with the shipping carrier in relation to the delivery of their parcel.
- Once a parcel is accepted and signed for, it will be deemed to be delivered and will no longer be available to claimed under transit insurance.
- If a parcel is damaged in transit, the receiver must reject the delivery and advise MyMobile and the shipping carrier immediately.
- If a parcel is lost in transit, the buyer must open an investigation with the shipping carrier.
- MyMobile will only arrange replacement of the order once the investigation has been completed and providing the buyer selected transit insurance at the time of the initial purchase.
DJI FPV Combo, a cutting-edge drone system designed for high-speed aerial adventures. Combining the power of a racing drone with the ease of a camera drone, the DJI FPV offers an exhilarating flight experience that captures stunning 4K video. Whether you're an experienced pilot or a beginner, the DJI FPV Combo delivers unmatched performance, intuitive controls, and advanced safety features, making it the ultimate choice for aerial enthusiasts.
-
High-Speed Performance: The DJI FPV Combo is built for speed, reaching a maximum horizontal speed of 39 m/s in M mode. With the ability to accelerate from 0 to 100 kph in just 2 seconds, this drone delivers an adrenaline-pumping experience that will take your aerial adventures to new heights.
-
Stunning 4K Video Capture: Equipped with a 1/2.3-inch CMOS sensor and a 150° wide-angle lens, the DJI FPV captures breathtaking 4K video at 60fps. The advanced gimbal stabilization ensures smooth footage, while the D-Cinelike color profile allows for cinematic post-processing, making every flight a visual masterpiece.
-
Immersive First-Person View (FPV): The DJI FPV Goggles V2 provide an unparalleled immersive experience with a low-latency video transmission of up to 810p/100fps. With adjustable FOV and a high refresh rate, the goggles deliver crystal-clear live views, making you feel like you're in the cockpit of your drone.
-
Intelligent Flight Modes and Safety Features: The DJI FPV Combo offers multiple flight modes, including M, S, and N modes, catering to pilots of all skill levels. The built-in safety features, such as emergency brake and hover, obstacle sensing, and return-to-home, ensure a safe and controlled flight experience, even at high speeds.
-
Extended Flight Time and Range: With a maximum flight time of 20 minutes and a transmission range of up to 10 km, the DJI FPV Combo allows you to explore vast distances with confidence. The robust battery and efficient power management keep you in the air longer, capturing more of the action.
The DJI FPV Combo offers a thrilling blend of speed, performance, and cinematic capabilities, making it the ultimate choice for aerial enthusiasts. With immersive FPV goggles, stunning 4K video capture, and advanced safety features, this drone system takes your flying experience to the next level, ensuring every flight is as exciting as it is safe.
