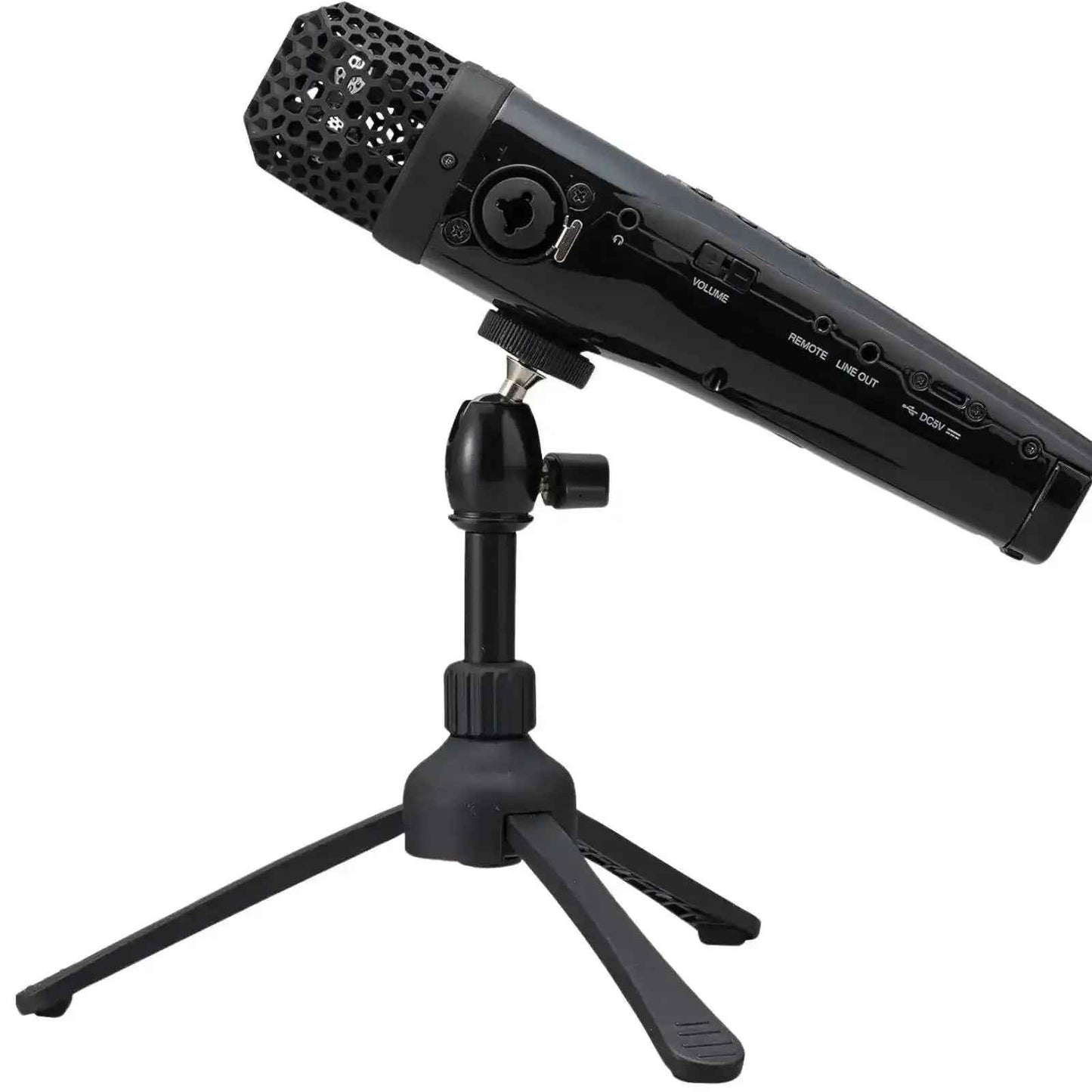

Zoom M4 MicTrak Stereo Microphone and Recorder
Item specifics
Basic Info | Type | Stereo Microphone |
---|---|---|
Brand Name | Zoom | |
Manufacturer | Zoom | |
Model Name | M4 MicTrak |
Mic |
Type
|
Unidirectional |
---|---|---|
Sensitivity
|
-42 dB, 1 kHz at 1 Pa | |
Gain |
Adjustment unnecessary
|
|
SPL |
135 dB SPL
|
Ext Mic |
Connectors
|
1/8" stereo mini jack |
---|---|---|
Gain |
Adjustment unnecessary
|
|
Impedance |
2 kΩ or more
|
XLR/TRS |
Connector
|
XLR (2:HOT)/TRS combo jacks |
---|---|---|
Gain
|
Adjustment unnecessary | |
Impedance |
MIC: 3 kΩ or more LINE: 3 kΩ or more
|
|
Input Level |
MIC: +4 dBu LINE: +24 dBu
|
|
Phantom Power |
+24/+48V 10mA
|
|
Noise |
−127 dBu
|
Line Out |
Connector
|
1/8" stereo mini jack |
---|---|---|
Output Level |
+1 dBu
|
Headphone |
Connector
|
1/8" stereo mini jack |
---|---|---|
Output Level |
20 mW +20 mW(32 Ω load), 500mW/8Ω mono speaker
|
Specifications | Recording Media | 4GB–32GB microSDHC cards 64GB–1TB microSDXC cards |
---|---|---|
Supported Formats | -44.1/47.952/48/48.048/96/192kHz -32-bit float -mono/stereo -BWF and iXML | |
Recording Tracks | 4 | |
Display | 1.54" full color (240 × 240) | |
Remote | RC2/RC4/RCH-5/RCH-6 |
USB | Connector | USB Type-C |
---|---|---|
Mass Storage | USB 2.0 High Speed | |
Audio Interface | USB 2.0 High Speed | |
Sampling Rate | 48kHz | |
Bit Rate | 24-bit/32-bit float | |
Channels | 4 in/2 out |
Timecode | Connector | 1/8" stereo mini jack |
---|---|---|
Modes | Off Int Free Run, Int Record Run, Int RTC Run Ext | |
Frame Rates | 23.976ND 24ND 25ND 29.97ND 29.97D 30ND 30D | |
Precision | ±0.2 ppm | |
Input Level | 0.2 – 5.0 Vpp | |
Output Level | 3.3 Vpp | |
INput Imp | 4.6 kΩ | |
Output Imp | 50 Ω or less |
Power | Battery | 4 AA |
---|---|---|
AC Adapter | ZOOM AD-17 (DC 5 V/1 A) • USB bus power is supported. |
Others | Built-In Speaker | 500mW/8Ω mono speaker |
---|---|---|
Display | LCD: 1.54" full color (240 × 240) |
Shipping policy
MyMobile uses the services of the following carriers to deliver your products anywhere in Australia.
Shipping Type
Warehouse to Retail shop the express to you ( free )
The order is Sent to our warehouse, there we pack all daily orders in one box and send it via DHL. Once we received the orders in the retail shop we inspect, pack and ship via express post, upload the tracking number. This process normally take about 7 to10 days
DHL Direct
The order is Sent to our warehouse, there we pack and send it via DHL direct uploading the tracking number ,This process takes about 5 to 7 days
Australia Post
This postal service reaches every corner of Australia. We use this service for smaller items shipped from our Australian-based warehouses (ie Regular and Registered Post). If available, tracking of parcels can be performed online (http://auspost.com.au/track/).
DHL
This courier service provides expedited deliveries to the majority of areas within Australia. We use this service for parcels shipped from our international-based warehouses (ie International Shipping). A signature is required for deliveries and must be to a physical street address only (ie No PO Boxes). Tracking of parcels can be performed online (http://www.dhl.com.au/en/express/tracking.html).
Fedex
This courier service provides expedited deliveries to the majority of areas within Australia. We use this service for parcels shipped from our international-based warehouses (ie International Shipping). A signature is required for deliveries and must be to a physical street address only (ie No PO Boxes). Tracking of parcels can be performed online (http://www.fedex.com/Tracking?cntry_code=au).
Shipping Terms and Conditions:
- All shipping fees listed are non-negotiable and non-refundable.
- All delivery times are given as a guide only and are in no way guaranteed by MyMobile or the carrier.
- Any failed deliveries due to inaccurate or incomplete shipping details provided by the buyer or unavailability of the receiver will incur a $25.00 re-delivery fee.
- Once an item has been shipped, it is the buyer’s responsibility to liaise with the shipping carrier in relation to the delivery of their parcel.
- Once a parcel is accepted and signed for, it will be deemed to be delivered and will no longer be available to claimed under transit insurance.
- If a parcel is damaged in transit, the receiver must reject the delivery and advise MyMobile and the shipping carrier immediately.
- If a parcel is lost in transit, the buyer must open an investigation with the shipping carrier.
- MyMobile will only arrange replacement of the order once the investigation has been completed and providing the buyer selected transit insurance at the time of the initial purchase.
Zoom M4 MicTrak Stereo Microphone and Recorder is a versatile and powerful recording solution designed by Zoom. With a unidirectional microphone, XLR/TRS combo jacks, timecode functionality, and advanced features like 32-bit float recording, the M4 MicTrak is suitable for a wide range of professional audio applications.
-
Unidirectional Microphone: The M4 MicTrak features a high-sensitivity unidirectional microphone with an SPL of 135 dB, ensuring detailed and clear audio capture in various recording scenarios.
-
Connectivity: Equipped with a 1/8" stereo mini jack for an external microphone, the M4 MicTrak allows additional input options with no gain adjustment necessary.
-
XLR/TRS Phantom Power: The XLR/TRS combo jacks support both microphone and line-level inputs, with +24/+48V phantom power available, accommodating a wide range of professional microphones.
-
Float Recording: Supporting recording at 32-bit float, the M4 MicTrak ensures extended dynamic range and allows for precise adjustments during post-production for optimal audio quality.
- Timecode: The M4 MicTrak includes timecode features with various modes and frame rates, enhancing synchronization capabilities for professional audio and video production.
Zoom M4 MicTrak Stereo Microphone and Recorder stands out with its high-quality unidirectional microphone, versatile external microphone connectivity, XLR/TRS combo jacks with phantom power, 32-bit float recording, and advanced timecode functionality. Whether for film production, music recording, or field applications, the M4 MicTrak provides professionals with a feature-rich and reliable solution for capturing top-notch audio.
