- Vendor: ZOOM
Zoom H1 XLR Portable Audio Recorder for Video
Item specifics
Basic Info | Type | Audio Recorder |
---|---|---|
Brand Name | Zoom | |
Manufacturer | Zoom | |
Model Name | Zoom H1 XLR |
General | Type |
Portable Audio Recorder for Video
|
---|---|---|
Design | Lightweight, comfortable and tough. |
Body | Depth | 107 mm |
---|---|---|
Width | 62.1 mm | |
Hight |
39.3 mm
|
|
Weight |
164 g
|
Specification | Connectors | 2 XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT) |
---|---|---|
Phantom power |
+48 V
|
Input | Gain |
NG, CMP, EFX, AMP, IR, EQ, MOD, DLY, RGB, P.L
|
---|---|---|
Impedance | MIC: 2.7 kΩ or more LINE: 1 kΩ or more |
|
Max Input Level |
MIC: +4 dBu
LINE: +24 dBu |
|
Equivalent Input Noise |
MIC: –122 dBu or less (IHF-A) at 150Ω input
LINE: –100 dBu or less (IHF-A) at 600Ω input |
MIC/LINE IN jack | Connector |
Stereo mini jack
|
---|---|---|
Input impedance |
2 kΩ
|
|
Plug-in power |
2.5 V
|
Output | Connector |
Stereo mini jack
|
---|---|---|
Max Output Level
|
20 mW + 20 mW (when 32 Ω load)
|
|
Output Impedance |
10 Ω or less
|
Built-in Speaker | Type |
20 mm × 30 mm elliptical dynamic speaker
|
---|---|---|
Effective Max Output
|
Supplied with USB-C ⭢ USB-A cable
|
Recorder | Recording Format |
WAV
44.1, 48 or 96 kHz / 32-bit float Stereo / Mono BWF and iXML formats supported |
---|---|---|
Recording Media
|
4 – 32GB cards compatible with the microSDHC specification
64GB – 1TB cards compatible with the microSDXC specification |
Display | OLED |
128 x 64
|
---|
USB | Connector |
USB Type-C
Use a USB cable that supports data transfer |
---|---|---|
File transfer
|
USB 2.0 High Speed
|
Audio Interface |
Input & Output |
2 in / 2 out (Stereo)
|
---|---|---|
Sampling Freq
|
44.1, 48 kHz
|
|
Bit depths
|
16-bit, 32-bit float
|
Power | 2 AA Batteries |
Alkaline, Lithium, or Rechargeable NiMH
|
---|---|---|
AC Adapter
|
ZOOM AD-17: DC 5 V/1 A
USB bus power is supported |
Shipping policy
MyMobile uses the services of the following carriers to deliver your products anywhere in Australia.
Shipping Type
Warehouse to Retail shop the express to you ( free )
The order is Sent to our warehouse, there we pack all daily orders in one box and send it via DHL. Once we received the orders in the retail shop we inspect, pack and ship via express post, upload the tracking number. This process normally take about 7 to10 days
DHL Direct
The order is Sent to our warehouse, there we pack and send it via DHL direct uploading the tracking number ,This process takes about 5 to 7 days
Australia Post
This postal service reaches every corner of Australia. We use this service for smaller items shipped from our Australian-based warehouses (ie Regular and Registered Post). If available, tracking of parcels can be performed online (http://auspost.com.au/track/).
DHL
This courier service provides expedited deliveries to the majority of areas within Australia. We use this service for parcels shipped from our international-based warehouses (ie International Shipping). A signature is required for deliveries and must be to a physical street address only (ie No PO Boxes). Tracking of parcels can be performed online (http://www.dhl.com.au/en/express/tracking.html).
Fedex
This courier service provides expedited deliveries to the majority of areas within Australia. We use this service for parcels shipped from our international-based warehouses (ie International Shipping). A signature is required for deliveries and must be to a physical street address only (ie No PO Boxes). Tracking of parcels can be performed online (http://www.fedex.com/Tracking?cntry_code=au).
Shipping Terms and Conditions:
- All shipping fees listed are non-negotiable and non-refundable.
- All delivery times are given as a guide only and are in no way guaranteed by MyMobile or the carrier.
- Any failed deliveries due to inaccurate or incomplete shipping details provided by the buyer or unavailability of the receiver will incur a $25.00 re-delivery fee.
- Once an item has been shipped, it is the buyer’s responsibility to liaise with the shipping carrier in relation to the delivery of their parcel.
- Once a parcel is accepted and signed for, it will be deemed to be delivered and will no longer be available to claimed under transit insurance.
- If a parcel is damaged in transit, the receiver must reject the delivery and advise MyMobile and the shipping carrier immediately.
- If a parcel is lost in transit, the buyer must open an investigation with the shipping carrier.
- MyMobile will only arrange replacement of the order once the investigation has been completed and providing the buyer selected transit insurance at the time of the initial purchase.

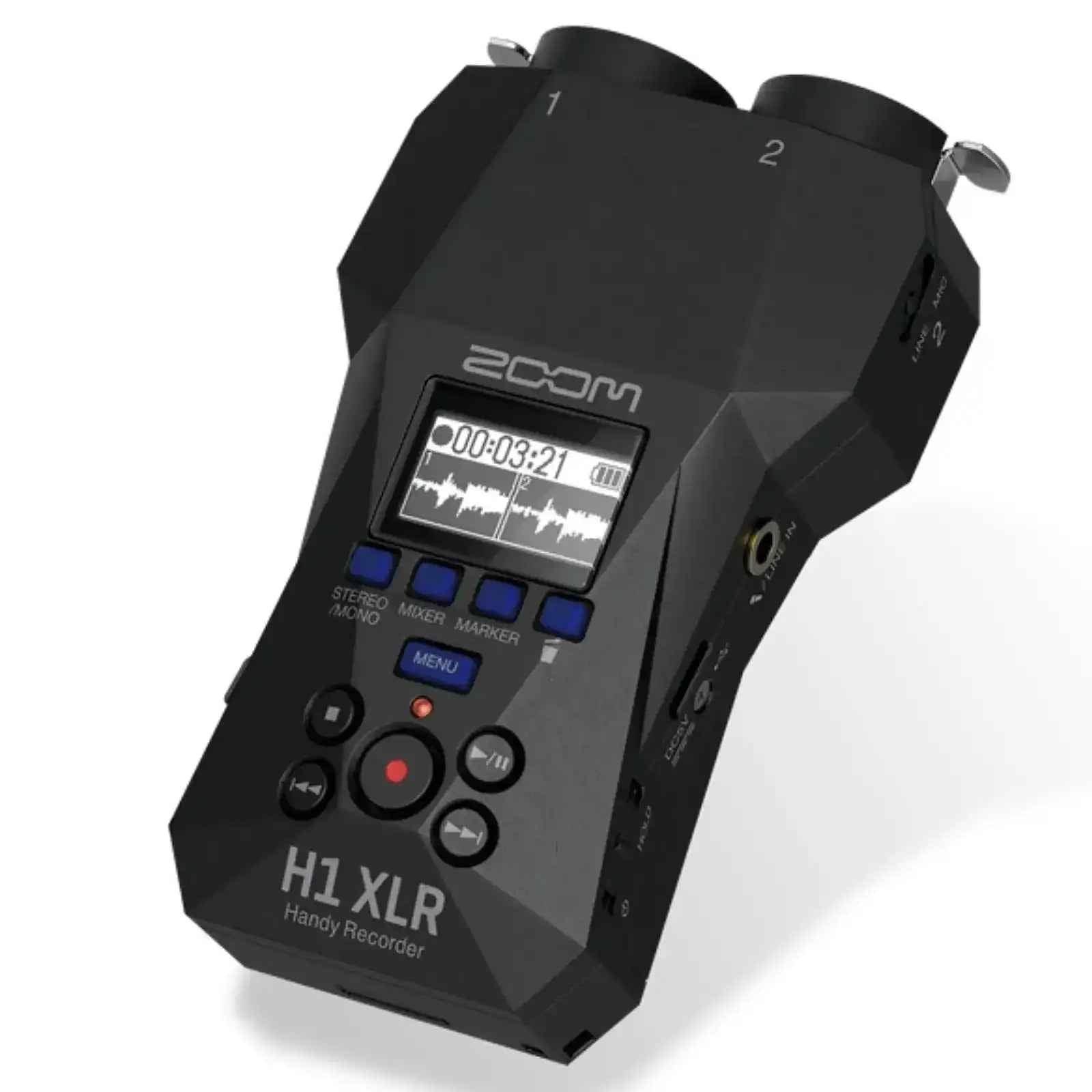

Zoom H1 XLR is a compact and powerful audio recorder specifically designed for capturing professional-grade audio for video production. With its rugged yet lightweight design, it offers unparalleled convenience for filmmakers, content creators, and audio professionals. Equipped with dual XLR/TRS combo inputs and versatile connectivity options, the H1 XLR ensures studio-quality recordings in various environments.
-
High-Quality Dual XLR/TRS Combo Inputs: Zoom H1 XLR Equipped with 2 XLR/TRS combo jacks supporting phantom power (+48V), the recorder ensures compatibility with professional microphones and instruments. These connectors offer exceptional flexibility for a wide range of recording scenarios.
-
Versatile Recording Formats and Media Support: Record audio in WAV format with options for 44.1, 48, or 96 kHz at 32-bit float resolution. It supports BWF and iXML formats, making it ideal for post-production workflows. The device is compatible with microSDHC and microSDXC cards, allowing up to 1TB of storage.
-
Compact and Intuitive Design: Weighing just 164 grams, the Zoom H1 XLR is highly portable. Its OLED display ensures clear visibility, while straightforward controls make recording and navigating settings easy, even for beginners.
-
Built-in USB-C for Data Transfer and Power: The USB Type-C port provides fast file transfer and supports USB bus power. This ensures seamless integration with computers and other devices, making the recorder highly adaptable to modern workflows.
-
Exceptional Power and Connectivity Options: Operates on 2 AA batteries (alkaline, lithium, or NiMH rechargeable) or an optional AC adapter, ensuring extended recording sessions. Its built-in speaker allows for quick playback, and it includes headphone and line-out jacks for monitoring and connecting to external devices.
Zoom H1 XLR Portable Audio Recorder delivers professional-quality audio in a compact, user-friendly design. Whether you're recording in the studio, on location, or for a video project, its versatility, advanced features, and robust build make it an essential tool for creators who demand high-quality results.
