- Vendor: TASCAM

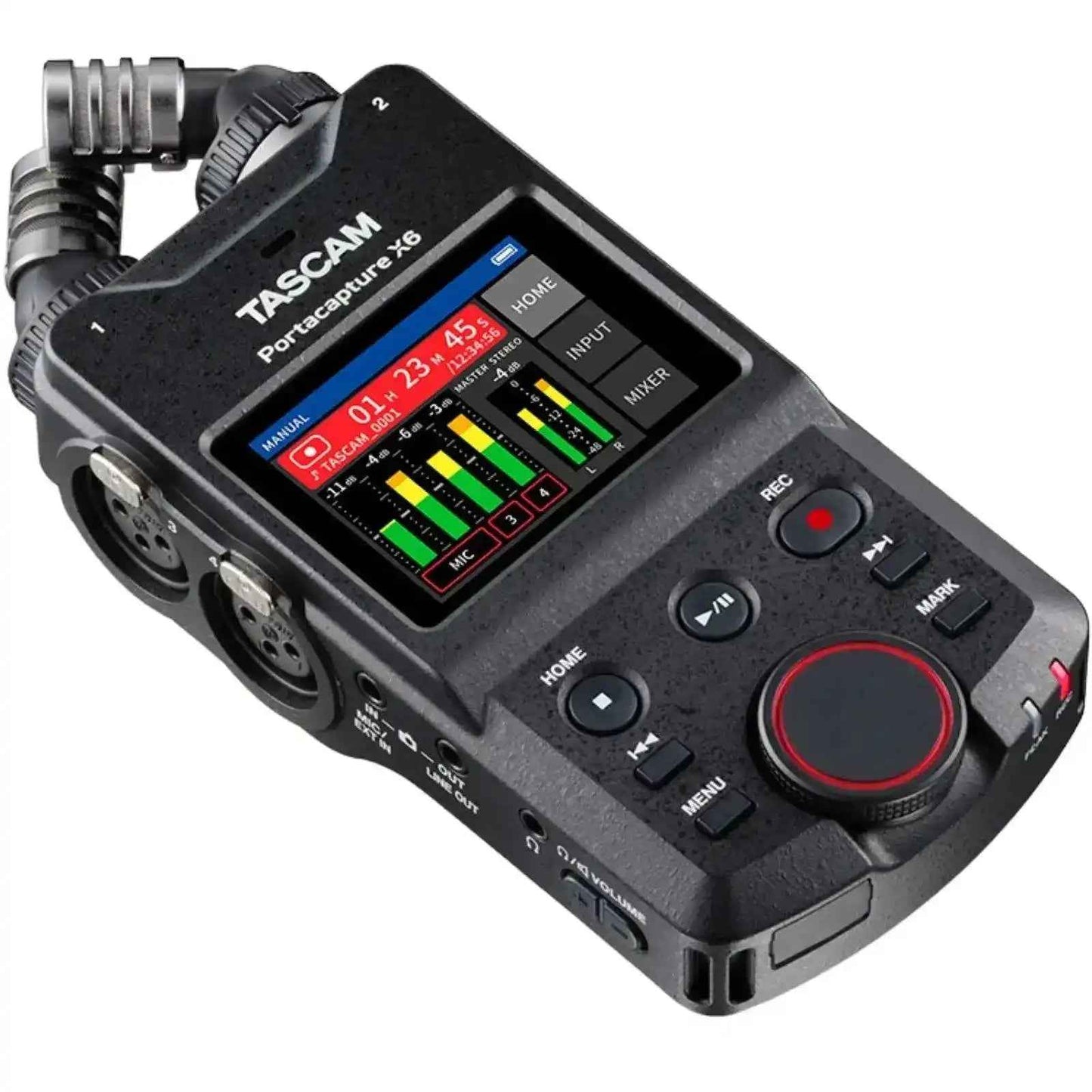

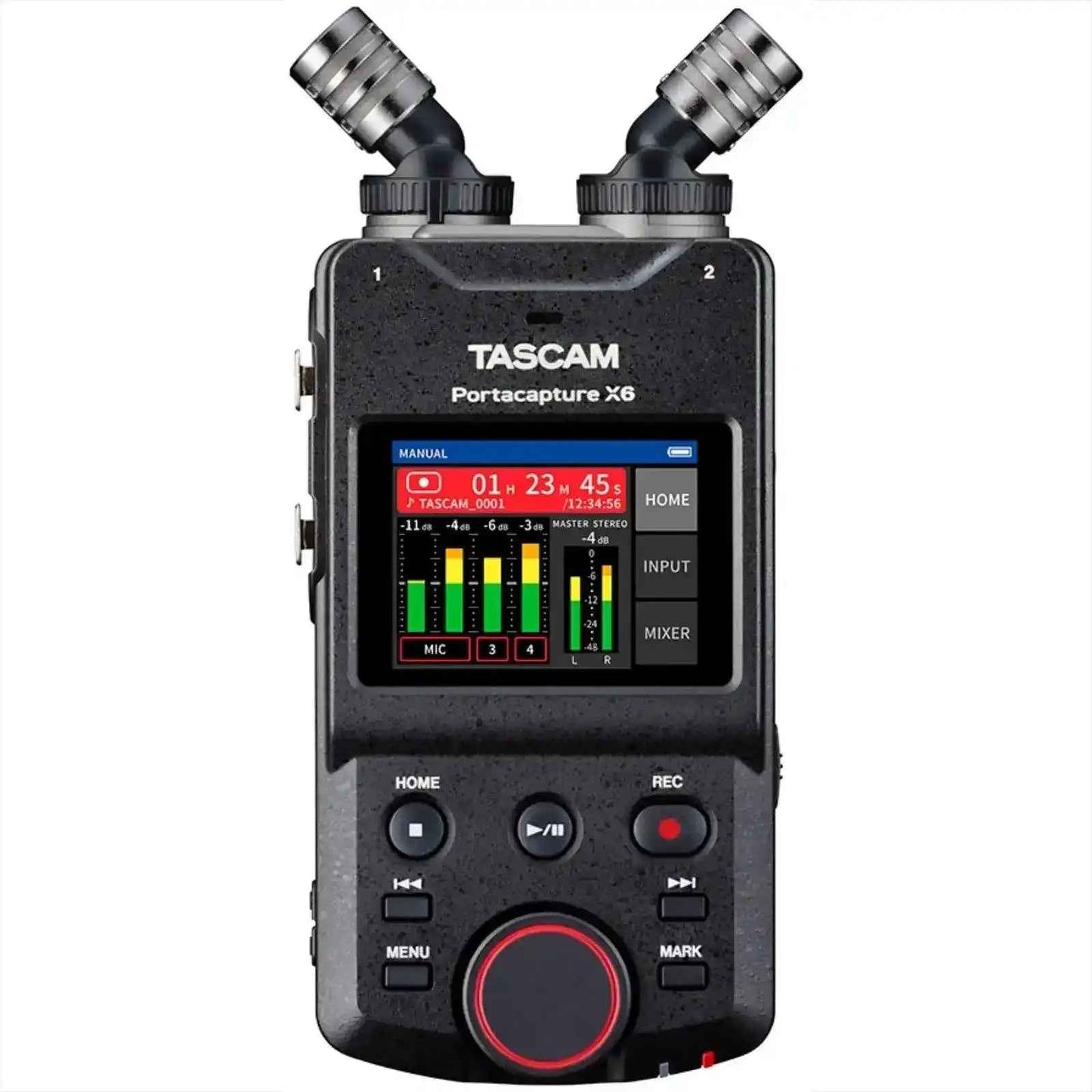

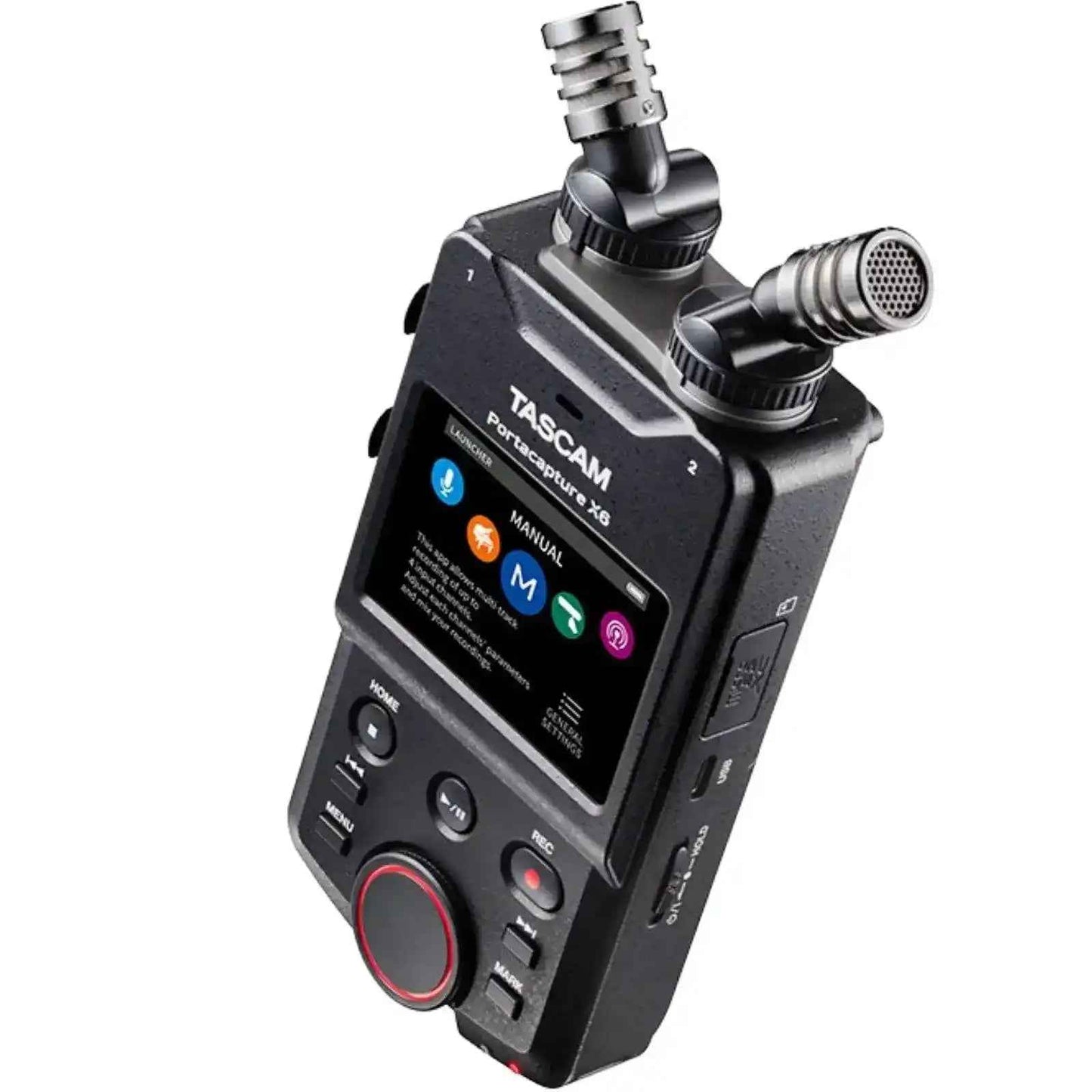

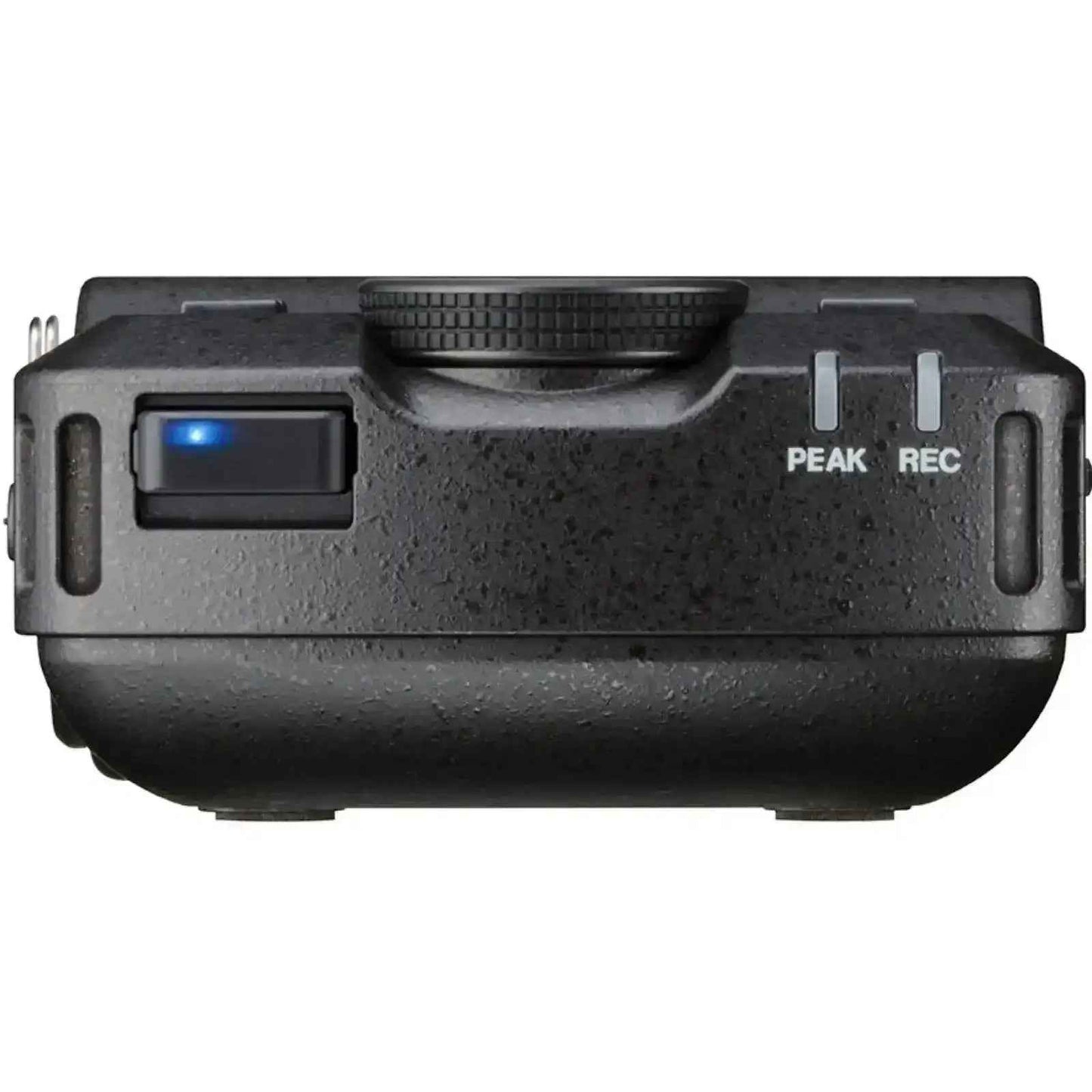

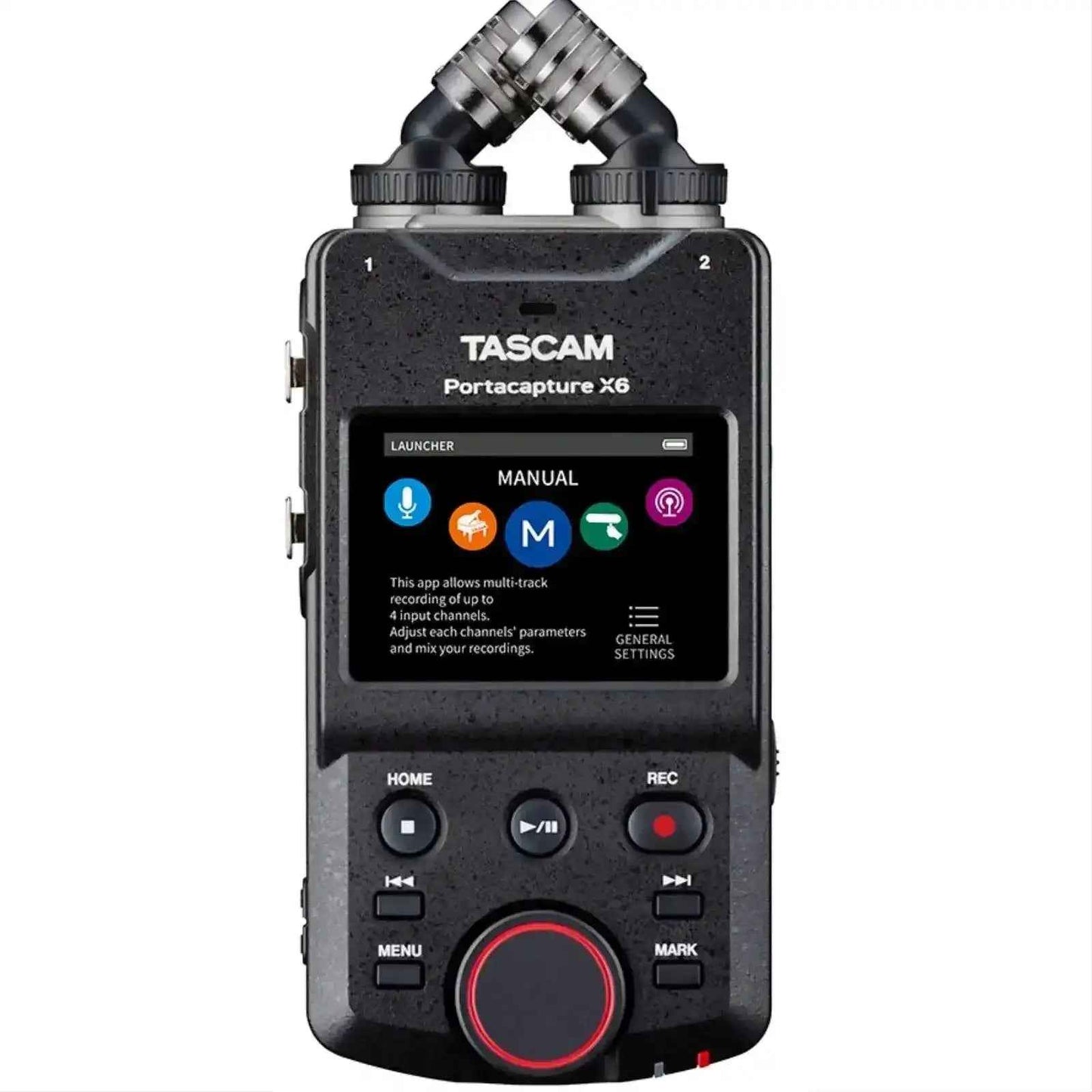

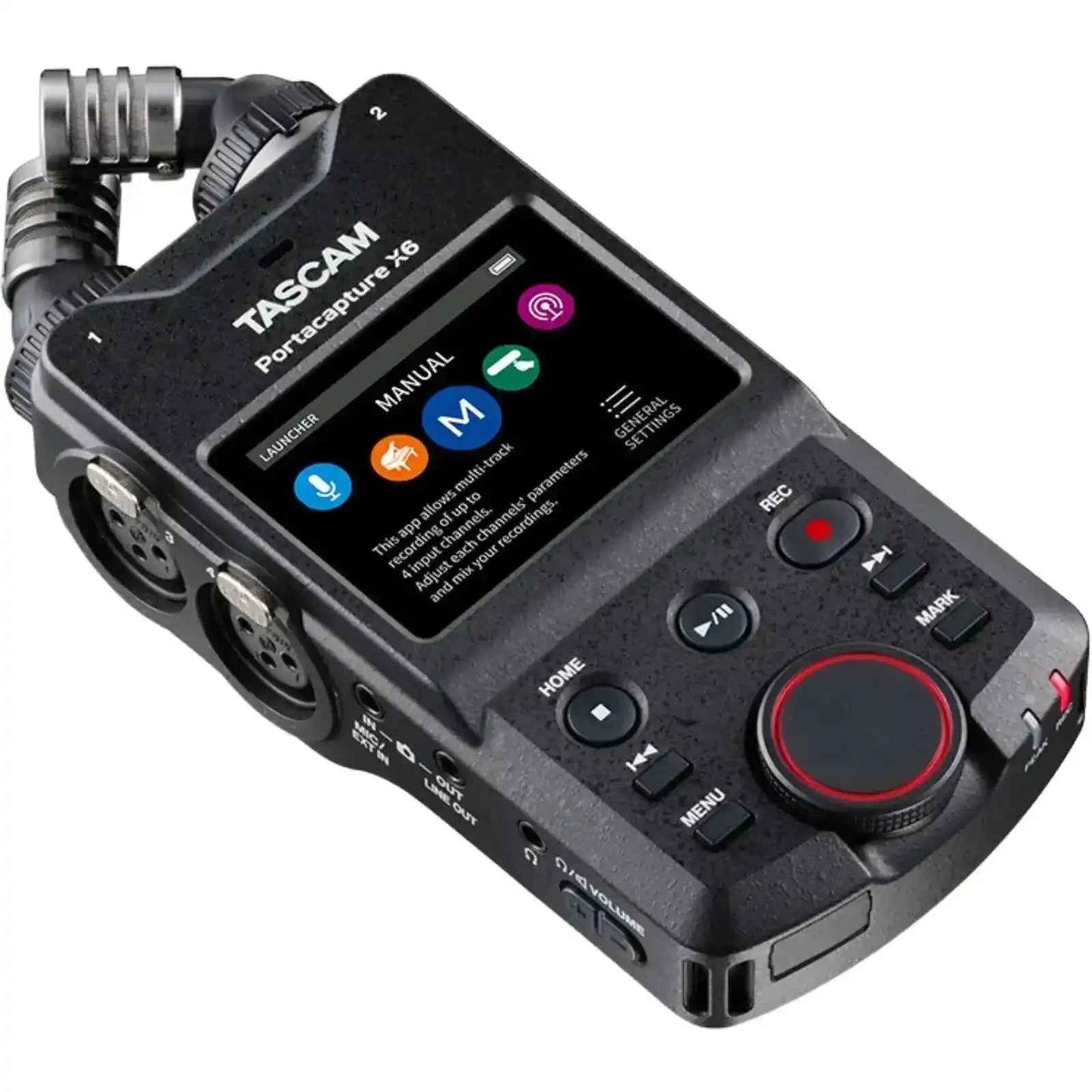

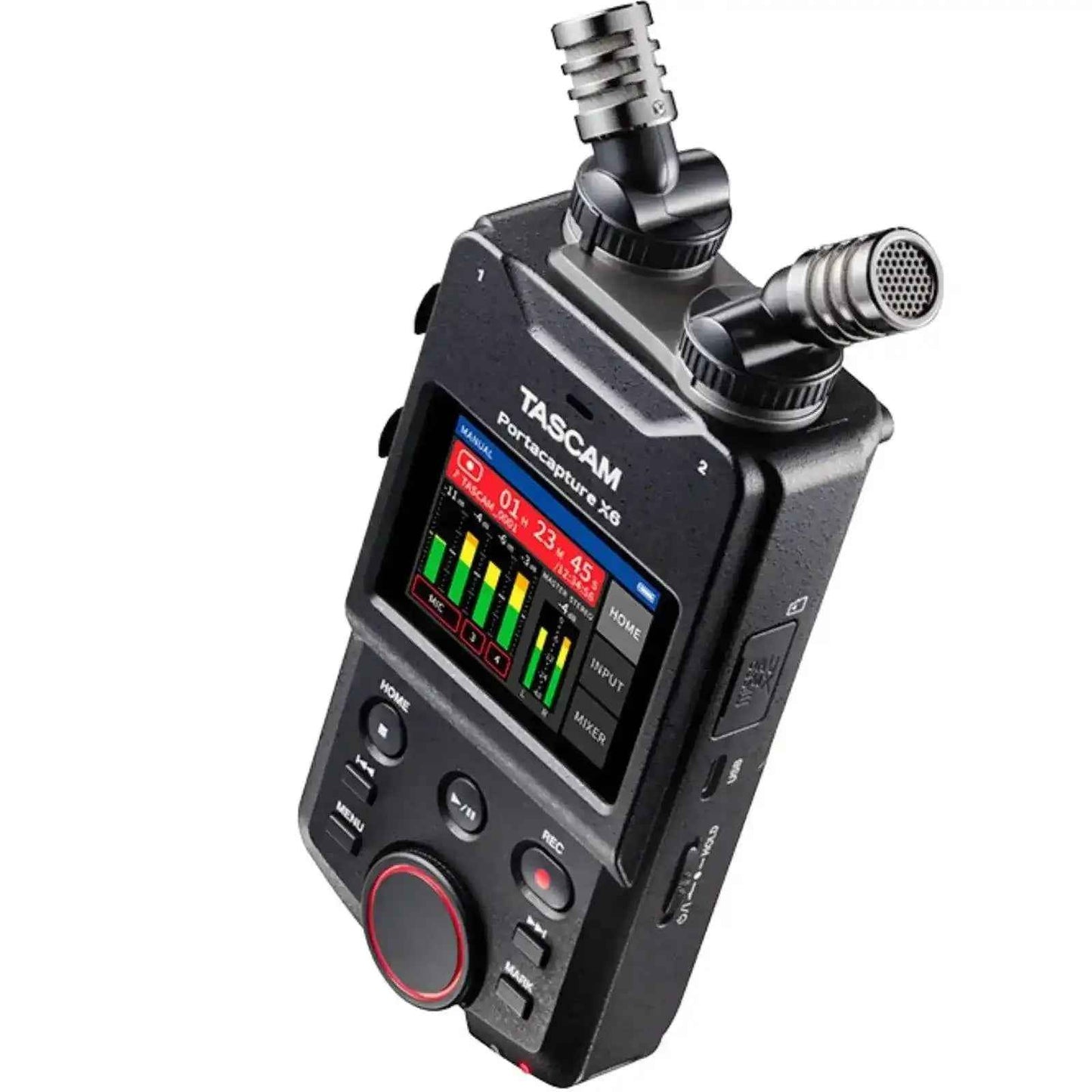

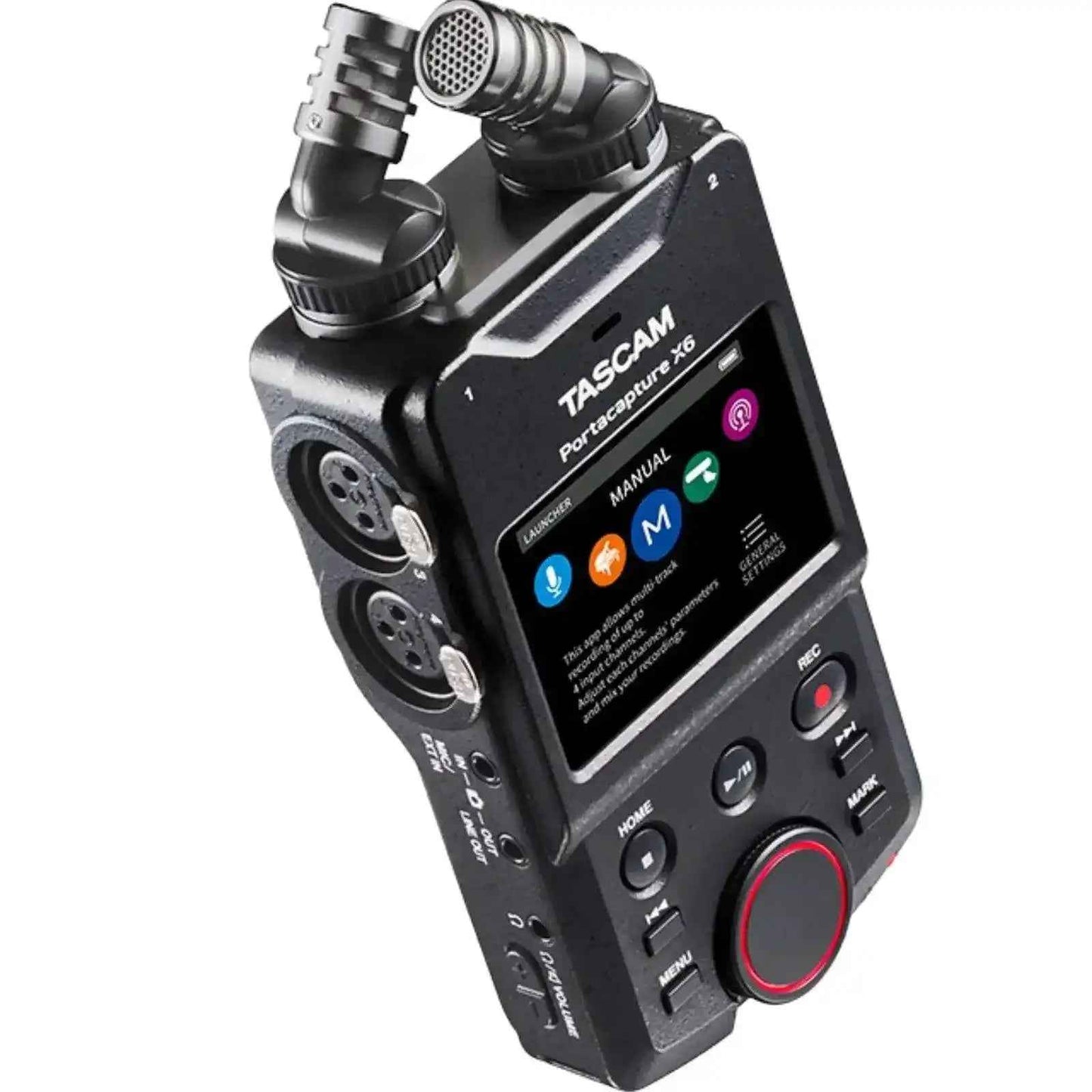

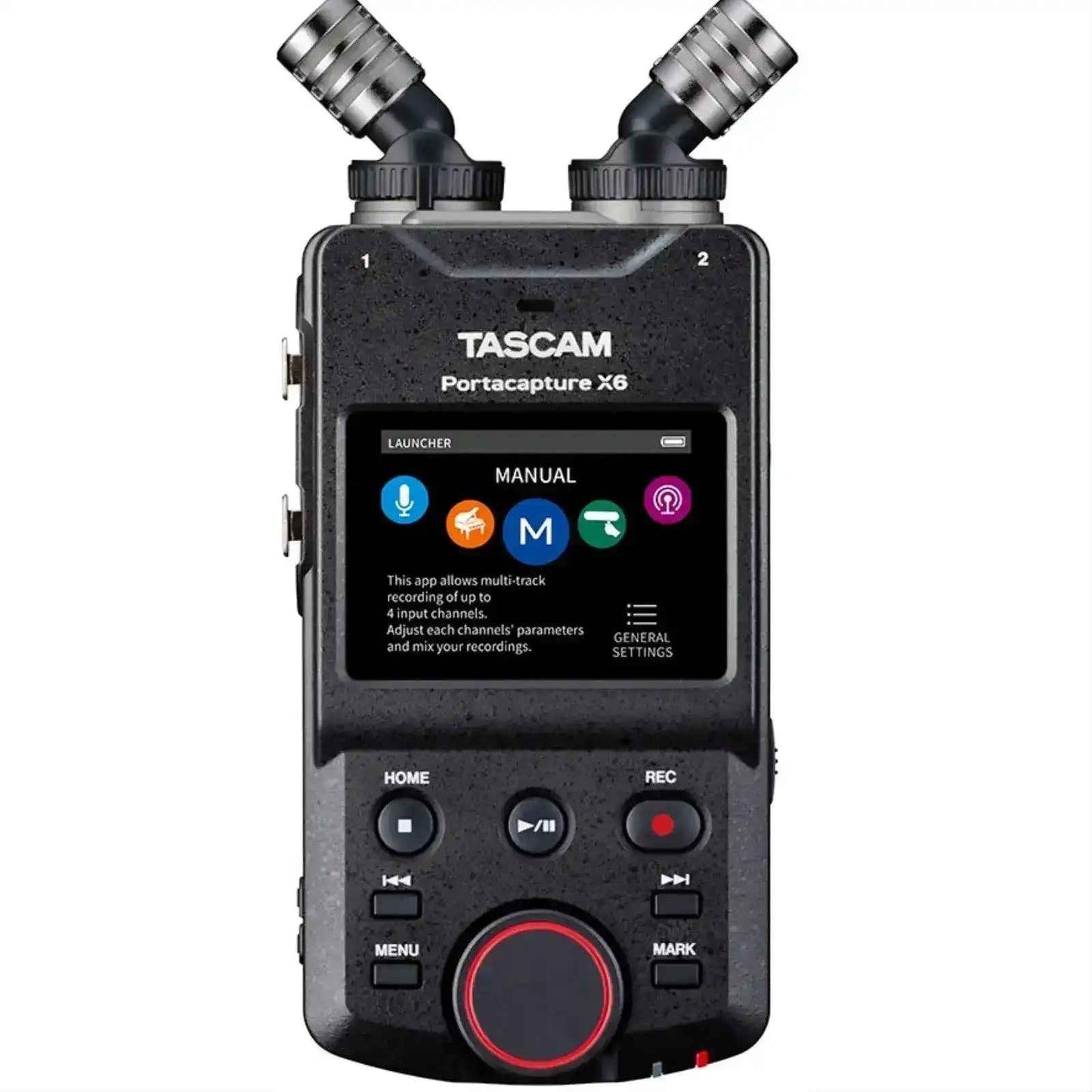

Tascam Portacapture X6 Multitrack Recorder
Item specifics
Basic Info | Type | Audio Recorder |
---|---|---|
Brand Name | Tascam | |
Model Name | Portacapture X6 Multitrack Recorder |
Body | Dimensions | 75 × 174.3 × 37.2 mm |
---|---|---|
Weight
|
365/265g (with/without batteries) |
Recording | Supported Media | microSD cards (64MB - 2GB), microSDHC cards (4GB - 32GB), microSDXC cards (48GB - 512GB) |
---|---|---|
Recording / Playback Formats | WAV (BWF): 44.1k/48k/96kHz, 16/24-bit, 32-bit float MP3: 44.1k/48kHz, 128k/192k/256k/320kbps |
|
No.of Channel | Input channels:4 channels maximum | |
Recording Tracks | 6 tracks maximum (4 tracks, stereo mix) |

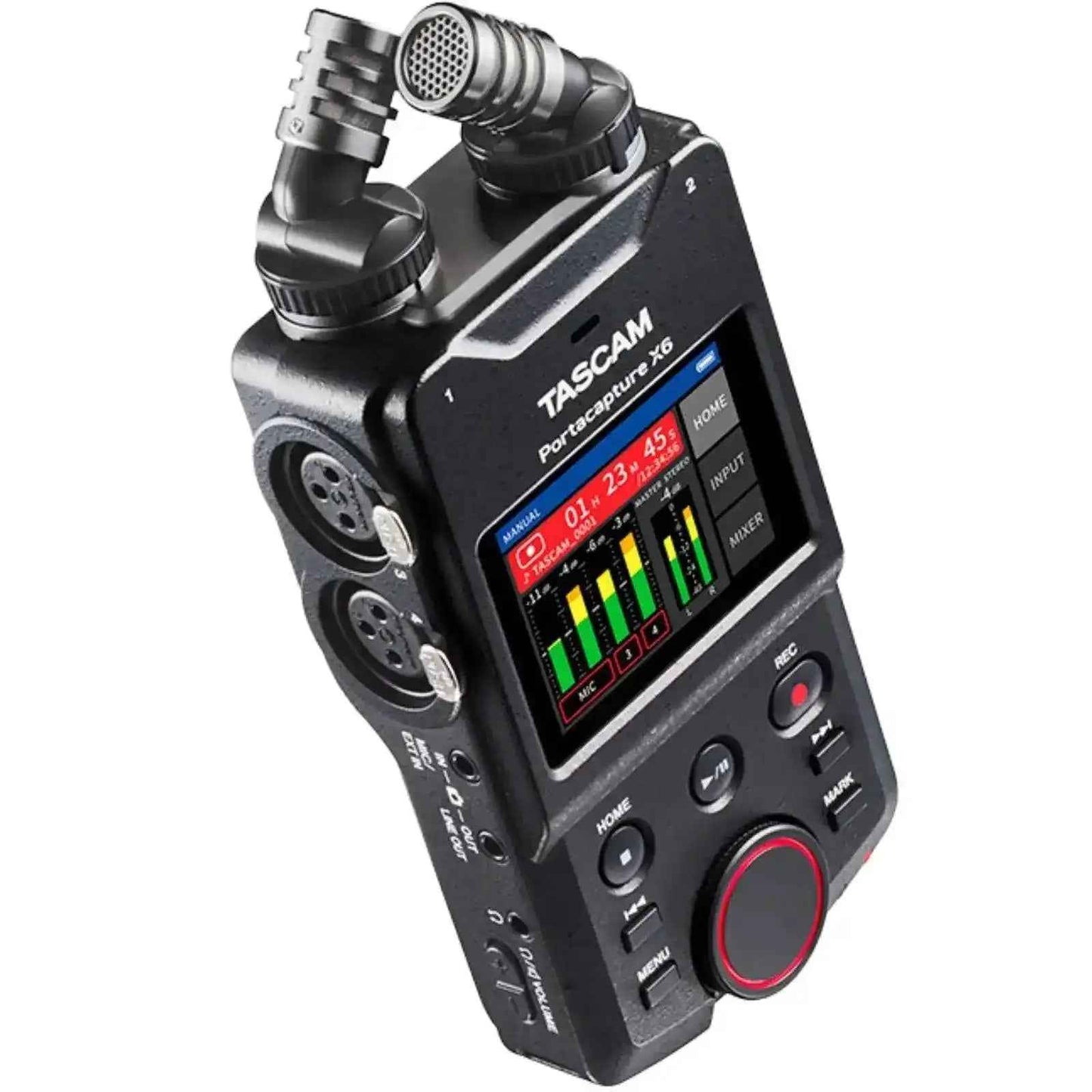

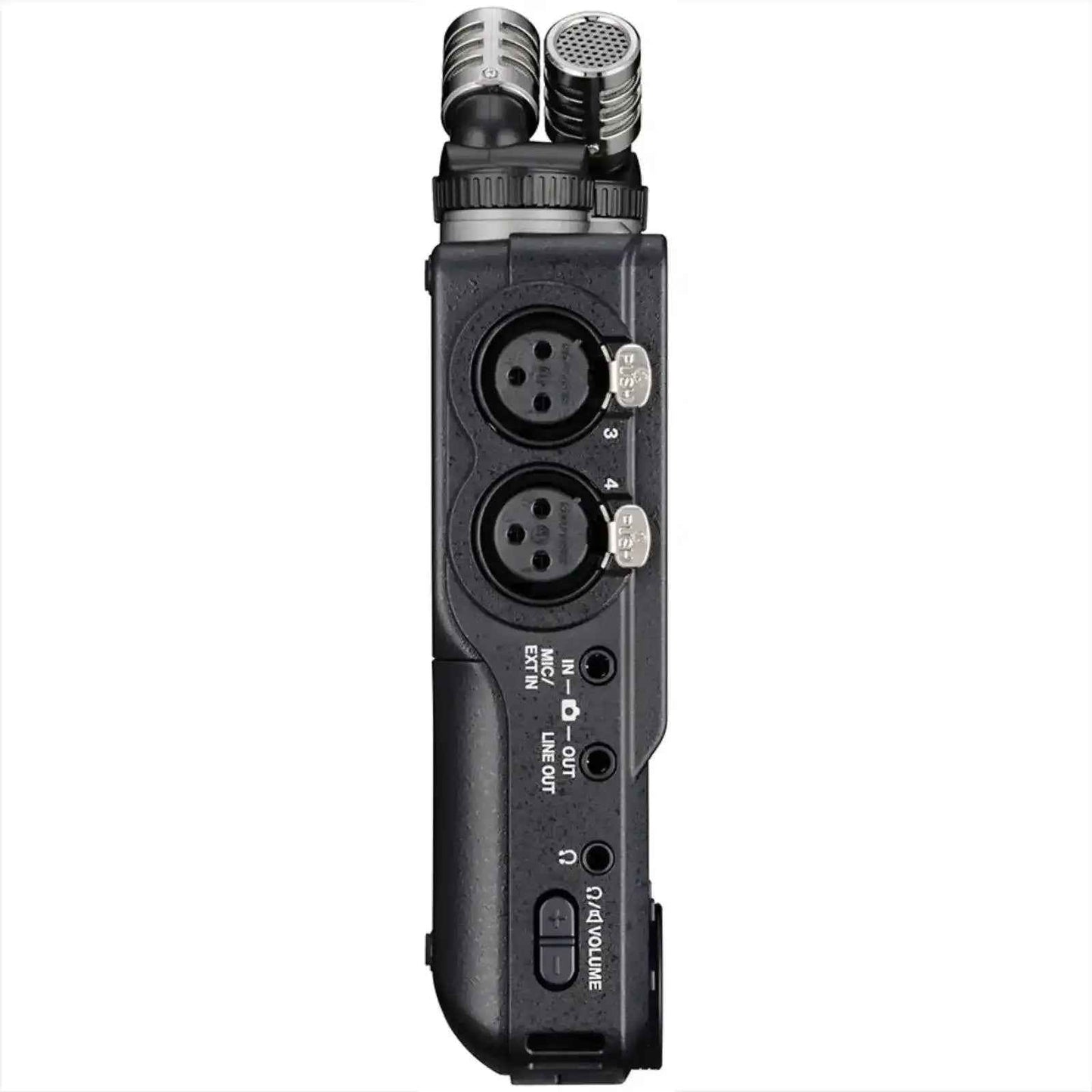

Mic Input | Connectors | XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD) |
---|---|---|
Max. Input | +2dBV | |
Min. Input | -75dBV | |
Input Impedance | 2.2kΩ or higher |
Line Input | Connector | XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD) |
---|---|---|
Max. Input | +24dBu | |
Min. Input | -53dBu | |
Nominal Input | +4dBu(GAIN setting at minimum) | |
Input Impedance | 9kΩ or higher |
Line Input | Connector | 3.5mm (1/8") stereo mini jack |
---|---|---|
Max. Input | 0 dBV | |
Min. Input | -67 dBV | |
Nominal Input | -20 dBV(GAIN setting at minimum) | |
Input Impedance | 10 kΩ or higher (when plug-in power is off ) 1.8 kΩ or higher (when plug-in power is on) |
Line Output | Connector | 3.5mm (1/8") stereo mini jack |
---|---|---|
Max. Output | +6 dBV | |
Nominal Output | -14dBV | |
Output impedance | 210Ω |
Headphone Output | Connector | 3.5mm (1/8") stereo mini jack |
---|---|---|
Max. Output | 45mW + 45mW (THD+N 0.1% or less, into 32 Ω load) | |
Output impedance | 16ohms to 400ohms | |
Built-in Speaker | 0.4 W (mono) |

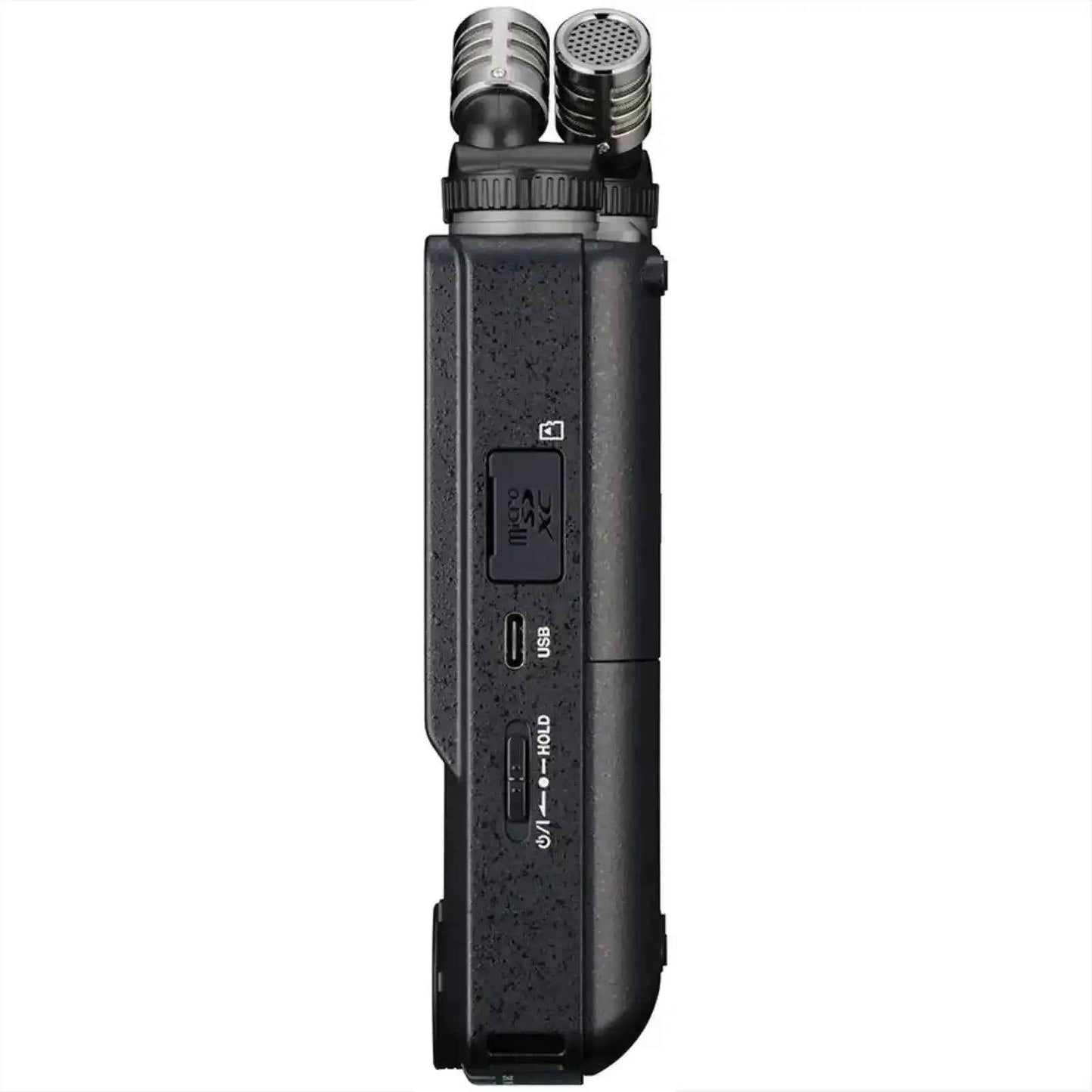

Others | USB | USB Type-C |
---|---|---|
Transfer mode | USB 2.0 Hi-Speed | |
Device classes | mass storage,USB audio 2.0 (USB class compliant) |
USB Audio | Sampling Rate | 44.1, 48, 96 kHz |
---|---|---|
Bit Depth | 24-bit | |
Max. Input | 6 (output from unit) | |
Max. Output | 2 (input to unit) |
Portacapture Control | iOS/iPadOS devices | iOS 16/iPadOS 16,iOS 15/iPadOS 15,iOS 14/iPadOS 14 |
---|---|---|
Android devices | Android 11,Android 10 |
Audio performance | Input jack 3-4 | -125 dBu or less |
---|---|---|
THD | Input jacks 3-4 (LINE IN):0.008% or less Input jacks 3-4 (MIC IN): 0.006% or less |
|
Dynamic Range | 112dB or higher (at 48kHz) 112dB or higher (at 96kHz) |
|
Frequency Response | 20Hz – 20kHz at 48kHz: +0/-0.3dB (JEITA) 20Hz – 40kHz at 96kHz: +0/-0.7dB (JEITA) |
Power | Require | 4 AA batteries (Alkaline, Ni-MH or Lithium-ion) USB bus power from a computer TASCAM PS-P520U AC adapter (sold separately) |
---|---|---|
Consumption | 7.5W (maximum) |
Temperature | Operating Temp. | 0 - 40°C |
---|
Shipping policy
MyMobile uses the services of the following carriers to deliver your products anywhere in Australia.
Shipping Type
Warehouse to Retail shop the express to you ( free )
The order is Sent to our warehouse, there we pack all daily orders in one box and send it via DHL. Once we received the orders in the retail shop we inspect, pack and ship via express post, upload the tracking number. This process normally take about 7 to10 days
DHL Direct
The order is Sent to our warehouse, there we pack and send it via DHL direct uploading the tracking number ,This process takes about 5 to 7 days
Australia Post
This postal service reaches every corner of Australia. We use this service for smaller items shipped from our Australian-based warehouses (ie Regular and Registered Post). If available, tracking of parcels can be performed online (http://auspost.com.au/track/).
DHL
This courier service provides expedited deliveries to the majority of areas within Australia. We use this service for parcels shipped from our international-based warehouses (ie International Shipping). A signature is required for deliveries and must be to a physical street address only (ie No PO Boxes). Tracking of parcels can be performed online (http://www.dhl.com.au/en/express/tracking.html).
Fedex
This courier service provides expedited deliveries to the majority of areas within Australia. We use this service for parcels shipped from our international-based warehouses (ie International Shipping). A signature is required for deliveries and must be to a physical street address only (ie No PO Boxes). Tracking of parcels can be performed online (http://www.fedex.com/Tracking?cntry_code=au).
Shipping Terms and Conditions:
- All shipping fees listed are non-negotiable and non-refundable.
- All delivery times are given as a guide only and are in no way guaranteed by MyMobile or the carrier.
- Any failed deliveries due to inaccurate or incomplete shipping details provided by the buyer or unavailability of the receiver will incur a $25.00 re-delivery fee.
- Once an item has been shipped, it is the buyer’s responsibility to liaise with the shipping carrier in relation to the delivery of their parcel.
- Once a parcel is accepted and signed for, it will be deemed to be delivered and will no longer be available to claimed under transit insurance.
- If a parcel is damaged in transit, the receiver must reject the delivery and advise MyMobile and the shipping carrier immediately.
- If a parcel is lost in transit, the buyer must open an investigation with the shipping carrier.
- MyMobile will only arrange replacement of the order once the investigation has been completed and providing the buyer selected transit insurance at the time of the initial purchase.
Tascam Portacapture X6 Multitrack Recorder is a compact and portable audio recording device designed for capturing high-quality audio in various settings. Whether for musicians, podcasters, journalists, or content creators, this recorder offers versatile recording options with ease of use.
-
Compact Design: With dimensions of 75 × 174.3 × 37.2 mm and weighing only 365g (with batteries), the Portacapture X6 is highly portable and can be easily carried in a bag or backpack, making it ideal for on-the-go recording.
-
Recording Flexibility: The recorder supports microSD cards ranging from 64MB to 512GB, accommodating WAV (BWF) and MP3 formats at various sampling frequencies (44.1k/48k/96kHz) and bit depths (16/24-bit, 32-bit float). It can record up to 6 tracks simultaneously, with 4 input channels and a stereo mix.
-
Input Connectivity: The Portacapture X6 features XLR and stereo mini jack input connectors for microphones, instruments, and line-level sources. It offers versatile input options with adjustable gain settings to accommodate different audio sources and signal levels.
-
Output Options: It provides line output, headphone output, and a built-in speaker for monitoring purposes. The headphone output delivers sufficient power (45mW + 45mW) to drive headphones with impedance ranging from 16ohms to 400ohms.
-
USB Connectivity: Equipped with a USB Type-C port, the recorder supports USB 2.0 Hi-Speed transfer mode and functions as a mass storage device and USB audio interface. It allows for easy file transfer to a computer and direct recording into digital audio workstations (DAWs).
The Tascam Portacapture X6 Multitrack Recorder offers a compact, portable, and feature-rich solution for recording audio in a wide range of applications. With its versatile recording capabilities, flexible connectivity options, intuitive controls, and high-quality audio performance, it is an ideal choice for musicians, podcasters, journalists, and content creators seeking a reliable recording solution on the go.
